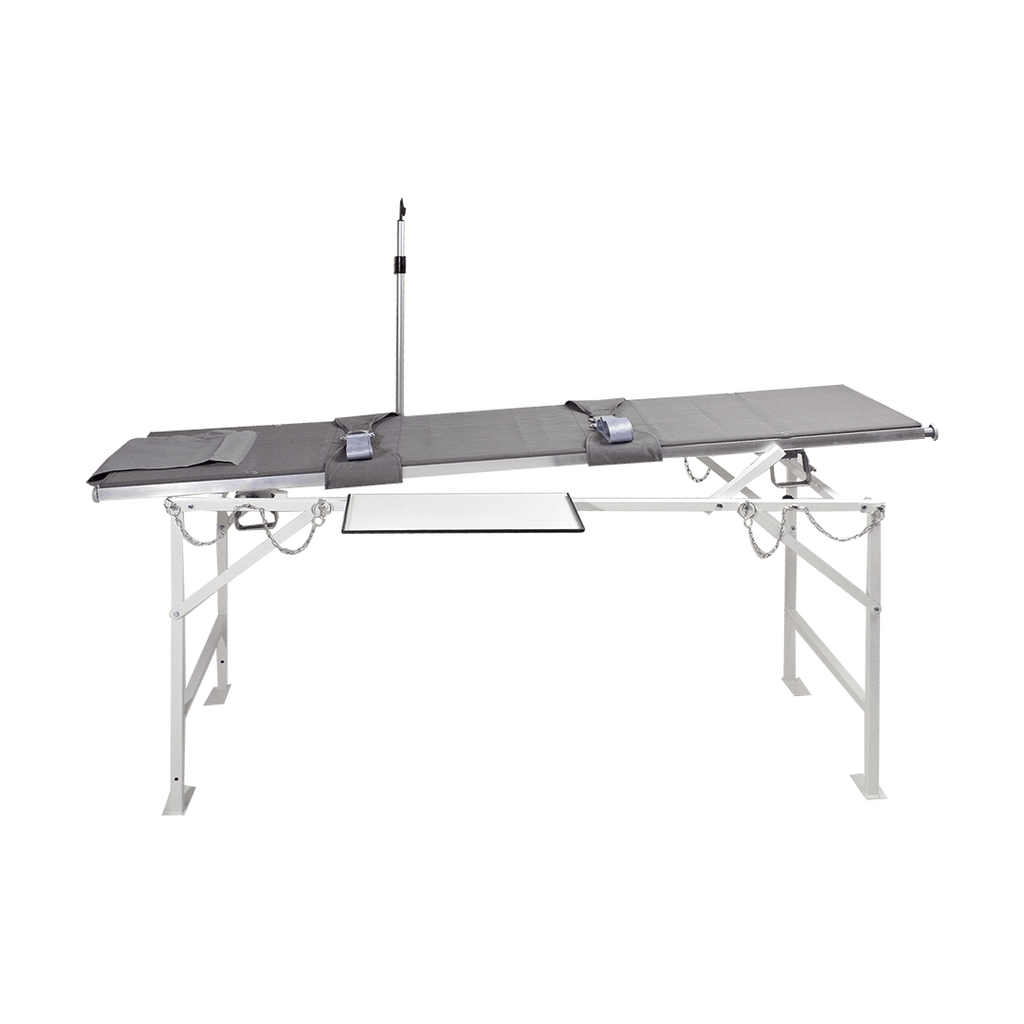

SÖHNGEN® FastRack support stand for stretchers.
Suitable for stretchers according to DIN 13 024. Simple, self-explanatory assembly, no loose parts, ready for use in 2 minutes.
Dimensions: Ready for use, approximately 1,610 x 680 mm, 760 mm high. When folded compactly, only approximately 80 mm high. Low weight (17 kg including
storage), easy to transport even by one person.
The frame construction is made of square steel tubes, sturdy and durable, and electrostatically powder-coated in white. It features two screw elements for securing the stretcher to the sides and a self-locking, elevating folding bracket, which allows for shock positioning in seconds with just one hand movement, even when the stretcher is lying on its side.
The support stand can be further reinforced with four foldable stabilizers. This is also possible when the stretcher is on the stand. When not in use, the stabilizers rest securely on the legs of the support stand and are fixed in place.
A sturdy shelf made of 1.5 mm thick sheet steel (approx. 480 x 290 mm) offers space for things like bandages or surgical instruments. When not in use, the shelf can be conveniently stored on one leg of the support stand. When needed, it can be flexibly attached to the support stand's longitudinal struts on either the right or left side using a clamping mechanism. Thanks to its angled, coated edge, the shelf can also be used as a writing surface for two sheets of A4 paper or an entire folder.
Included in delivery is a robust storage and transport bag made of coated high-tenacity polyester fabric, color: signal orange. The transport bag is extremely durable and particularly easy to care for. It features a zipper on three sides, a comfortable carrying handle, and an adjustable shoulder strap.
