| Cooling: |
air-cooled
|
| Maximum power: |
6.3 kW
|
| Oil capacity: |
1.65 L
|
| Continuous power output: |
6 kW
|
| Weight [kg]: |
168
|
| Fuel type: |
Diesel
|
| Engine power: |
12 hp
|
| Speed: |
3000 rpm
|
| Fuel consumption at 50% load: |
1.3
|
| Voltage / Volts: |
50Hz / 230V
|
| Volume: |
72 dB (A) (7M)
|
| Connections: |
1x socket (230 V ; 16 A) , 1x socket (230 V ; 32 A)
|
| ATS function: |
Yes
|
| Voltage regulation: |
AVR (1.5% tolerance)
|
| Tank capacity: |
14 liters
|
| Starter type: |
Electric starter
|
The device can be switched on with an electric starter and can then be operated with 230V.
Even devices with sensitive electronics can be operated with the IT-8000D, as the generated voltage is readjusted by the AVR voltage regulation to have a maximum deviation of 1.5%.
The ATS connection allows an ATS box to be connected, which means the generator can be started automatically in the event of a power failure.
Max. power (230 V):
6.3 kW
Continuous power output (230 V):
6 kW
Display:
LED (kW, V, A, Hz, hours)
Electricity:
approx. 26 A
Connections:
1x 16 A / 230 V
1x 32 A / 230 V
1x ATS interface
Battery:
Starter battery included
Noise level at 7 meters:
72 dB(A)
Fuel consumption at 50% load:
1.3 L/hour
Motor:
4-stroke diesel engine
Engine displacement:
498 cm³
Starter type:
Electrically
Dimensions:
920 x 520 x 760 mm
Dry weight:
167 kg
Scope of delivery:

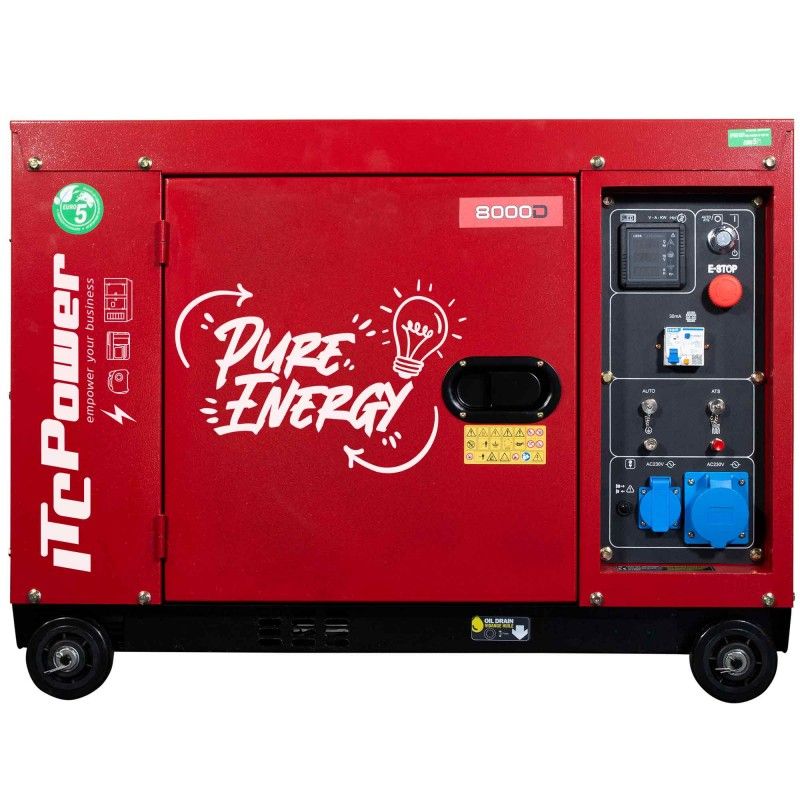

1x Special Edition KOMPAK / ITC POWER 6300 Watt Diesel Generator 8000D
1x Instruction manual
1x battery
