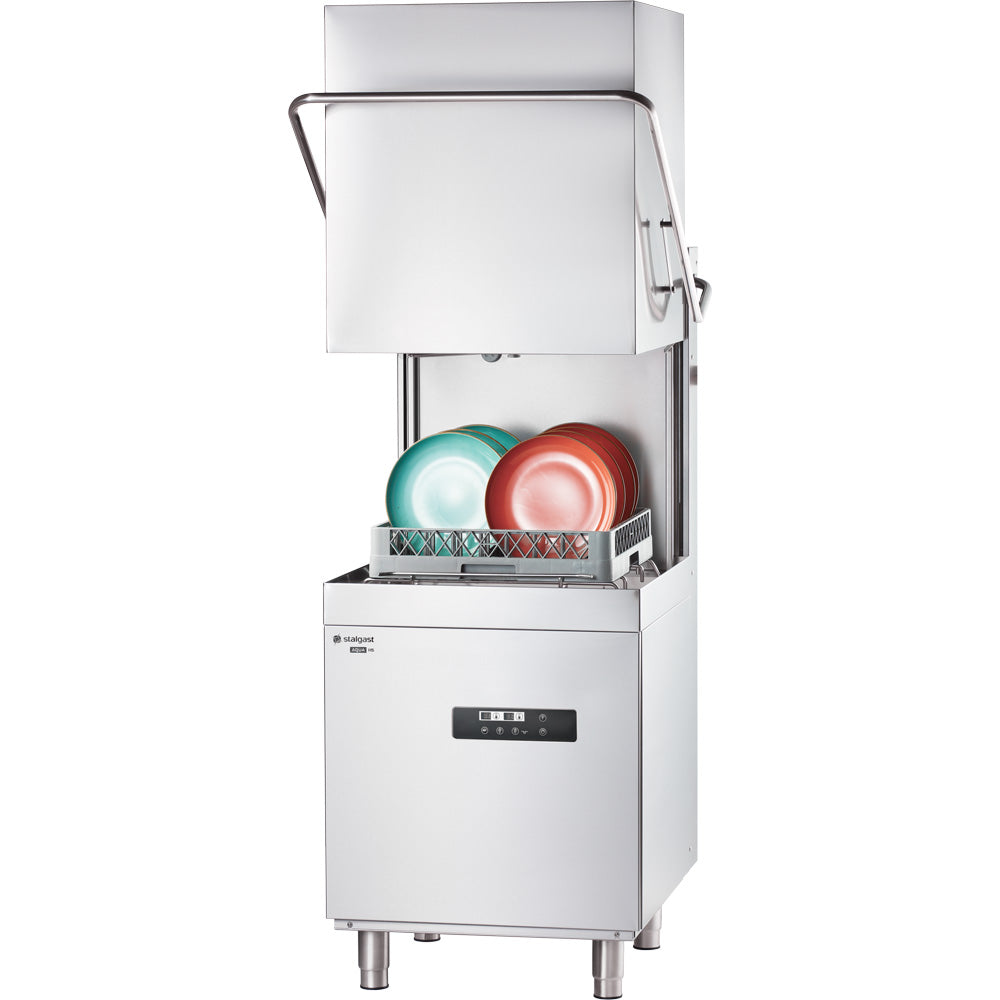

The AQUA H5 hood-type dishwasher is always ready for use and reliably cleans your dishes with consistently high-quality results, meeting the most demanding requirements. The robust stainless steel housing is easy to clean and integrates seamlessly into any kitchen. The hood is easy to operate using the sturdy round handle – even with gloves and with one hand. The included dish racks sit securely on the stable rack guides, and side supports prevent slippage. The user-friendly control panel allows you to select the wash program and monitor the boiler and heating element status via the digital display. The wash program starts automatically after the hood is closed. Lightly soiled dishes are cleaned in 120 seconds, as are normally soiled dishes. For heavily soiled dishes, the intensive 180-second program is the ideal solution. Two stainless steel wash arms and two stainless steel rinse arms ensure even cleaning, supported by rotating movements that meet the latest technical standards. The integrated dosing pumps dispense detergent and rinse aid sparingly and precisely as needed. The rinse pump increases the water pressure, maximizing cleaning results. The wash water is approximately 65°C and is replenished with fresh water after each cycle – the temperature remains constant, and consumption is low. The final rinse at approximately 90°C reliably kills germs. After use, the drain pump automatically empties the water tank, and the filter screen can be easily removed. The generous loading height facilitates access to the rounded, seamless interior, enabling quick and easy cleaning. We recommend having the dishwasher installed by a professional.
Product features
- Housing and interior made of high-quality stainless steel
- Heating element with increased corrosion and heat resistance thanks to Incoloy® 800, a particularly resistant special alloy
- including drain pump
- actively pumps the dirty water out of the machine
- enables connection to higher-level drains (e.g. sinks, wall connections)
- important for low installations or lack of slope
- including rinse aid pump
- optimally increases water pressure during the final rinse
- including detergent and rinse aid dosing pump
- Automatic, demand-based dosing of detergent and rinse aid
- Avoiding over- or underdosing protects the environment and reduces costs.
- with suction hose for hanging in external cleaner and rinse aid canisters
- including surface sieve
- protects against contamination
- digital control
- 3 washing cycles: 90s, 120s, 180s
- Temperature display for boiler and chamber temperature
- pressed, rounded rinsing chamber
- Two washing/rinsing arms each at the top and bottom (stainless steel)
- Height-adjustable feet (+ 45 mm)
- including plate, universal, and cutlery washing baskets and cutlery holders
Dimensions & Performance
- Maximum insertion height: 415 mm
- Basket dimensions: 500 x 500 mm
- Chamber volume: 20 L
- Boiler volume: 9.5 L
- Output: 40 baskets/hour
- Water consumption: 2.5 L/cycle
- Voltage: 400 V
- Inlet: 3/4"
Application
- For a flawless cleaning result, we recommend the use of professional cleaning chemicals.
- Water softener recommended for use from 6 °dH
- Areas of application include, for example, hotels, restaurants, catering services, and chain restaurants.
