ST S1100 RICH CHIM RAIL Classic trapeze wall hood
with powerful engine
equipment
• Push-button control via soft touch button
• 3 power levels + booster
• 2 LED lights
• 3 x aluminum grease filters (washable)
• Railing in chrome colors
• Engine
Fan power (according to EN 61951)
Max. fan capacity: 644.6 m³/h
Noise levels (according to EN 60704)
min. 51 dB (A) - max. 65 dB (A)
Maximum pressure: 92 Pa
Energy Efficiency (EU Directive 65/2014)
Energy efficiency class A / 51.8
Annual consumption: 56 Kw/h / year
Fluid Dynamic Efficiency A / 30.1
Lighting efficiency A / 56
Grease filter efficiency B / 86.4
Noise levels 65 dB
Power consumption in standby mode: 0.29 W
• Time extension factor: 0.9
• Air flow at point of maximum efficiency: 424.3 m³/h
• Air pressure at the point of maximum efficiency: 92 Pa
• Electrical input power at max. efficiency: 162.7 W
• Rated power lighting system: 3 W
• Average illuminance on the cooking surface: 110 lux
Optional accessories
• Activated carbon filter article no. 80000785
Connection data
• Connected load: 243 W
• Voltage: 220 - 240 V/ 50 Hz

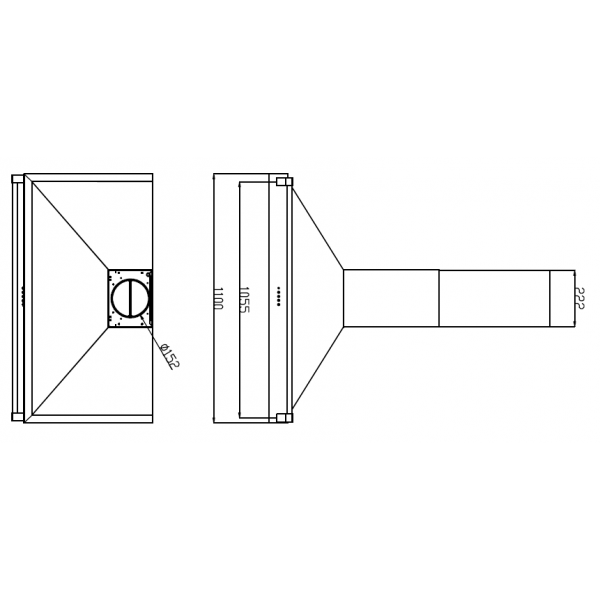

• Exhaust air nozzle: Ø 150 mm / Ø 120 mm
• Cable without plug
Logistical data
Weight gross/net: 17.7 kg/14.4 kg
Packaging dimensions HBT: 640*1155*350 mm
