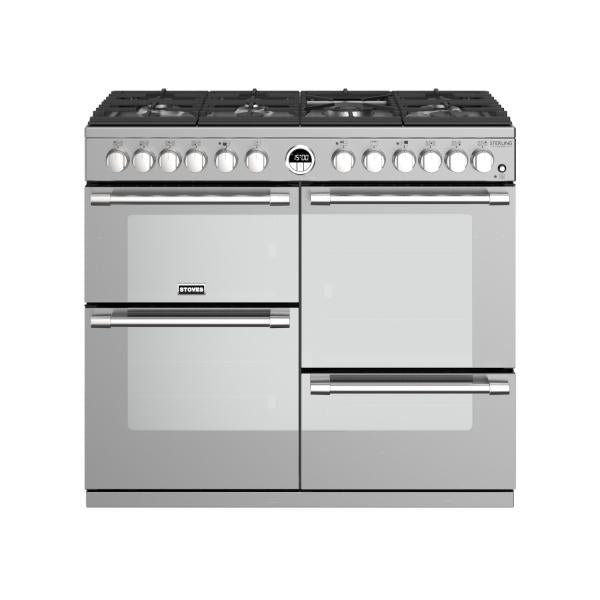

Range cooker 100 cm wide with 7 burner gas hob and
4 electric ovens / multifunctional main oven - 9 functions

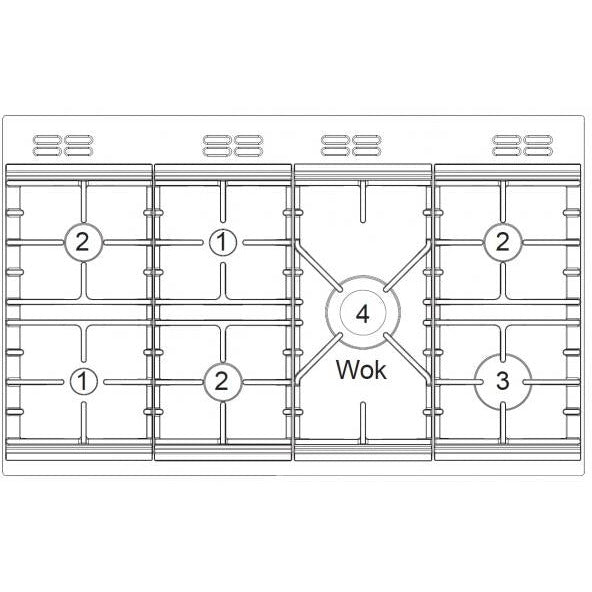

Features 7 burner gas hob
• 1 x PowerWok™ 4.0 kW
• 1 x powerful burner 3.0 kW
• 3 x standard burners 2.0 kW
• 2 x small burners 1.0 kW
• 4 cast iron PanGlide™ pan supports

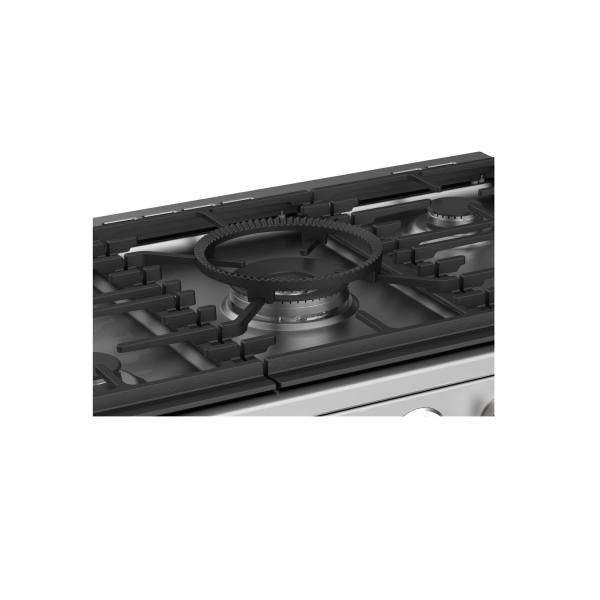

• 1 cast iron wok ring
• 1 cast iron grill plate
• Electric one-hand ignition for all burners
• Thermoelectric ignition protection
Main oven 54 l (bottom left)
• Maxi-Clock™ LED Touch Control Timer (white)
• 11 functions: defrosting, yeast dough, hot air,
Top & bottom heat, top heat, bottom heat, fan with
Bottom heat, pizza setting, circulating air, fan with grill, grill
• With slow cooker and keep warm function
• Excellent heat distribution thanks to Equiflow™ technology
• Side rails with 6 shelves
• Height-adjustable Pro-Trac™ telescopic full extension
Features Maxi-Grill™ Oven 31 l (top left)
• 4 functions: top & bottom heat, Maxi-Grill™ level 1 - 3
• Side rails with 2 shelves
• Height-adjustable Pro-Trac™ telescopic full extension
Equipment: 57 l convection oven (top right)
• Convection oven
• With yeast dough setting, slow cooker and keep warm function
• Excellent heat distribution thanks to Equiflow™ technology
• Side rails with 6 shelves
• Height-adjustable Pro-Trac™ telescopic full extension
Slowcook oven 37 l (bottom right)
• Slow cook oven with warming and plate warming function
Description
• Superstructure and baking chambers enamelled black
with special Easy Clean Pristine Enamel®
• Oven doors with mirrored glass panoramic windows
• Height-adjustable feet
• Transport rollers at the rear of the device
• Case cooling
• Oven lighting for main and convection oven
Connection data
• Gas connection value 15.0 kW
• Gas connection rear right 1/2" BSP Female
• Set to natural gas 20 mbar
• Can be converted to liquid gas
• Electrical connection value 7.46 kW
• Recommended connection 220-240/400V 3N ~ 50Hz
• Cooker connection box
Accessories included in delivery
• 2 baking trays with 2 insert racks and 1 handle
• 4 grill racks
• 1 chicken grill with aroma pot
• 1 set of kebab skewers with holder
• Telescopic base panel (2 parts)
Logistical data
Weight gross/net 97.4 / 90.4 kg
Packaging dimensions HBT 1,045 x 1,130 x 740 mm

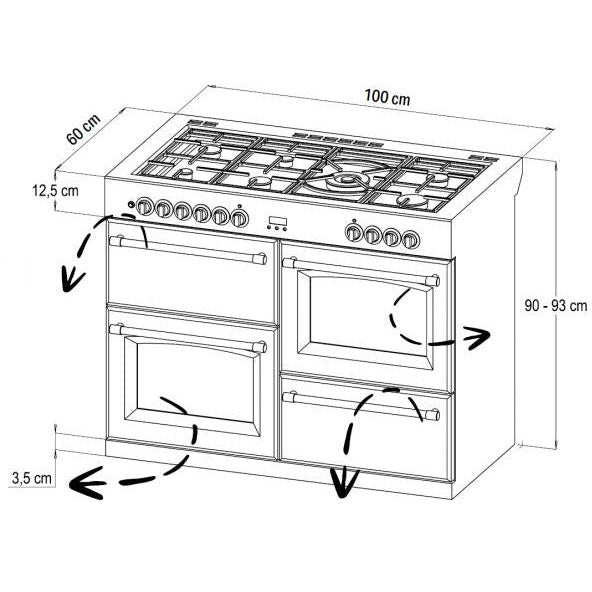

Device dimensions HBT 900-930x996x600 mm
