Description

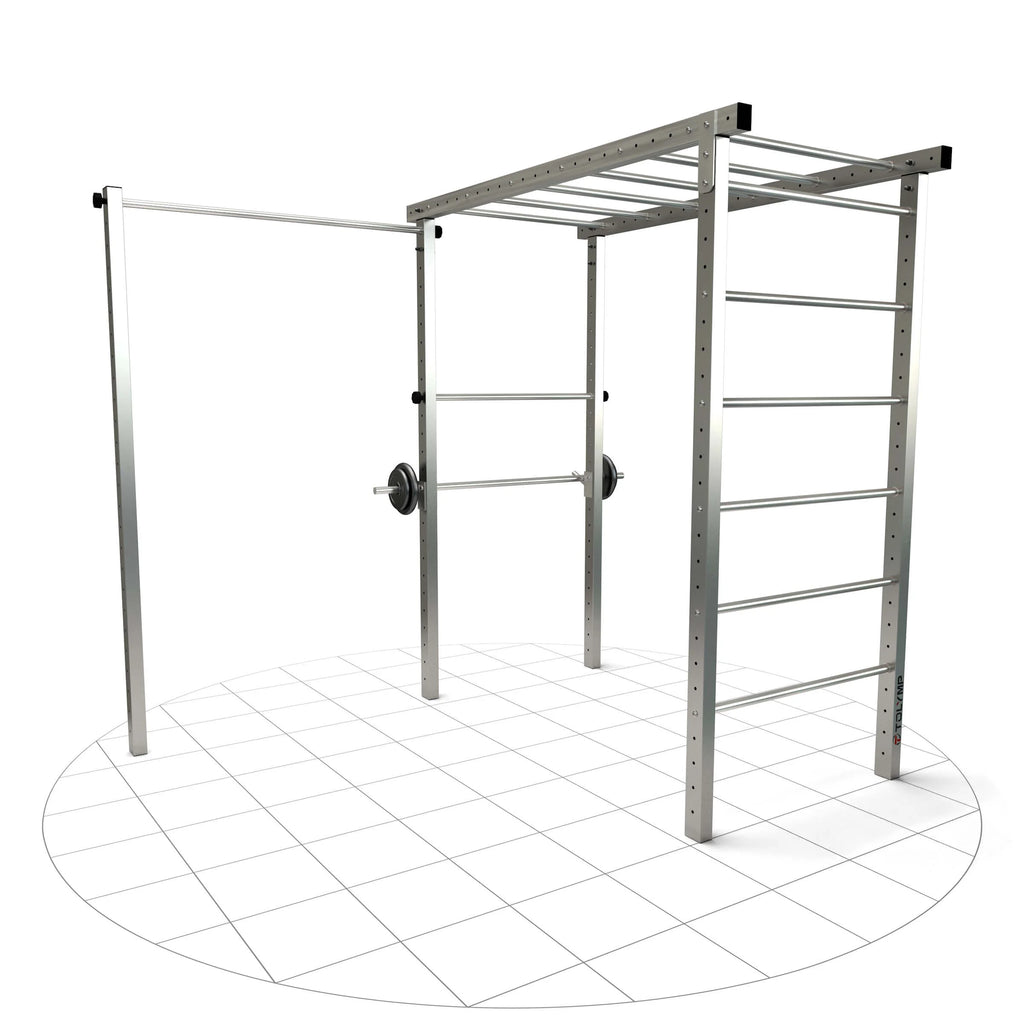

An entry-level station specifically for outdoor fitness training: Two pull-up bars, ladder, monkey bar and a barbell holder (available as an accessory)
An outdoor gym with minimal equipment and a focus on the essentials, yet still versatile. It offers a variety of adjustment options and uses. It can be expanded and upgraded at any time.
Expandable with high-quality swing, details can be found under accessories
Stable, durable and maintenance-free design, made entirely of V2A stainless steel.
Optionally available with extended hanging ladder in 298 cm and 8 rungs

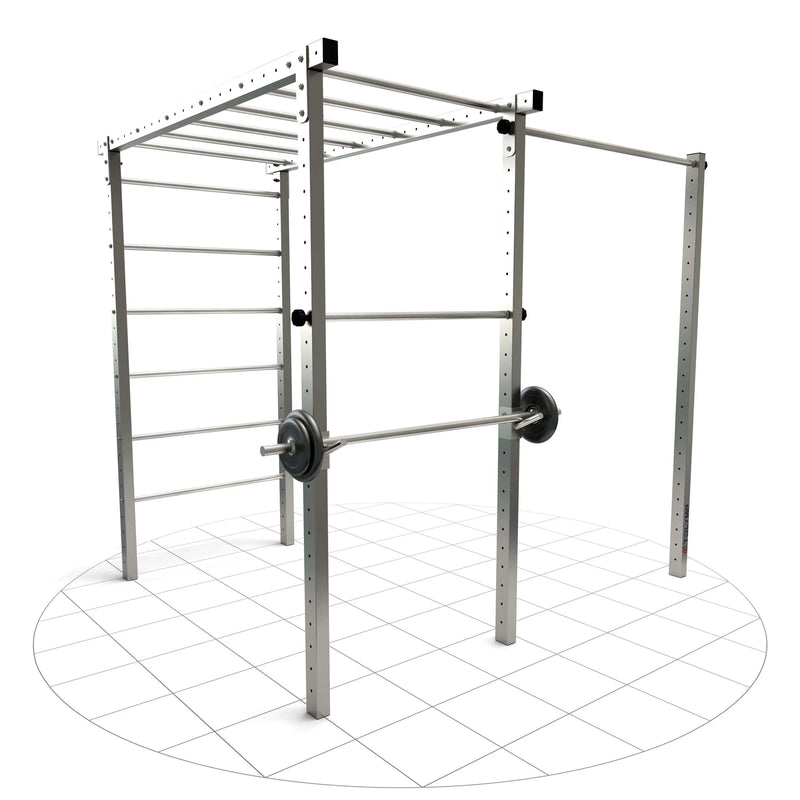

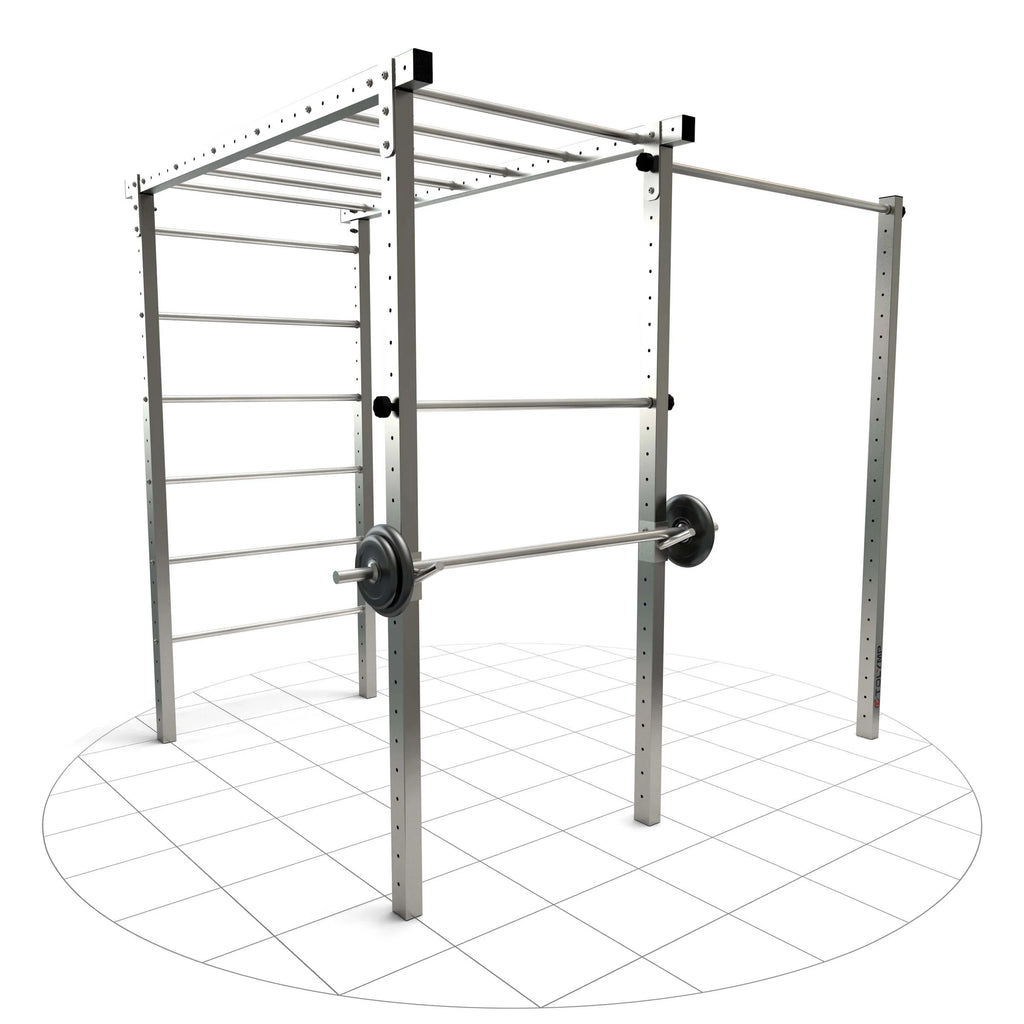

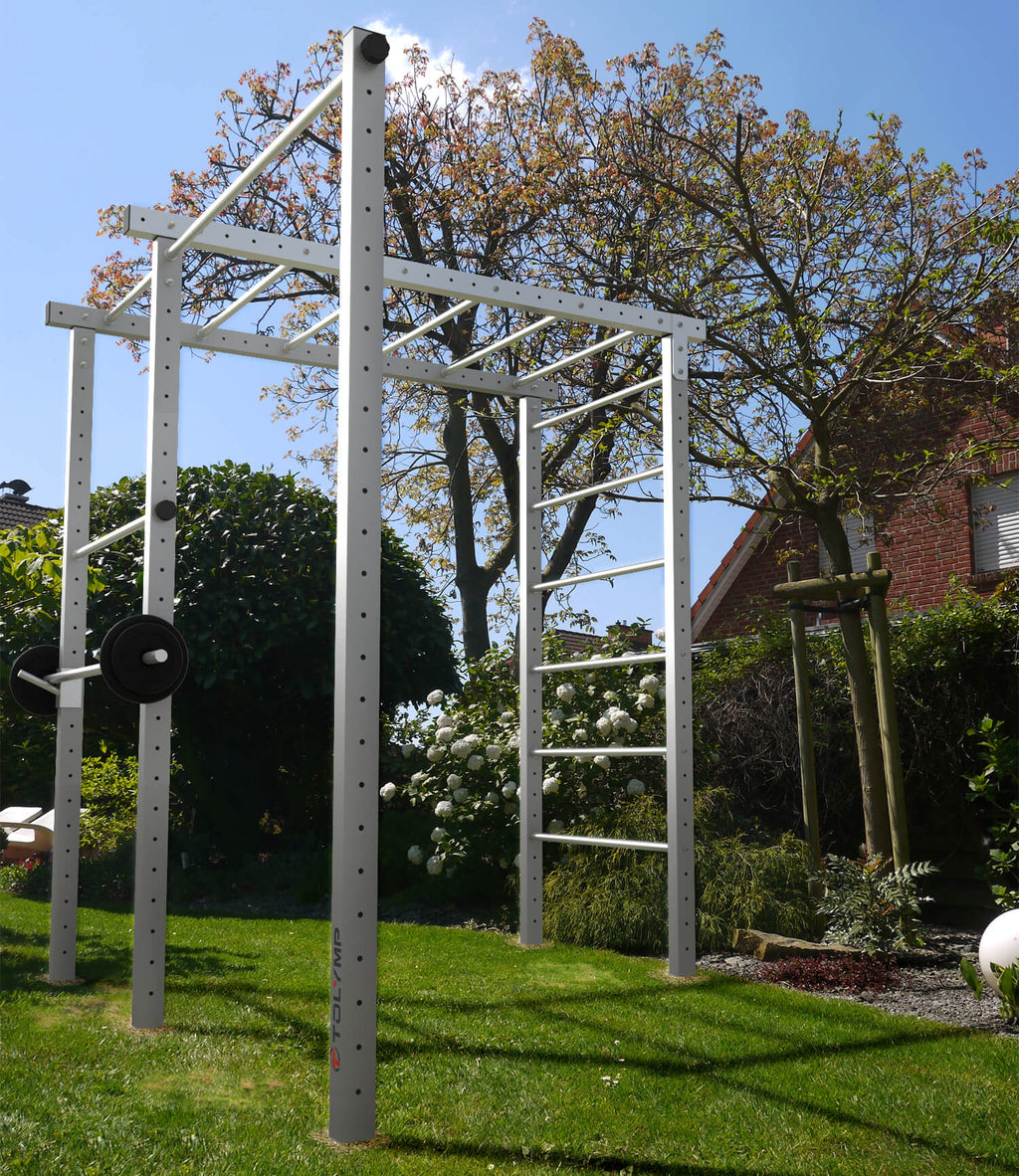

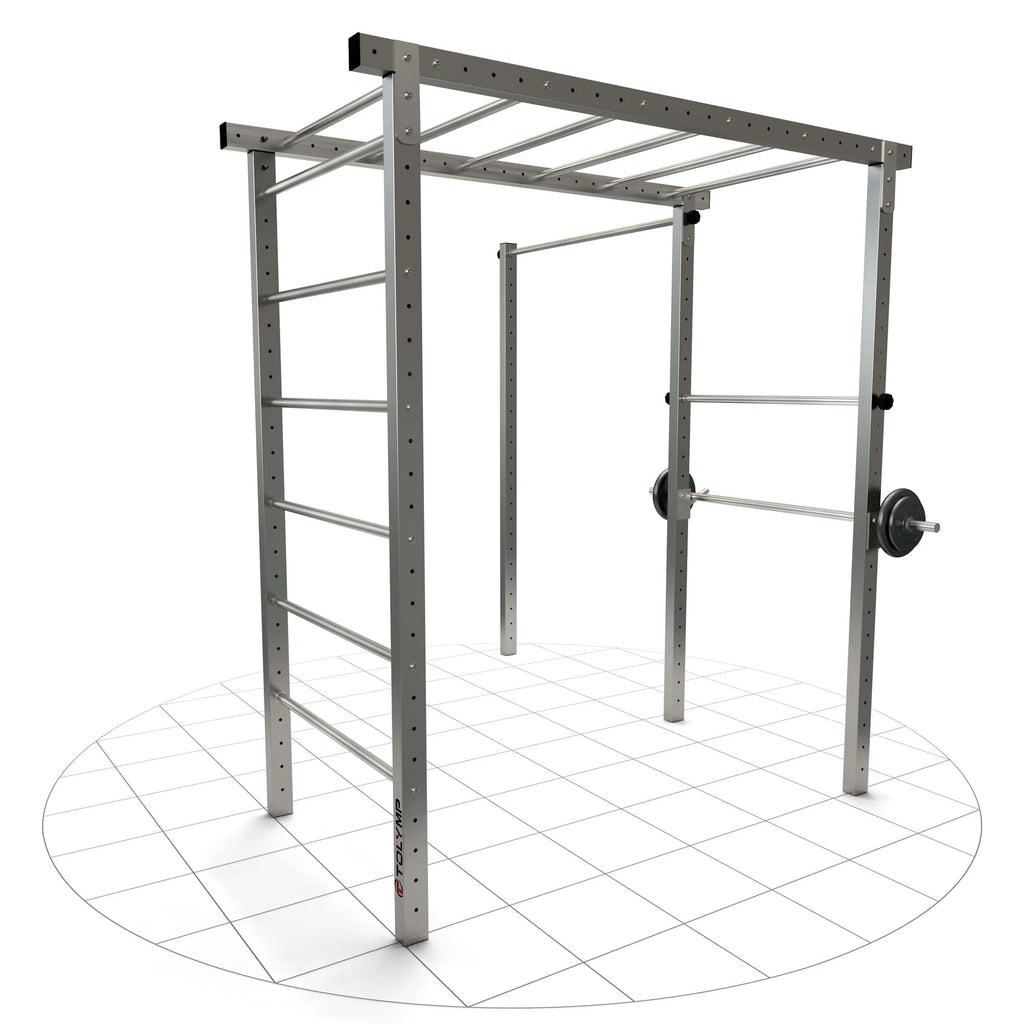

Our starting model TOLYMP Cross Basic, which can be modularly expanded at any time
- The monkey bar is 100 cm wide, 235 cm long and has 6 rungs, all of which are individually adjustable (optionally also available in a length of 298 cm with 8 rungs).

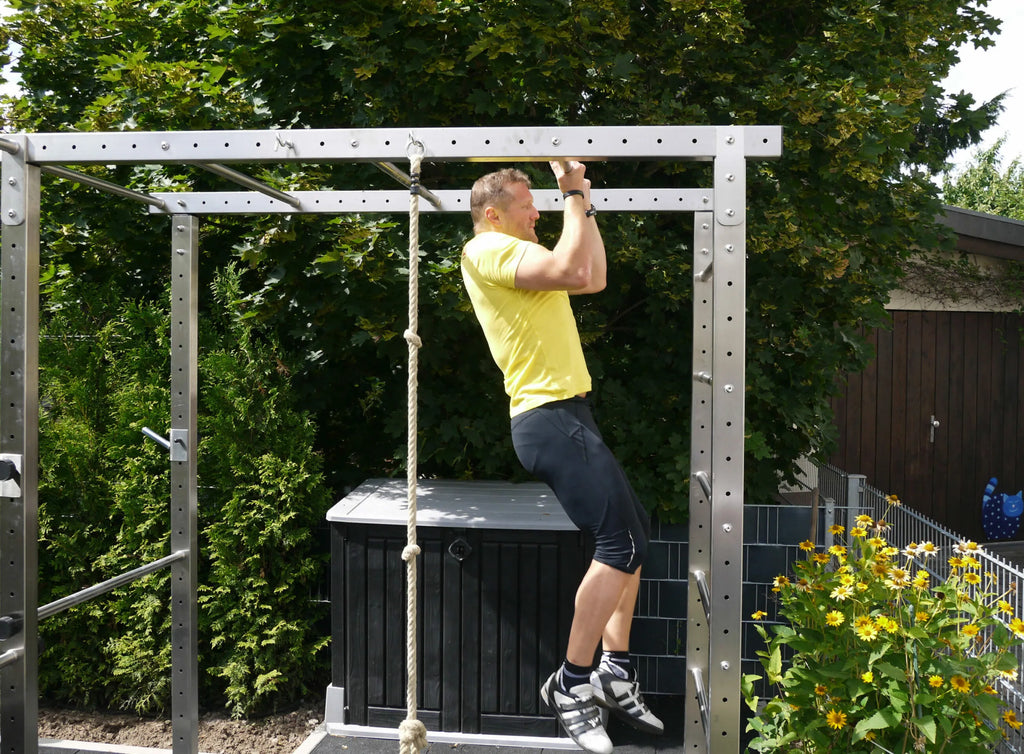

Numerous extensions can be used here: sling trainers, bands, ropes, even a children's swing can be easily attached here (see photos). - The pull-up bar can be adjusted in 25 steps from 15 cm to 240 cm.
- The vertical rung ladder has 6 rungs that you can mount individually in 9cm grid size

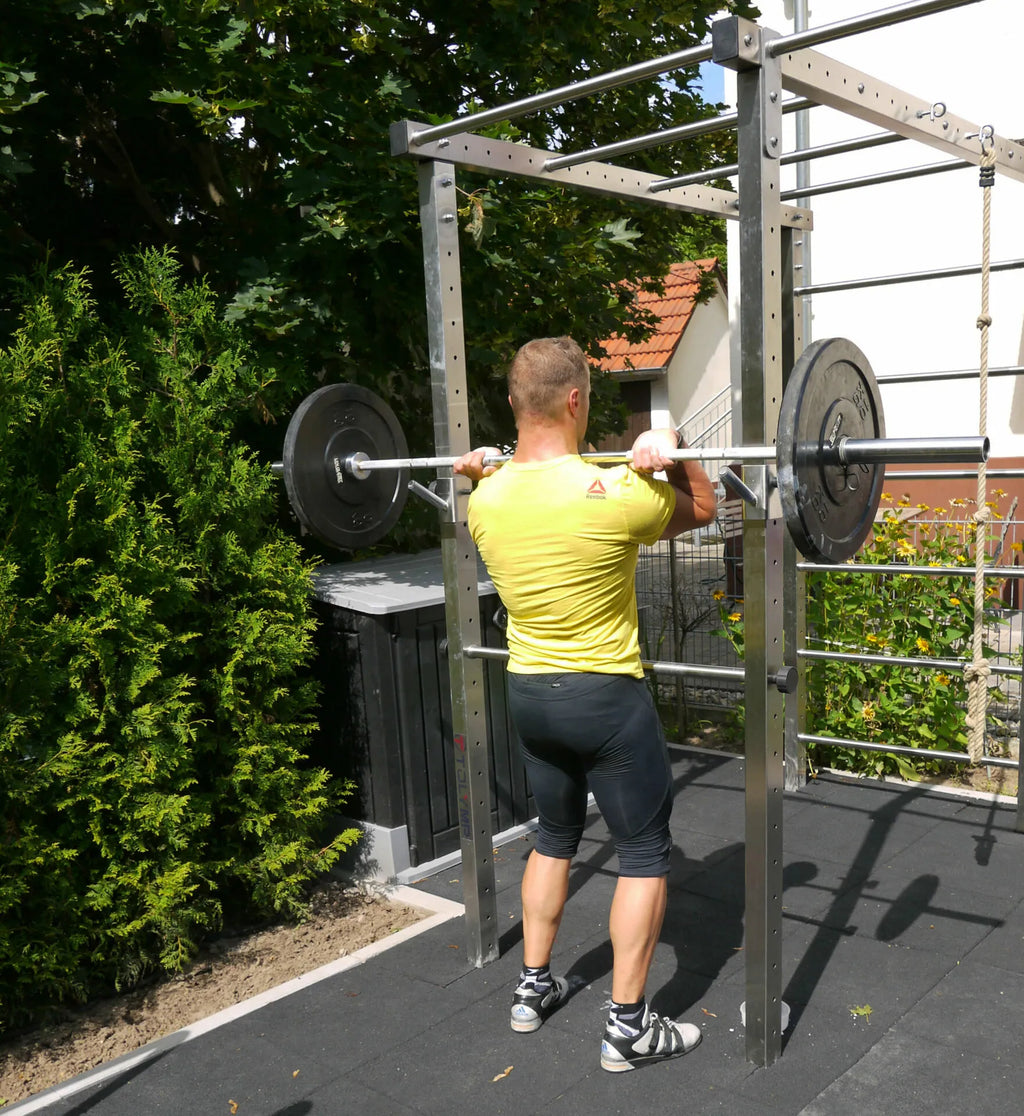

The pictured Barbell holder is not included in the scope of delivery and is available as a product option.
Sturdy construction, made entirely of V2A stainless steel DIN 1.4301.
Our outdoor gym products are characterized by the use of high-quality materials and professionally executed, high-quality workmanship.
The material is completely machine-ground and all welds are cleanly executed.
We offer a 10-year guarantee on welds and rust-free surfaces.
The stainless steel components
Our products are characterized by the use of high-quality materials and professional, high-quality workmanship. The material is completely machine-ground, and all welds are cleanly executed.
The dimensions of the posts are 80 x 60 mm, the wall thickness is 3 mm (reinforced version).
Adjusting the gymnastic bars
Design of the two pull-up bars
The gymnastic bars are attached and the height is adjusted using two M12 star grip screws.
For this purpose, the gymnastic bars feature a CNC-milled turned part at both ends, each equipped with an M12 thread. Additionally, the two contact surfaces facing the upright are knurled to effectively prevent the bars from spinning.
The height of the gymnastic bars can therefore be adjusted without the use of tools.
Assembly and installation of the system
The system can be installed in any location. The posts are mounted in approximately 60 cm deep concrete foundations. The stainless steel posts are cast directly into the concrete.
For easy assembly you will receive:
- All necessary elements and fittings are included. All that's missing is the ready-mixed concrete mix (available in bags at hardware stores).
- Assembly instructions including foundation plan and elevation sketches
- Threaded rods size M12 including screw connections for millimeter-precise alignment of the system
Alignment using threaded rods
The parallel, vertical, and flush alignment of the posts to each other is of great importance for a stable installation of the system. Using the supplied threaded rods With the M12 size and the gymnastic bars, the station can be precisely aligned before concreting. This ensures the post spacing is maintained to the millimeter until the concrete hardens.
For further details, please see this article explained.
Floor design
The surface can be laid using grass, but even better properties are offered by impact protection mats or impact protection tiles. These items are available in our shop in square or rectangular shapes in various colors and thicknesses. These mats offer better impact absorption than grass.
Further information can be found on our website Fall protection panels .

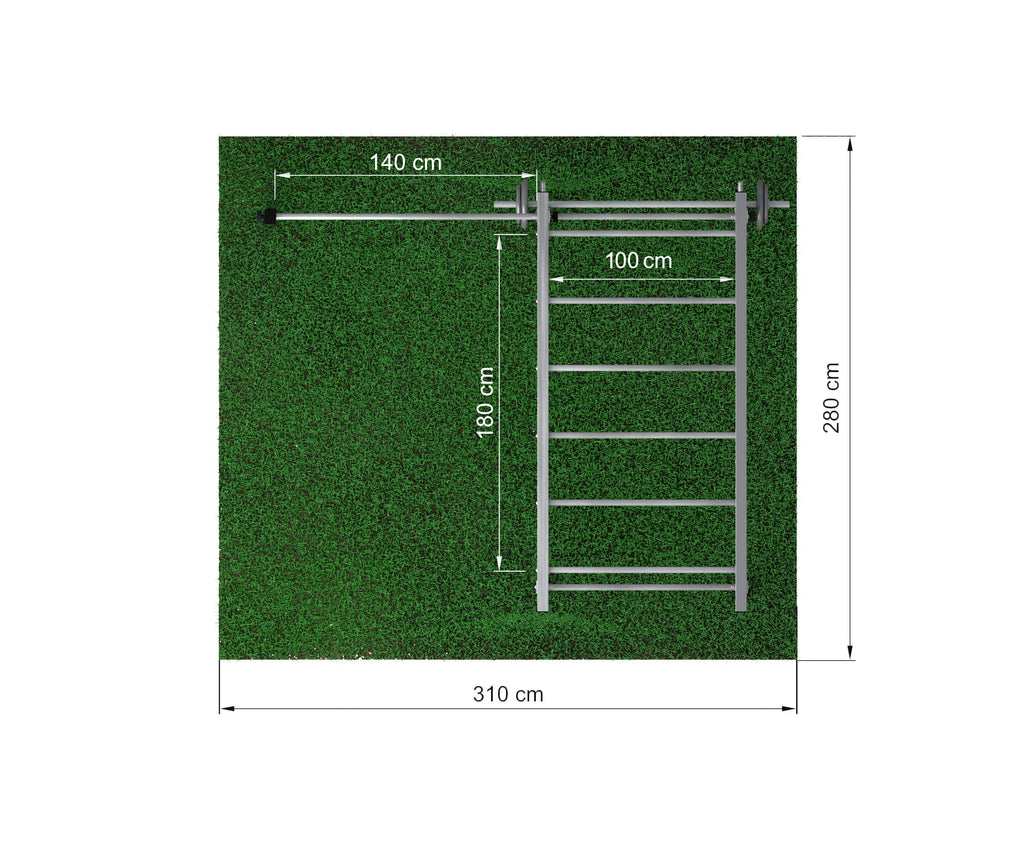

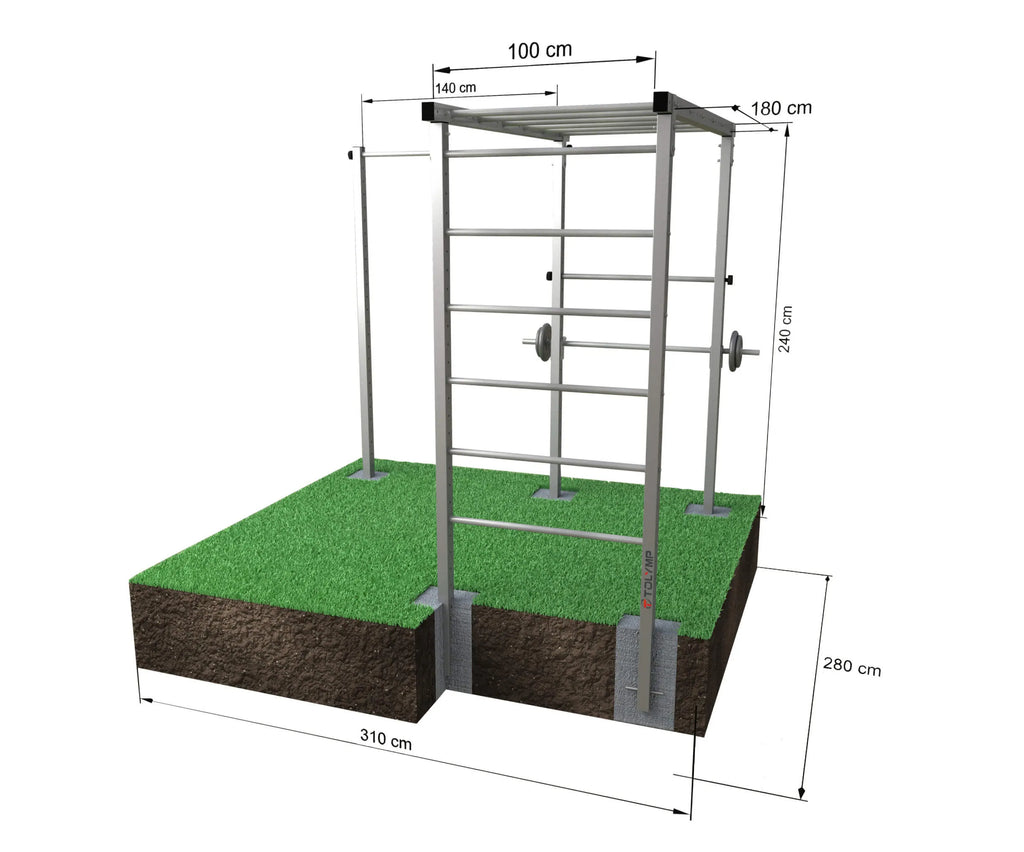

Construction sketch
Floor design with fall protection panels
Use of threaded rods
Technical data
| Weight | 125 kg |
|---|---|
| rung ladder |
with rung ladder |
| Number of pull-up bars |
2 bars |
| Dip bars |
without dip bars |
|
Gymnastic bar height
From 3-year-old toddlers to adults, our gymnastics bars always fit. Adjustable bar heights standard version: 90, 110, 130, 150, 170 cm |
Gymnastic bar adjustable in 9 cm increments between 15 and 240 cm (optionally 300 cm) |
| recommended floor space |
310 x 280 cm |
| Post dimensions and wall thickness |
80 x 60 x 3 mm |
| Human Flag Pole |
available with human flag pole |
| Load per element |
up to 150 kg per training element |
| Design of the gymnastic bars |
made of ground V2A stainless steel, diameter 33.7 mm, wall thickness 2.5 mm, length 140 cm |
| Rung ladder dimensions |
Width 100 cm, diameter 34 mm, consisting of 6 individually adjustable rungs |
| Monkey Bar |
Width 100 cm |
| Brands |
TOLYMP |
