Description

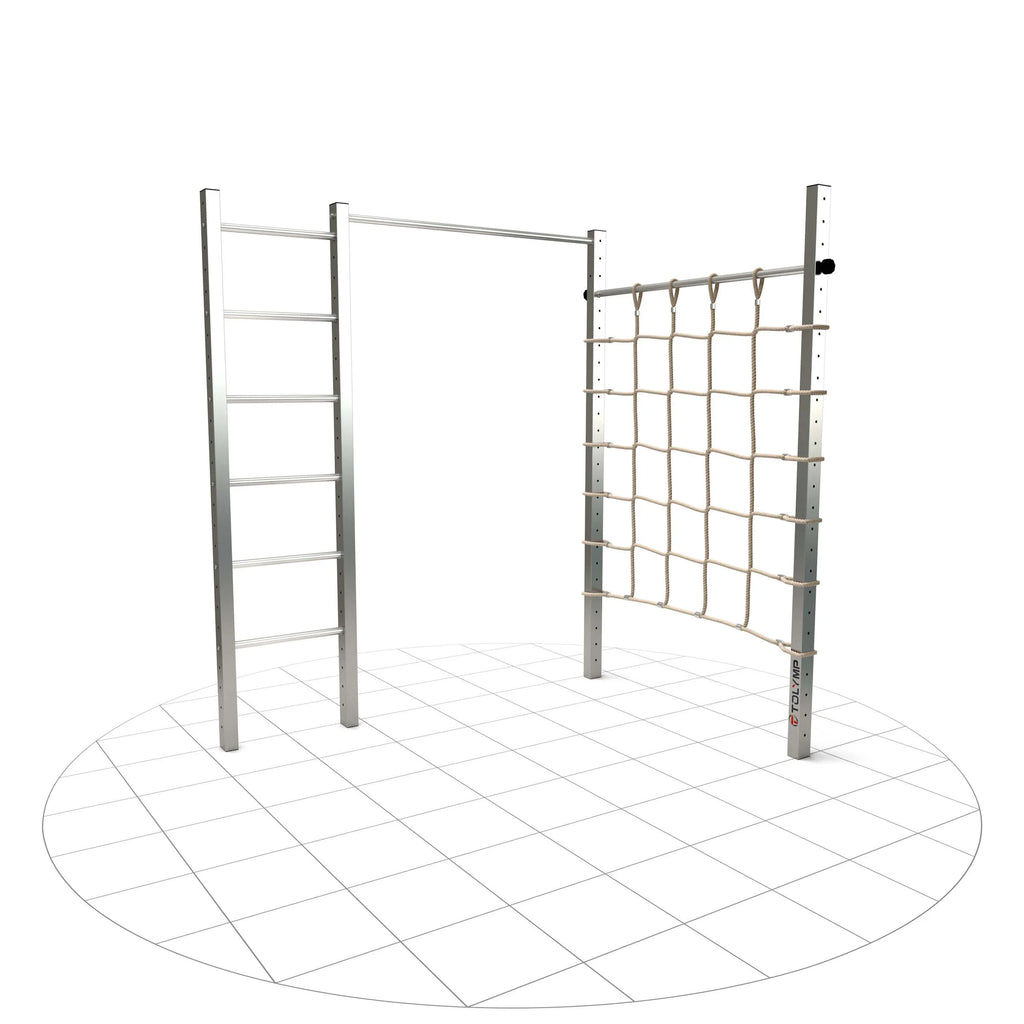

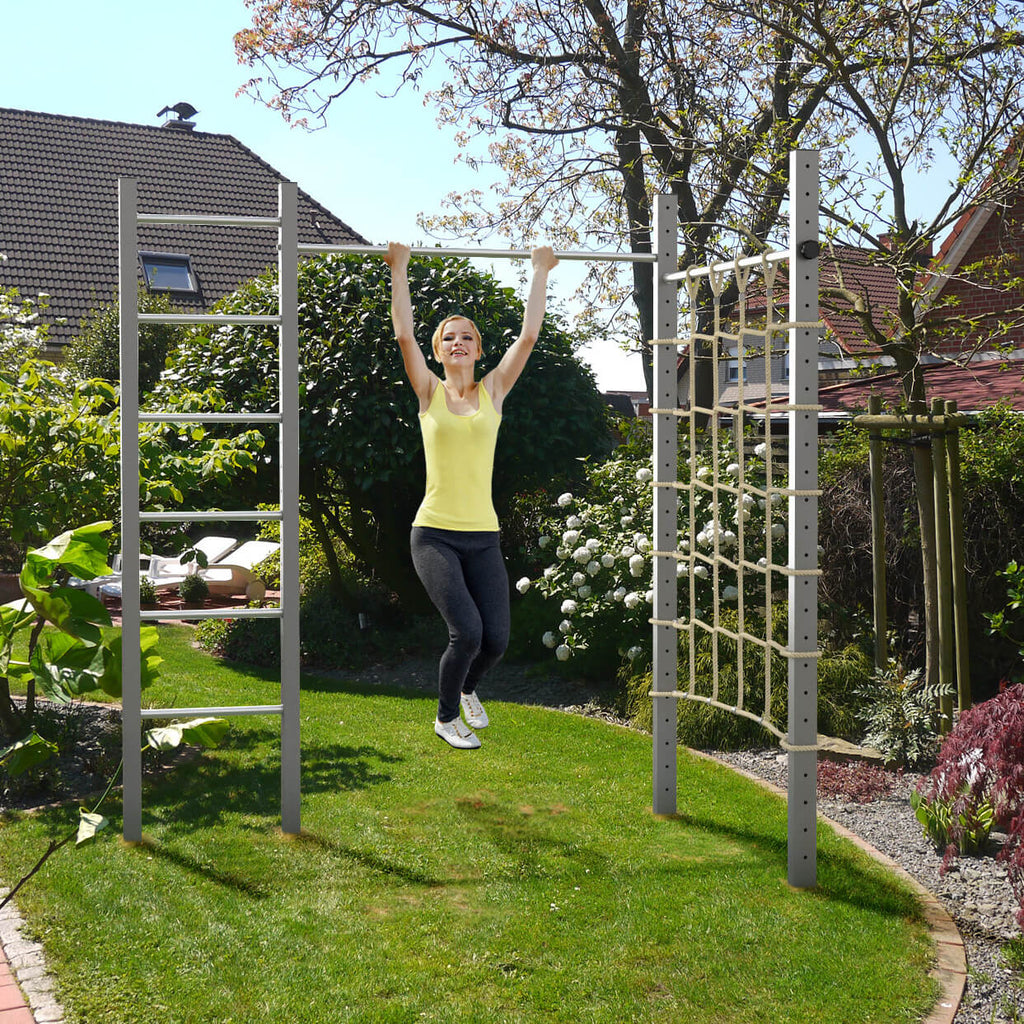

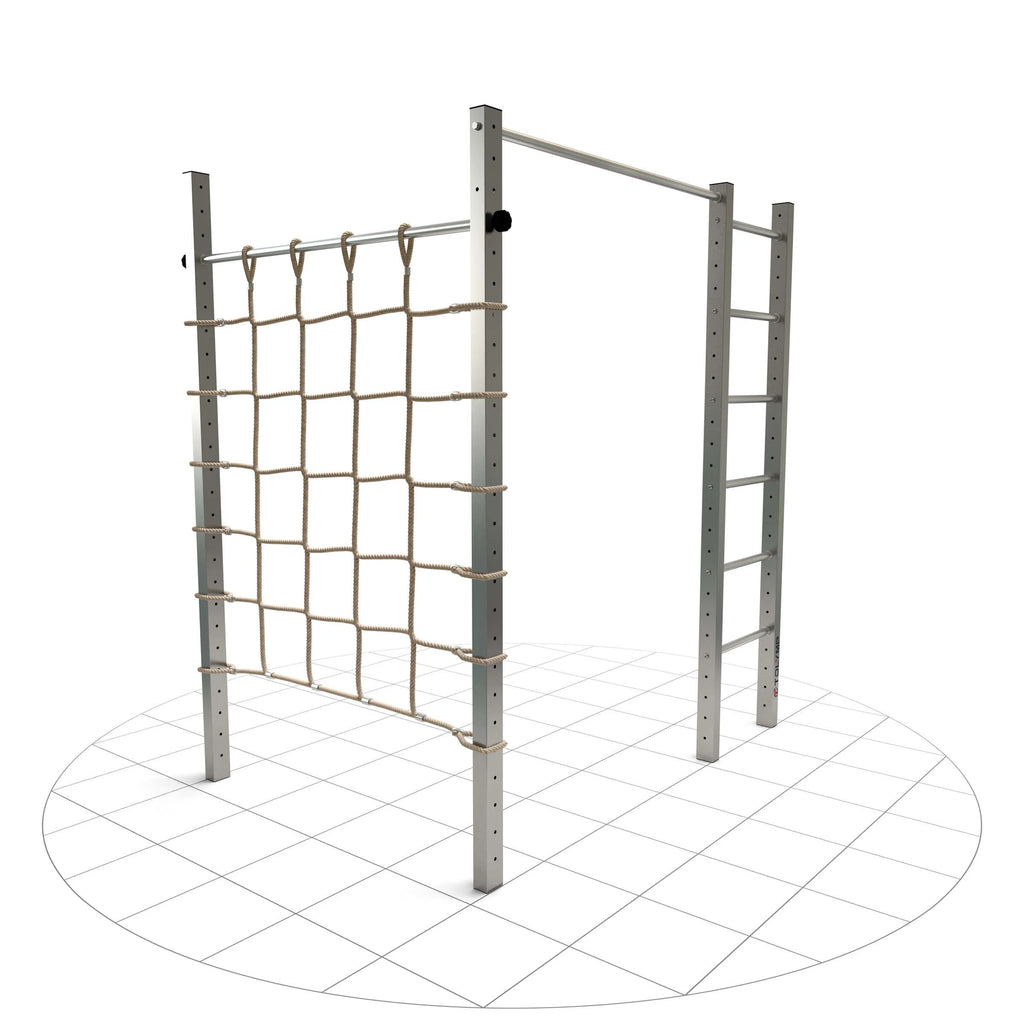

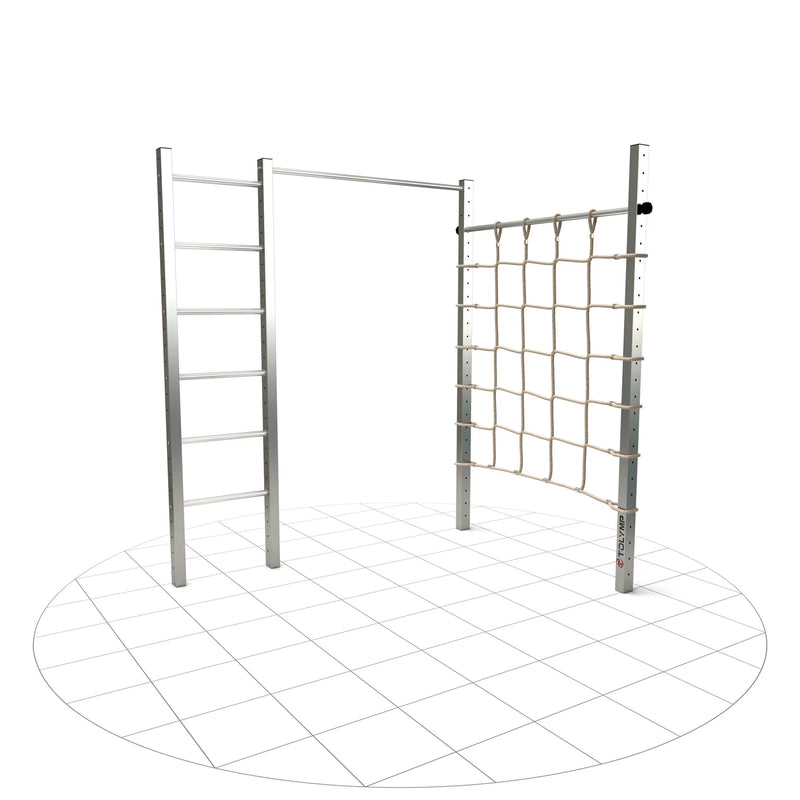

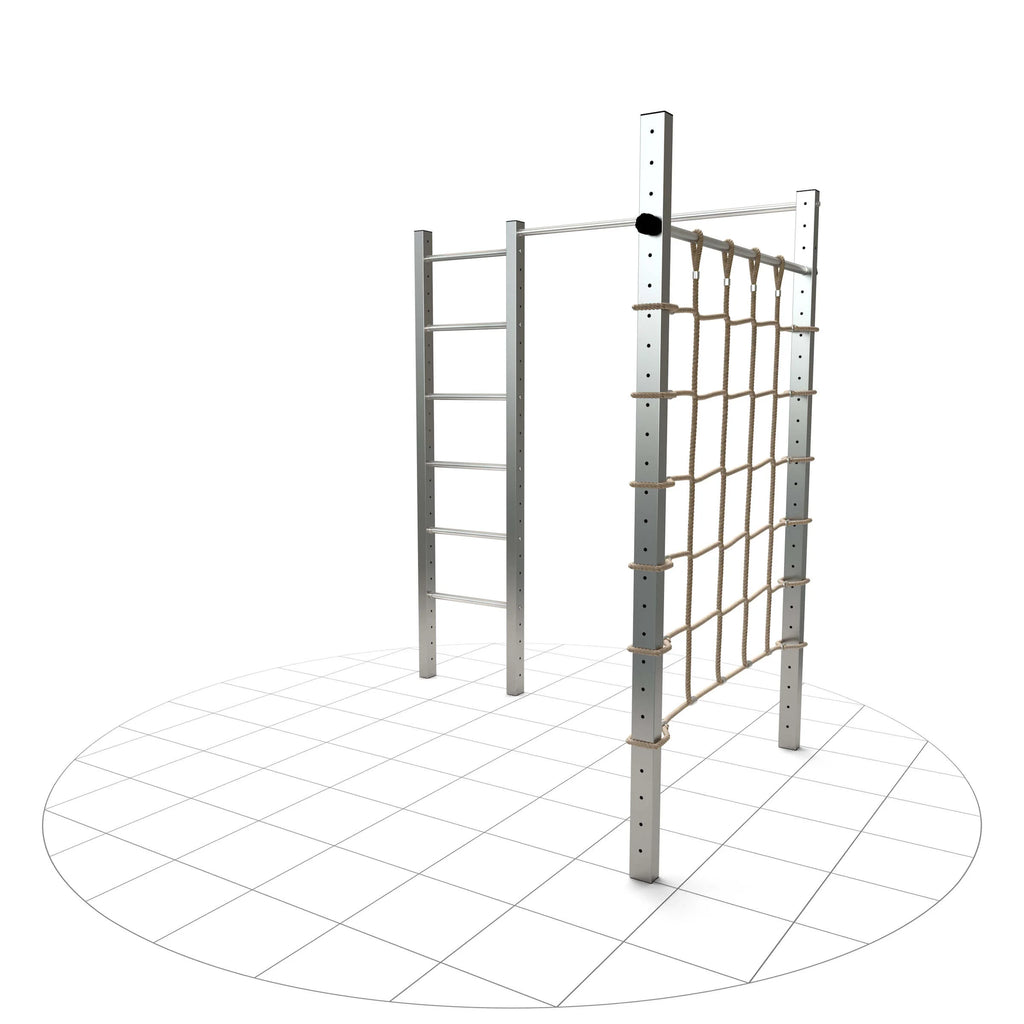

Compact system with rung ladder and two pull-up bars for installation in a corner or next to each other.

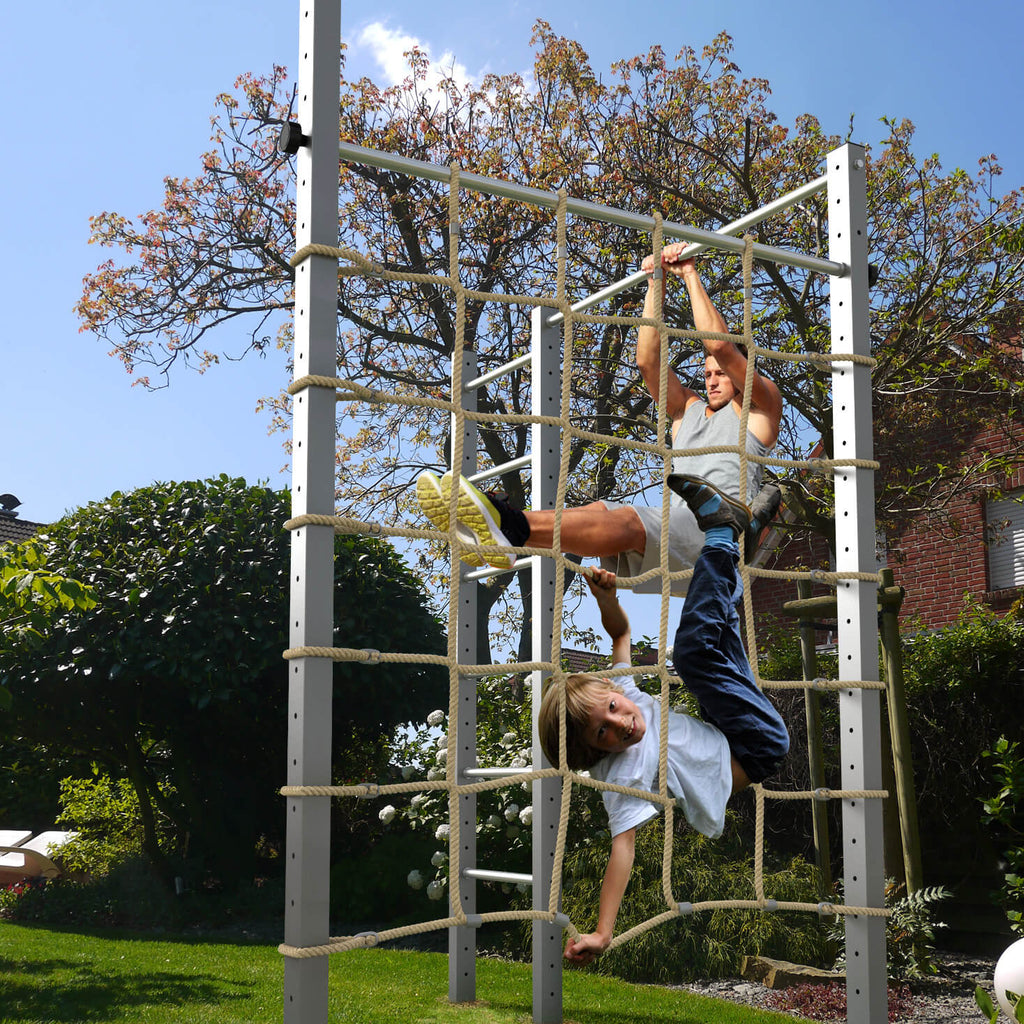

Equipped with two gymnastic bars and a ladder. Optionally, it can be expanded with a human flag bar, climbing net, and sling trainer.
Sturdy construction, made entirely of V2A stainless steel.
Compact system with rung ladder and two pull-up bars for installation in a corner or next to each other.
Here you can not only do gymnastics, but also climb on the ladder climbing and working. Ideal for a variety of training and play options, even in confined spaces where dip bars aren't required.
One horizontal bar is adjustable in 25 height steps from 15 cm to 240 cm. The other horizontal bar can be mounted at two heights, 235 and 215 cm, for corner installation.
This means that adults as well as children and young people can quickly find the right training conditions.
The quick adjustment is already included in the delivery.
The post thickness of this inexpensive station is already 3mm, so a human flag pole can be added at a reasonable price.
The two gymnastic bars can be set up as a corner solution or next to each other.
Sturdy construction, made entirely of V2A stainless steel DIN 1.4301.
Our outdoor gym products are characterized by the use of high-quality materials and professionally executed, high-quality workmanship.
The material is completely machine-ground and all welds are cleanly executed.
We offer a 10-year guarantee on welds and rust-free surfaces.
The stainless steel components
Our products are characterized by the use of high-quality materials and professional, high-quality workmanship. The material is completely machine-ground, and all welds are cleanly executed.
The dimensions of the posts are 80 x 60 mm, the wall thickness is 3 mm (reinforced version).
Adjusting the gymnastic bars
Design of the two pull-up bars
The gymnastic bars are attached and the height is adjusted using two M12 star grip screws or hexagon screws.
For this purpose, the gymnastic bars feature a CNC-milled turned part at both ends, each equipped with an M12 thread. Additionally, the two contact surfaces facing the upright are knurled to effectively prevent the bars from spinning.
The variable pull-up bar can therefore be adjusted without the use of tools.
Assembly and installation of the system
The system can be installed in any location. The posts are mounted in approximately 60 cm deep concrete foundations. The stainless steel posts are cast directly into the concrete.
For easy assembly you will receive:
- All necessary elements and fittings are included. All that's missing is the ready-mixed concrete mix (available in bags at hardware stores).
- Assembly instructions including foundation plan and elevation sketches
- Threaded rods size M12 including screw connections for millimeter-precise alignment of the system
Alignment using threaded rods
The parallel, vertical, and flush alignment of the posts to each other is of great importance for a stable installation of the system. Using the supplied threaded rods With the M12 size and the gymnastic bars, the station can be precisely aligned before concreting. This ensures the post spacing is maintained to the millimeter until the concrete hardens.
Floor design
The surface can be laid using grass, but even better properties are offered by impact protection mats or impact protection tiles. These items are available in our shop in square or rectangular shapes in various colors and thicknesses. These mats offer better impact absorption than grass.
Further information can be found on our website Fall protection panels .

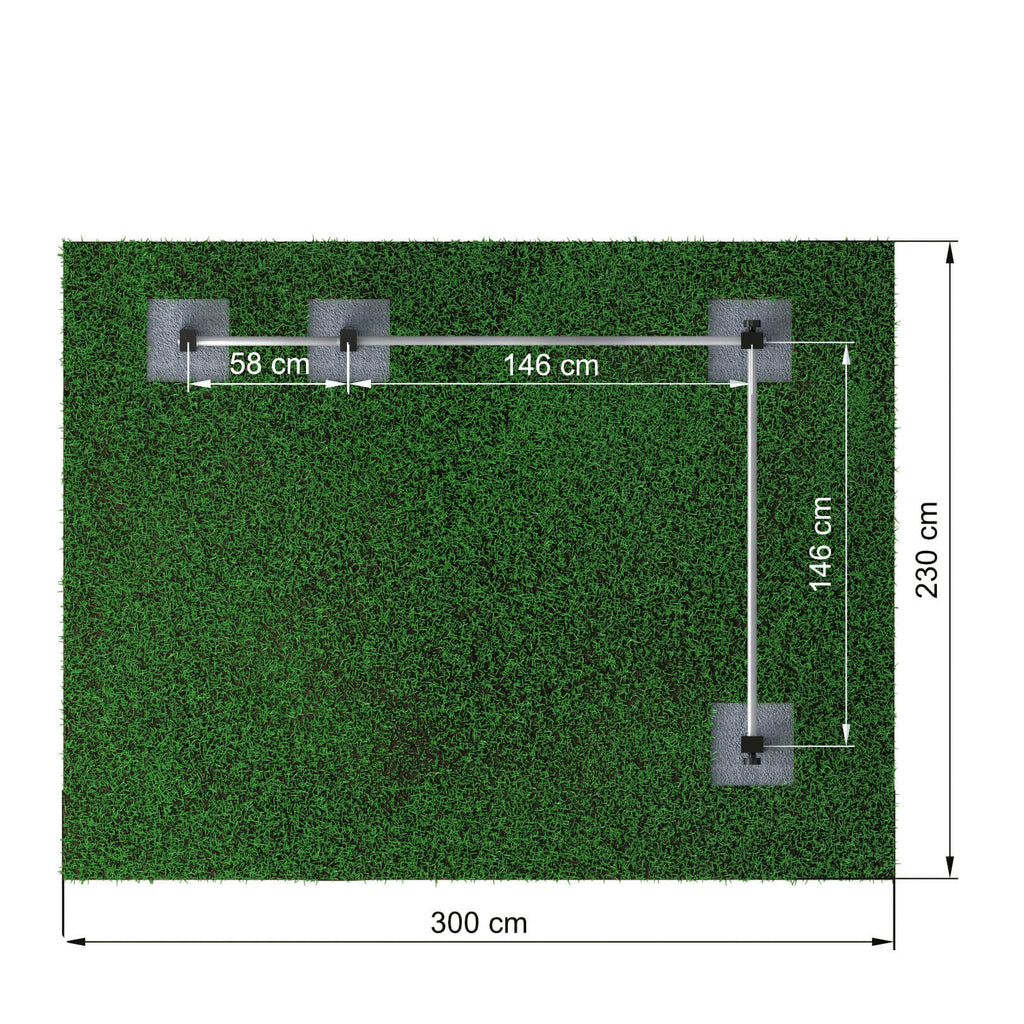

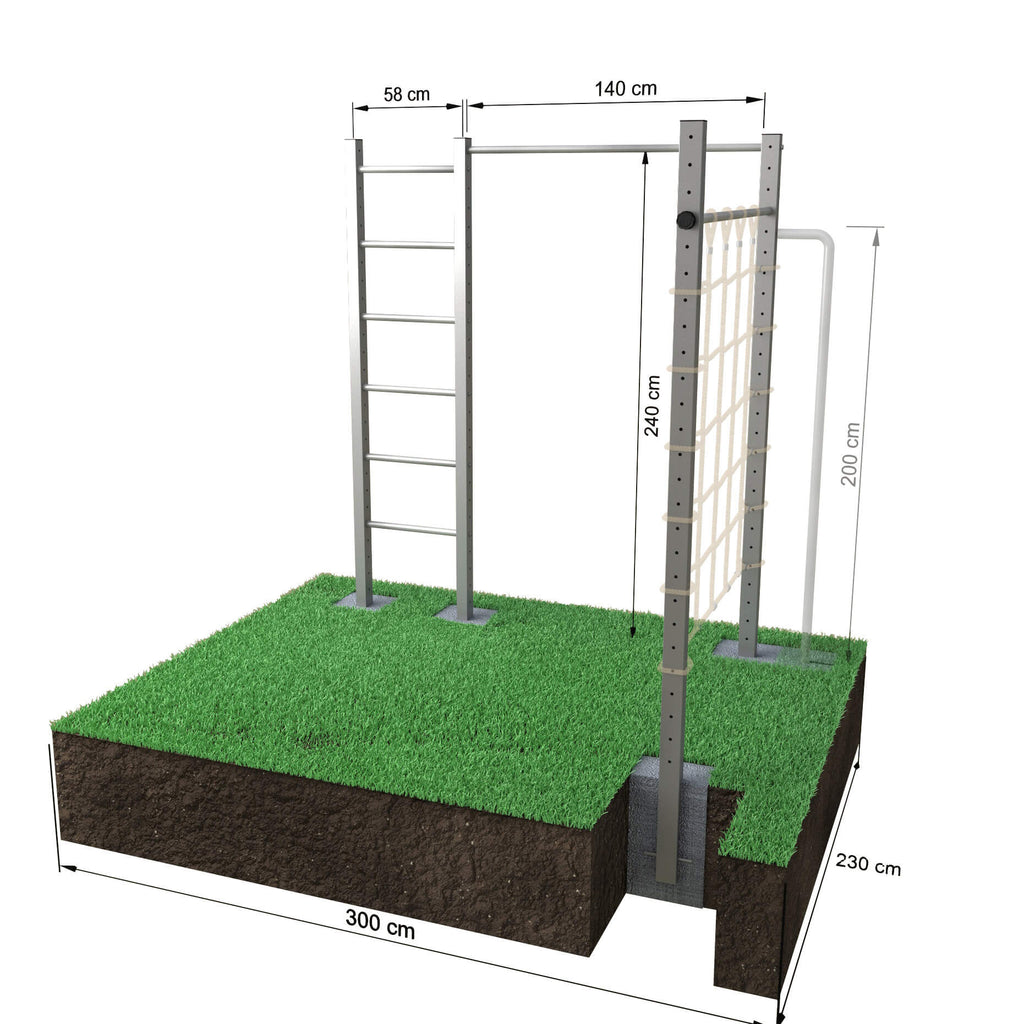

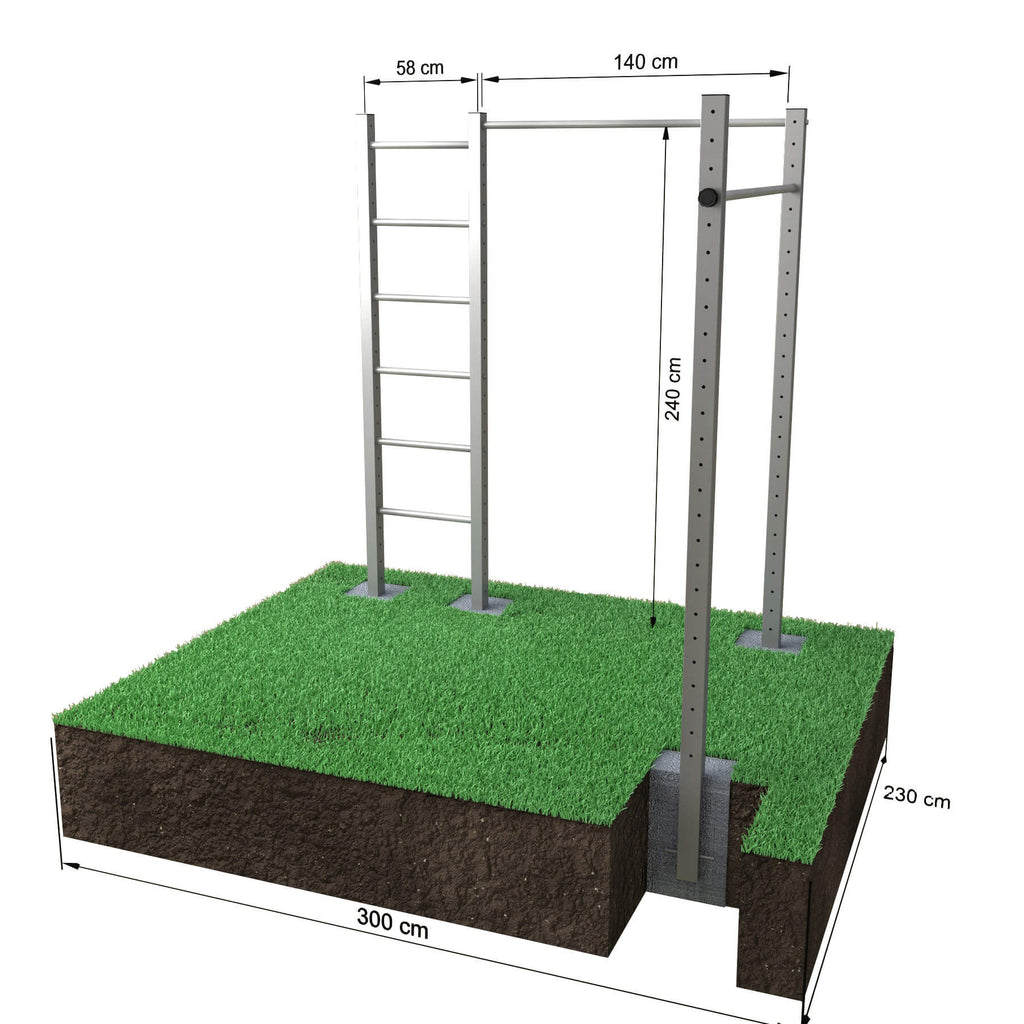

Construction sketch
Floor design with fall protection panels
Use of threaded rods
Technical data
| Weight | 65,000,000 kg |
|---|---|
| rung ladder |
with rung ladder |
| Number of pull-up bars |
2 bars |
| Dip bars |
without dip bars |
|
Gymnastic bar height
From 3-year-old toddlers to adults, our gymnastics bars always fit. Adjustable bar heights standard version: 90, 110, 130, 150, 170 cm |
Gymnastic bar adjustable in 9 cm increments between 15 and 240 cm (optionally 300 cm) |
| recommended floor space |
300 x 240 cm |
| Post dimensions and wall thickness |
80 x 60 x 3 mm |
| Human Flag Pole |
available with human flag pole |
| Load per element |
up to 150 kg per training element |
| Design of the gymnastic bars |
made of ground V2A stainless steel, diameter 33.7 mm, wall thickness 2.5 mm, length 140 cm |
| Rung ladder dimensions |
Width 52 cm, diameter 30 mm, consisting of 6 rungs individually adjustable |
| Brands |
TOLYMP |
