Description

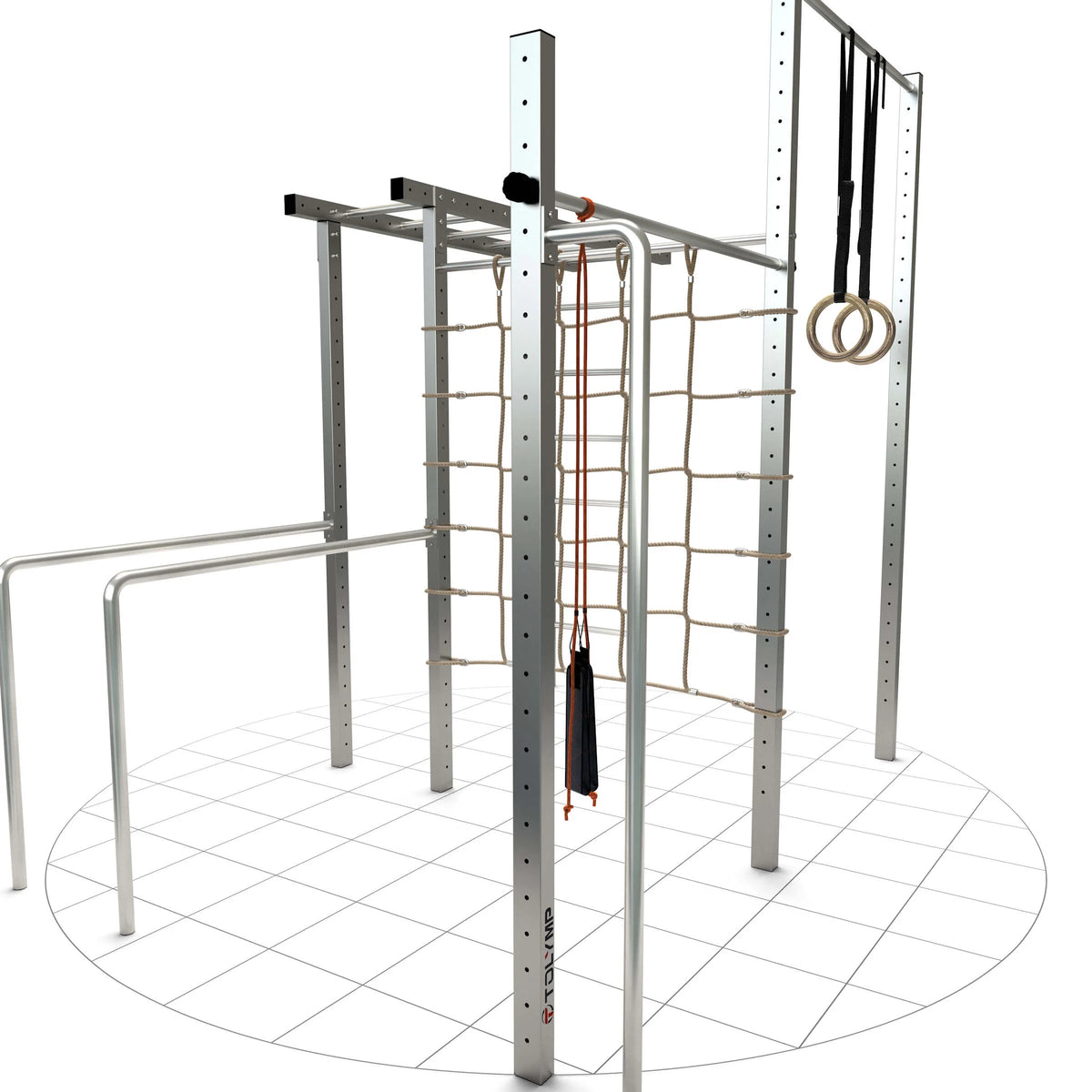

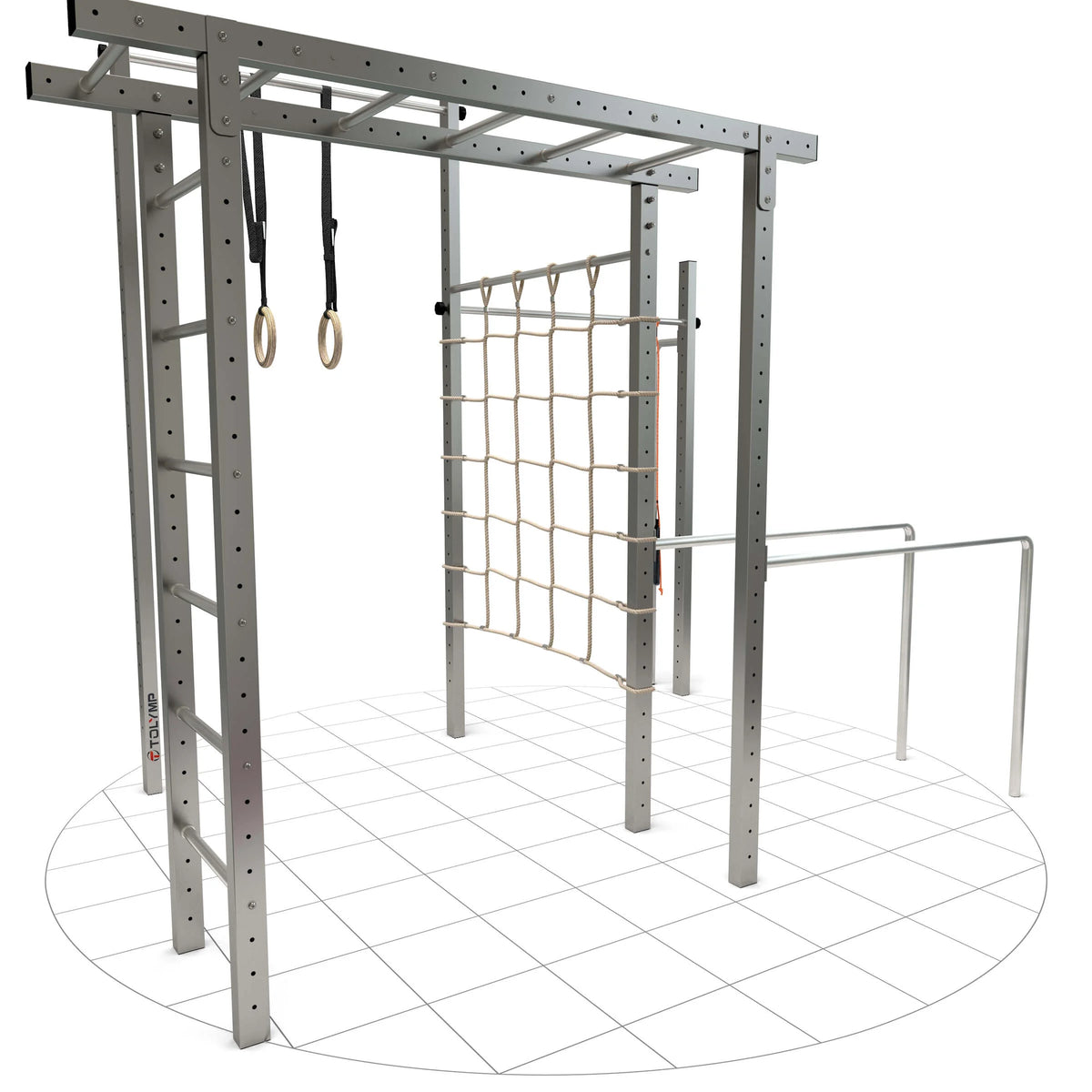

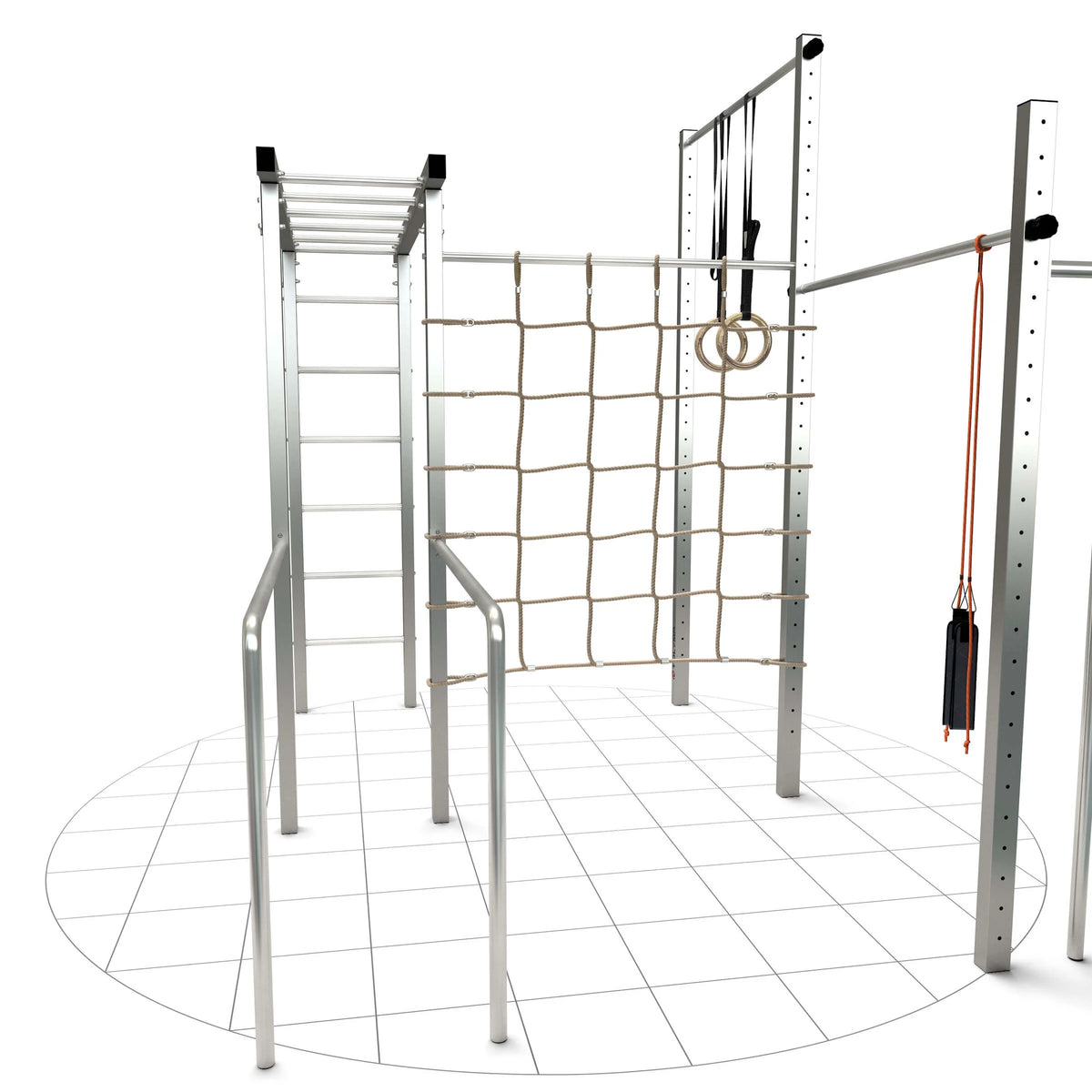

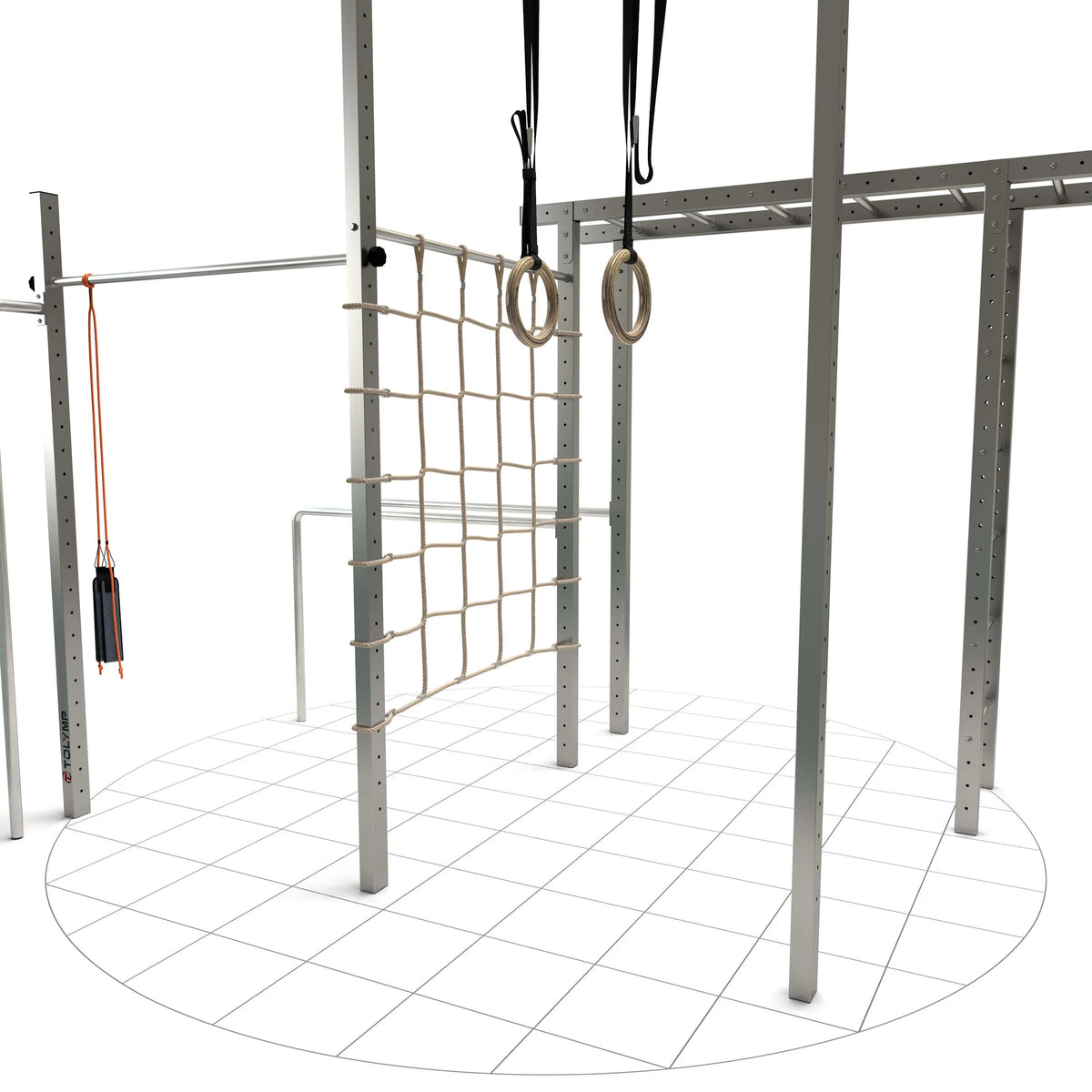

Our top model: 3 pull-up bars, monkey bars, dip bars, rung ladder, human flag bar, climbing net, gymnastic rings.
This facility combines all the features and elements of the smaller versions. While still offering a compact footprint, TOLYMP Max offers the ideal conditions for holistic training and a variety of play options for the whole family.
REHAPE sling trainer, gymnastic rings and the climbing net are already included in the delivery.
Sturdy construction, made entirely of V2A stainless steel.

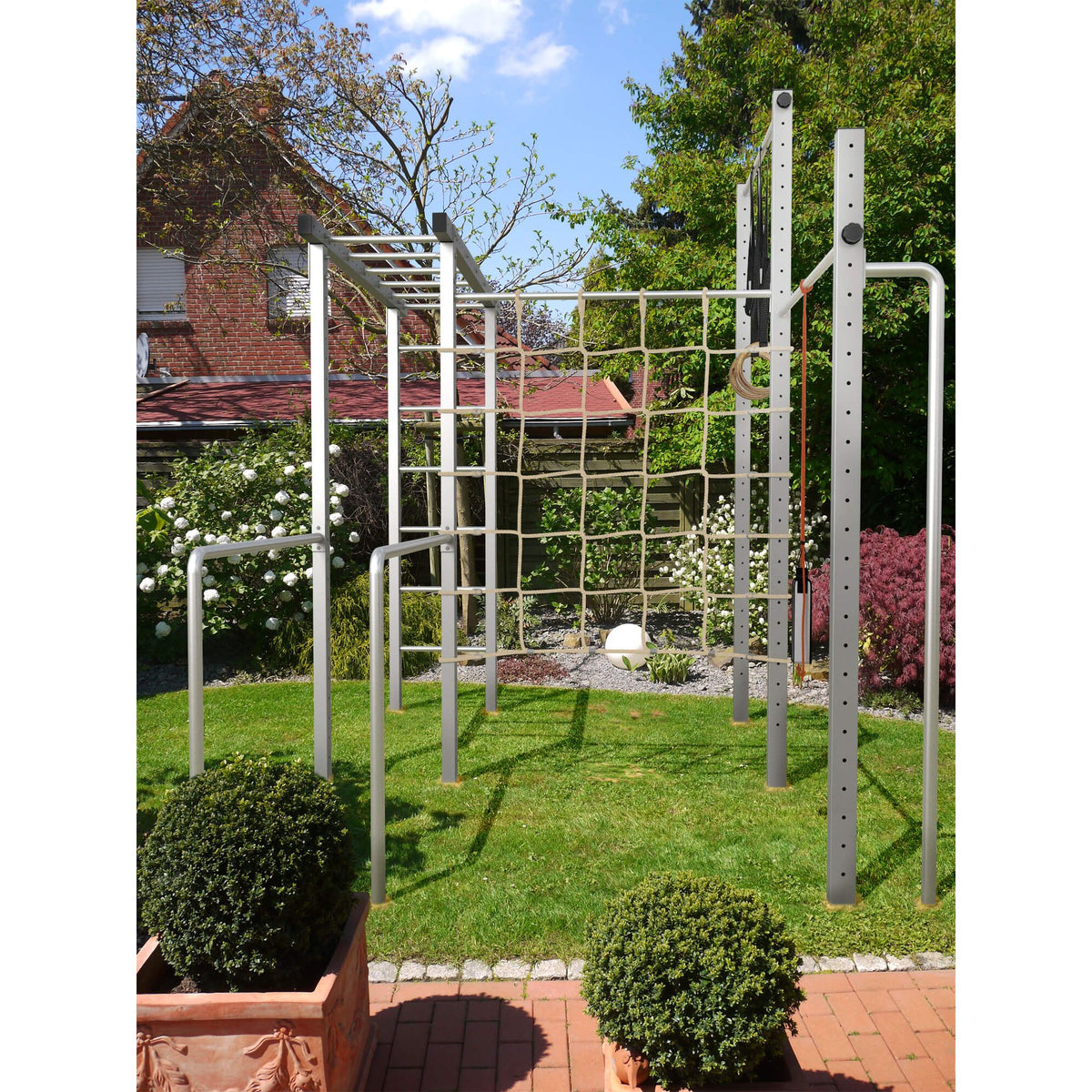

A fully equipped facility for a variety of training and play opportunities for the whole family.
The pull-up bars can be adjusted to your needs in 25 steps from 15 cm to 240 cm.
This means that adults as well as children and young people can quickly find the right training conditions.
Sturdy construction, made entirely of V2A stainless steel DIN 1.4301.
Our outdoor gym products are characterized by the use of high-quality materials and professionally executed, high-quality workmanship.
The material is completely machine-ground and all welds are cleanly executed.
We offer a 10-year guarantee on welds and rust-free surfaces .
Quick adjustment of the gymnastic bars
The height is adjusted using two M12 star grip screws.
For this purpose, the gymnastics bar has a CNC-milled turned part at both ends, which is equipped with an M12 thread.
In addition, the two contact surfaces towards the post are provided with knurling to effectively prevent the rods from spinning.
Adjusting the height is very easy and can be done in three steps:
1. Loosen the two screws by hand.
2. Fix the gymnastic bar at the new desired height
3. Screw the gymnastic bar using the two star grip screws
Please note that due to the corner installation, two of the three gymnastic bars are adjustable over the entire height of 240 cm.
The other gymnastics bar has two holes for the most important heights: 235 cm and 210 cm.
Assembly and installation of the trim station
The system can be installed in any location. The posts are secured in approximately 60 cm deep concrete foundations.
For easy assembly you will receive:
- All necessary elements and fittings are included. All that's missing is the ready-mixed concrete mix (available in bags at hardware stores).

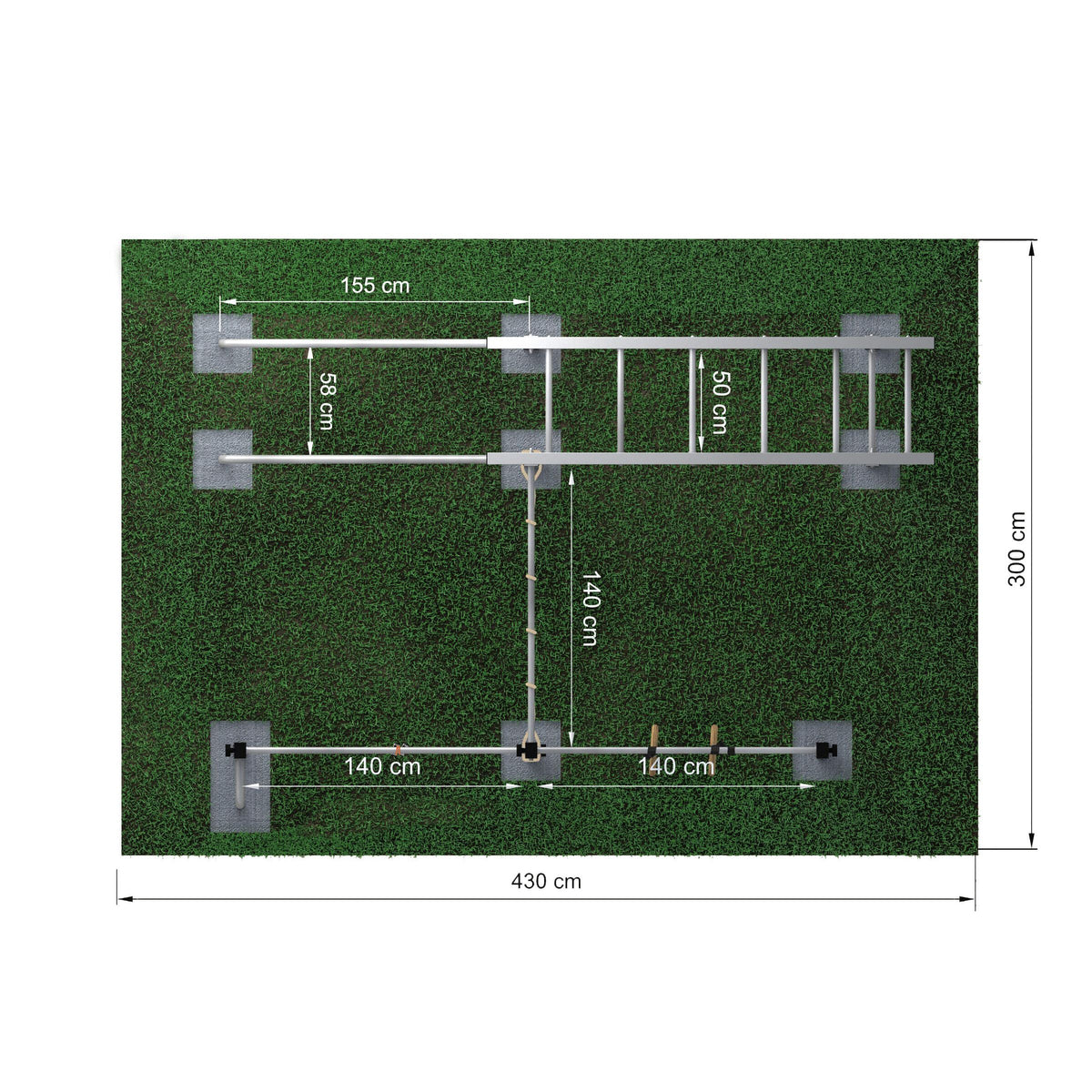

- Assembly instructions including foundation plan and elevation sketches
- Threaded rods including screw connections for millimeter-precise alignment of the system
Alignment using threaded rods
The parallel, vertical, and flush alignment of the posts to each other is of great importance for the stable installation of the system. With the threaded rods With the M12 size bolts and the gymnastic bars, the system can be precisely aligned before concreting. This ensures the post spacing is maintained to the millimeter until the concrete hardens.
Floor design
The surface can be laid using grass, but even better properties are offered by impact protection mats or impact protection tiles. These products are available in square or rectangular shapes in various colors from specialist retailers. These mats offer better impact absorption than grass.
In combination with the stainless steel product, you can also achieve a visually appealing design for your play area.
| Weight | 185,000,000 kg |
|---|---|
| rung ladder |
with rung ladder |
| Number of pull-up bars |
3 bars |
| Dip bars |
with dip bars in length 150 cm, height 110 cm or 120 cm mountable, diameter 43 mm |
| 3 meter special height |
a bar in special height 300 cm for gymnastic rings |
|
Gymnastic bar height
From 3-year-old toddlers to adults, our gymnastics bars always fit. Adjustable bar heights standard version: 90, 110, 130, 150, 170 cm |
Gymnastic bar adjustable in 9 cm increments between 15 and 240 cm (optionally 300 cm) |

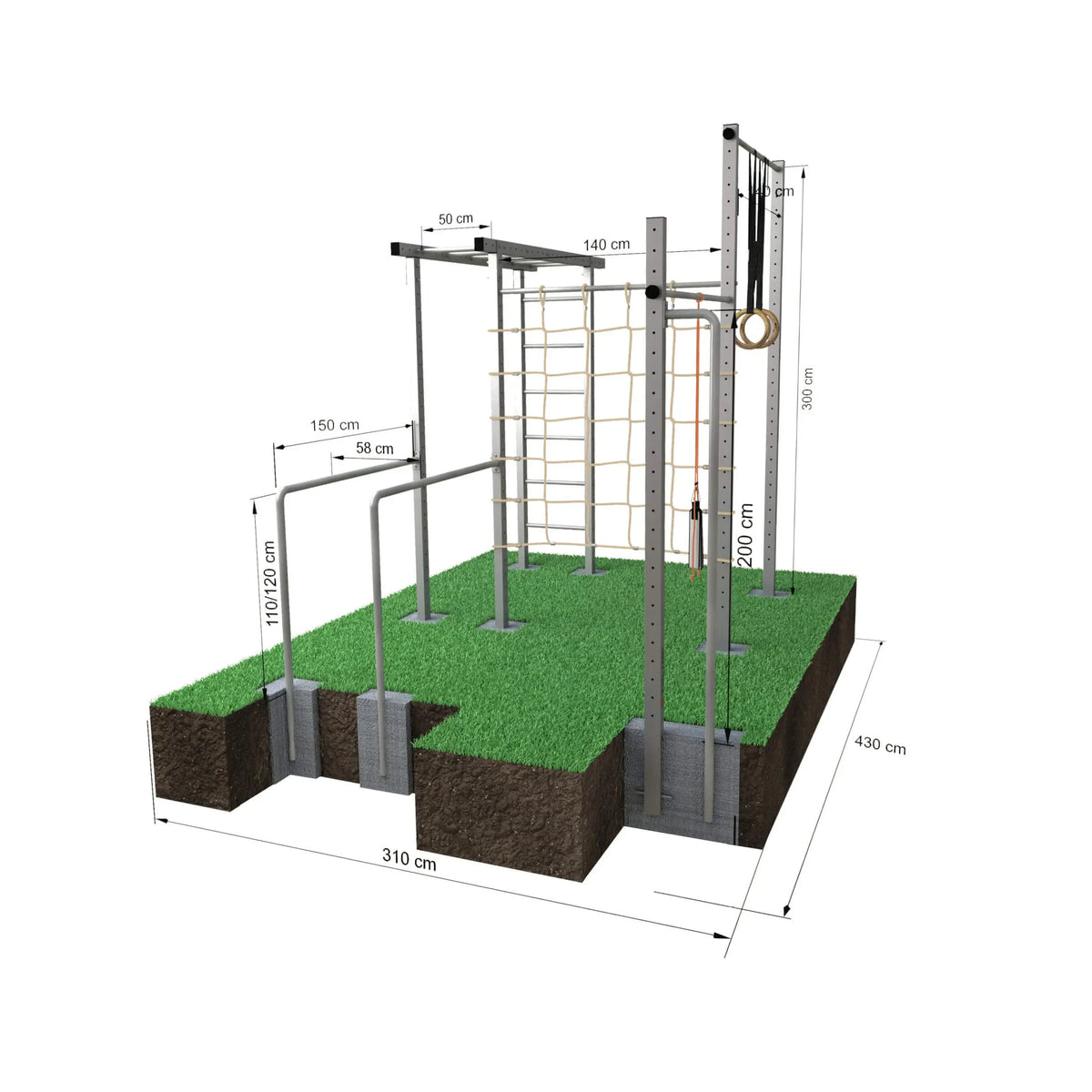

| recommended floor space |
310 x 430 cm |
| Post dimensions and wall thickness |
80 x 60 x 3 mm |
| Human Flag Pole |
Human flag included |
| Dip bar dimensions |
Length 150 cm, height 110 cm or 120 cm, diameter 43 mm |
| Load per element |
up to 150 kg per training element |
| Design of the gymnastic bars |
made of ground V2A stainless steel, diameter 33.7 mm, wall thickness 2.5 mm, length 140 cm |
| Rung ladder dimensions |
Width 52 cm, diameter 30 mm, consisting of 6 rungs individually adjustable |
| Monkey Bar |
Width 52 cm |
| Floor space according to DIN EN 16630 when installed in public areas |
750 x 650 cm – 48.75 sqm |
| Brands |
TOLYMP |
