Description

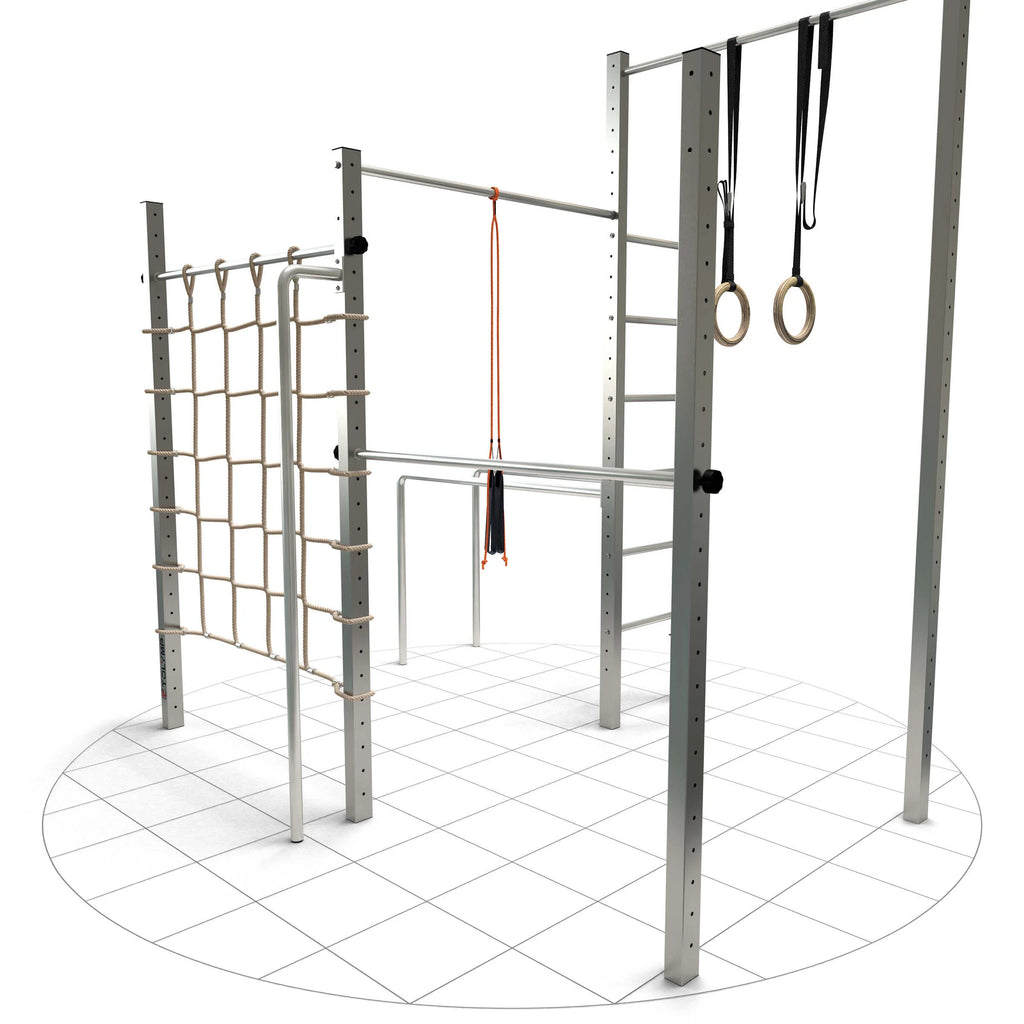

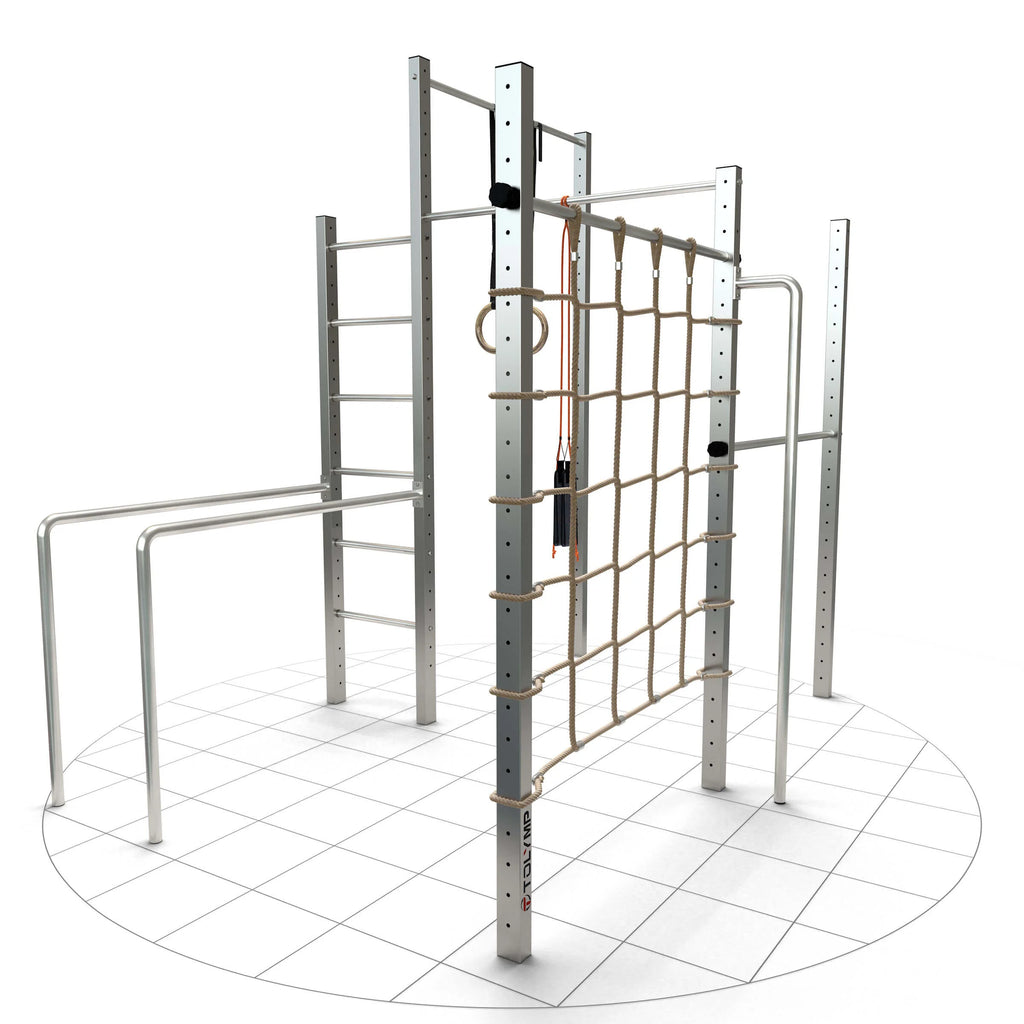

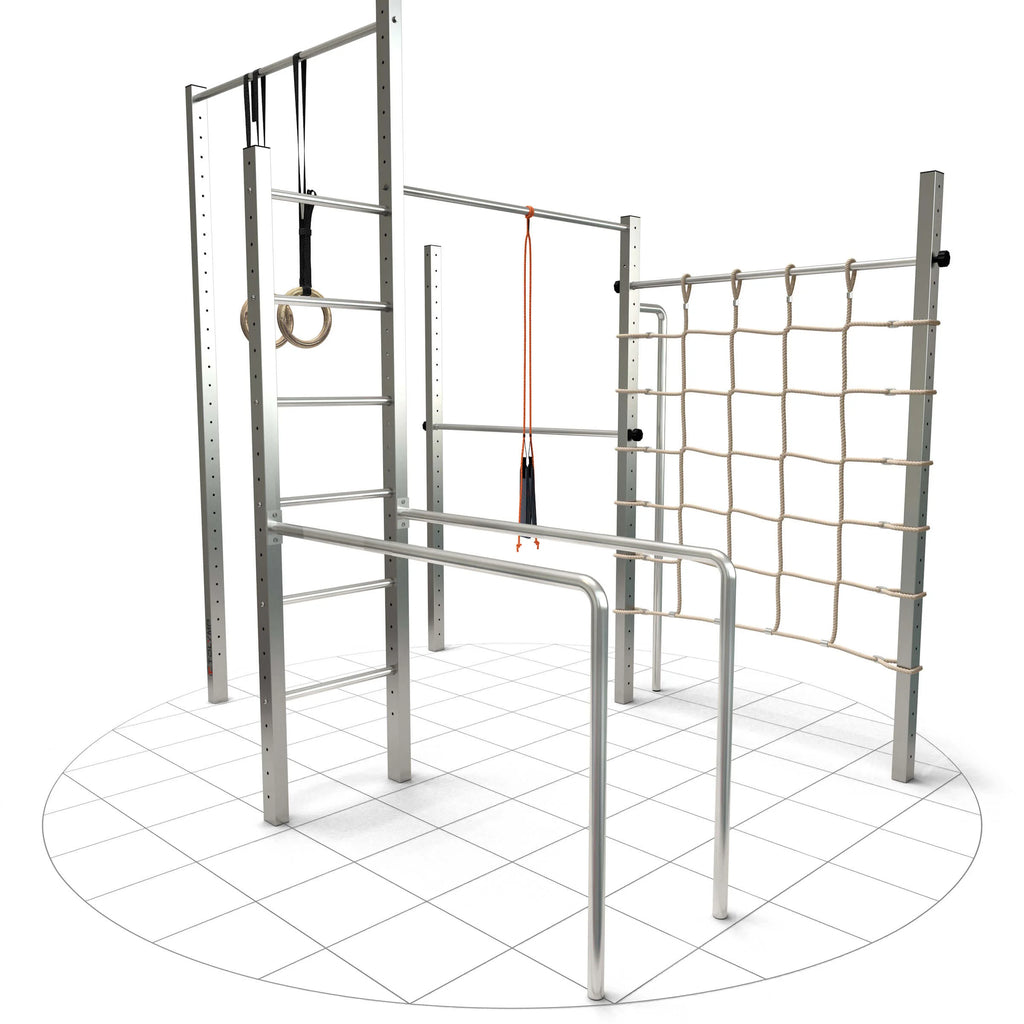

Our top model: 4 pull-up bars, gymnastic rings, dip bars, ladder, human flag bar, climbing net.
A fully equipped facility for a variety of training and play opportunities for the whole family.
The pull-up bars are adjustable to 25 different heights, allowing adults, children, and teenagers to quickly find the right height. The REHAPE sling trainer, gymnastic rings, and climbing net are included.
Sturdy construction, made entirely of V2A stainless steel.
Our top model: 4 pull-up bars, gymnastic rings, dip bars, ladder, human flag bar, climbing net.
A fully equipped facility for a variety of training and play opportunities for the whole family.
The pull-up bars can be adjusted to your needs in 25 steps from 15 cm to 240 cm.
This means that adults as well as children and young people can quickly find the right training conditions.

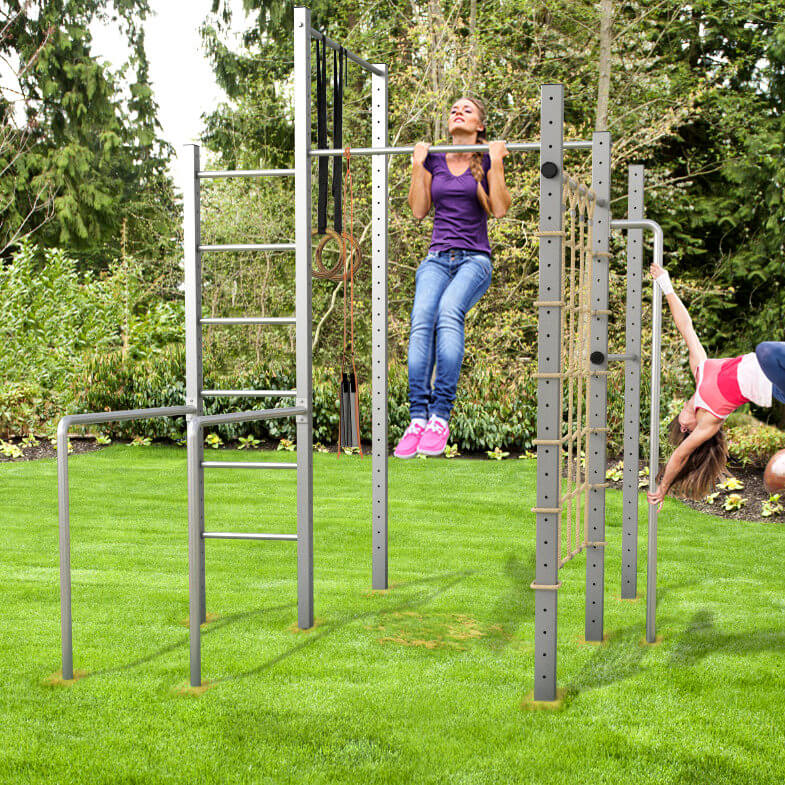

This system can be used for a variety of freeletics and calisthenics exercises using your own body weight.
Sturdy construction, made entirely of V2A stainless steel DIN 1.4301.
Our outdoor gym products are characterized by the use of high-quality materials and professionally executed, high-quality workmanship.
The material is completely machine-ground and all welds are cleanly executed.
We offer a 10-year guarantee on welds and rust-free surfaces.
The stainless steel components
Our products are characterized by the use of high-quality materials and professional, high-quality workmanship. The material is completely machine-ground, and all welds are cleanly executed.
The dimensions of the posts are 80 x 60 mm, the wall thickness is 3 mm (reinforced version).

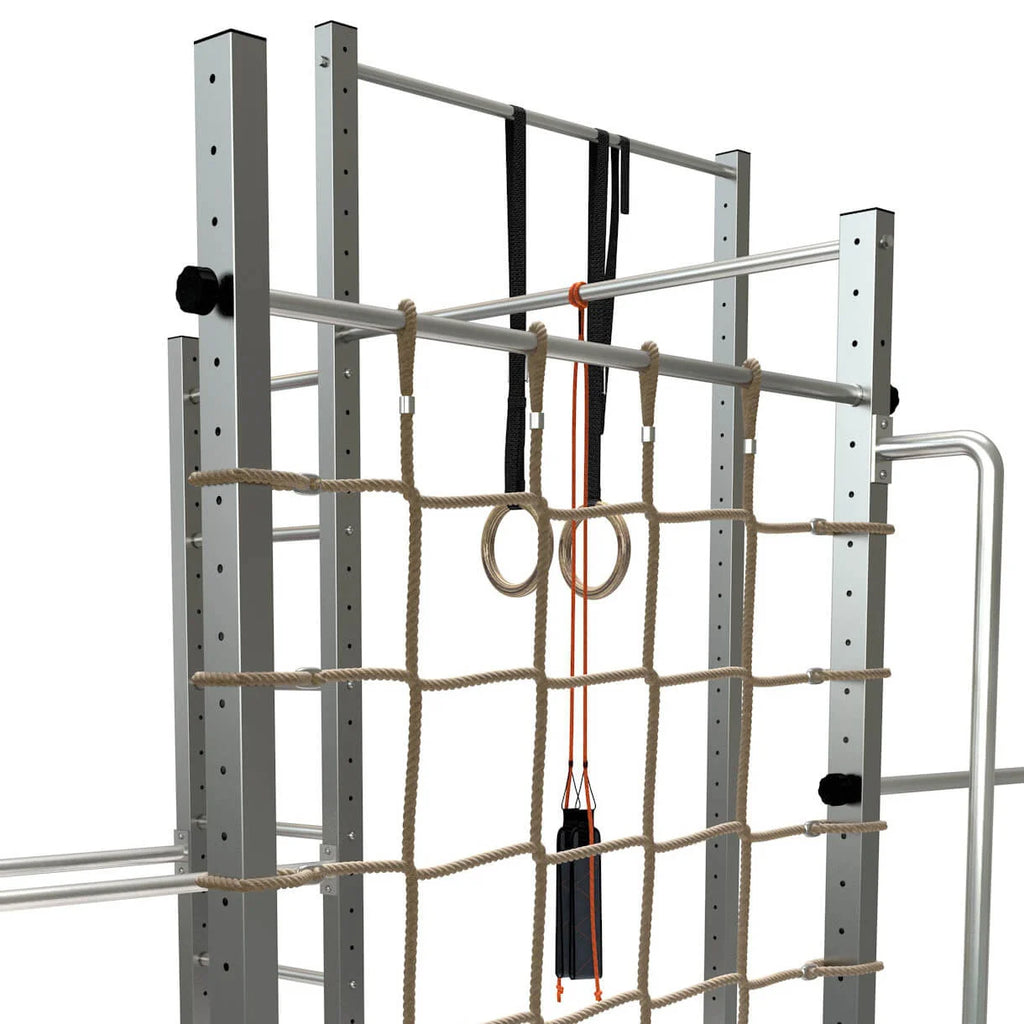

Adjusting the gymnastic bars
Design of the pull-up bars
The gymnastic bars are attached and the height is adjusted using two M12 star grip screws.
For this purpose, the gymnastic bars feature a CNC-milled turned part at both ends, each equipped with an M12 thread. Additionally, the two contact surfaces facing the upright are knurled to effectively prevent the bars from spinning.
The height of the gymnastic bars can therefore be adjusted without the use of tools.
Assembly and installation of the system
The system can be installed in any location. The posts are mounted in approximately 60 cm deep concrete foundations. The stainless steel posts are cast directly into the concrete.
For easy assembly you will receive:
- All necessary elements and fittings are included. All that's missing is the ready-mixed concrete mix (available in bags at hardware stores).
- Assembly instructions including foundation plan and elevation sketches
- Threaded rods size M12 including screw connections for millimeter-precise alignment of the system
Alignment using threaded rods
The parallel, vertical, and flush alignment of the posts to each other is of great importance for a stable installation of the system. Using the supplied threaded rods With the M12 size and the gymnastic bars, the station can be precisely aligned before concreting. This ensures the post spacing is maintained to the millimeter until the concrete hardens.
For further details, please see this article explained.
Floor design
The surface can be laid using grass, but even better properties are offered by impact protection mats or impact protection tiles. These items are available in our shop in square or rectangular shapes in various colors and thicknesses. These mats offer better impact absorption than grass.
Further information can be found on our website Fall protection panels .

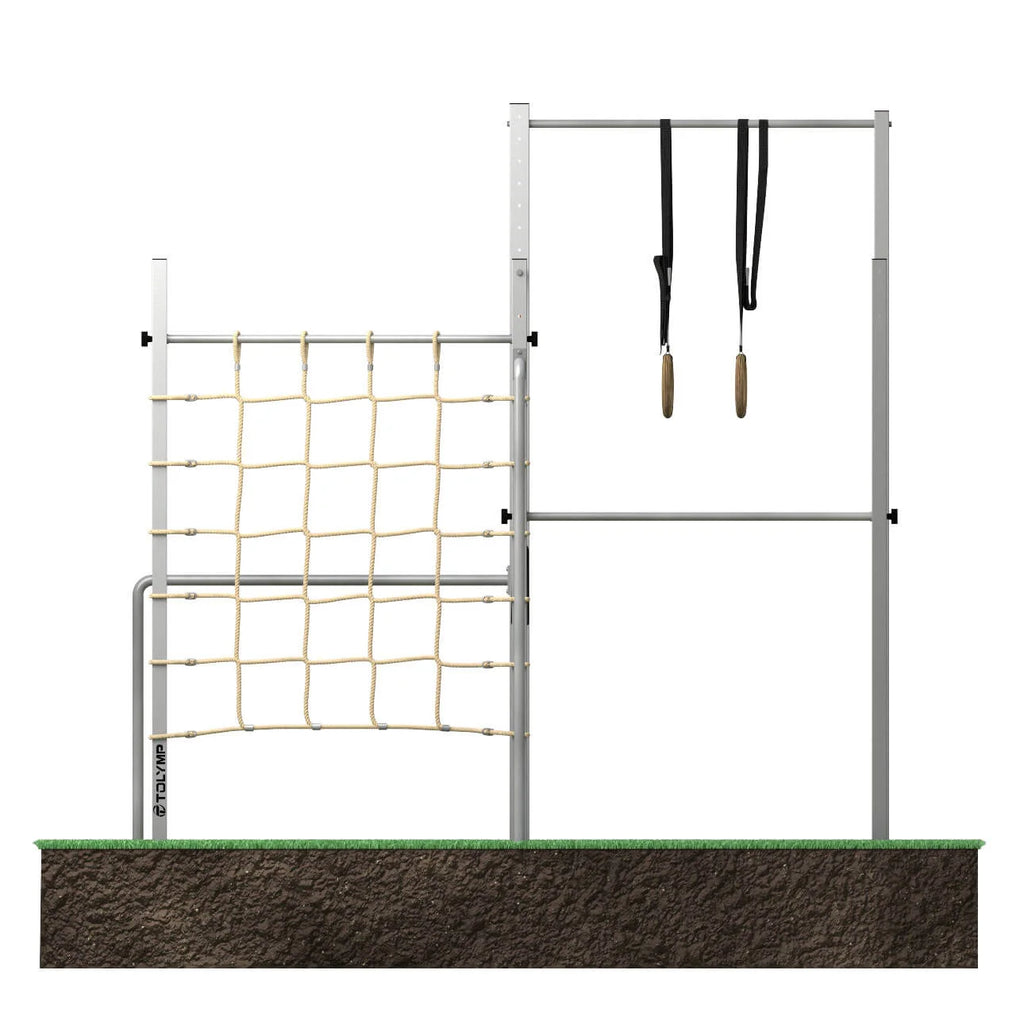

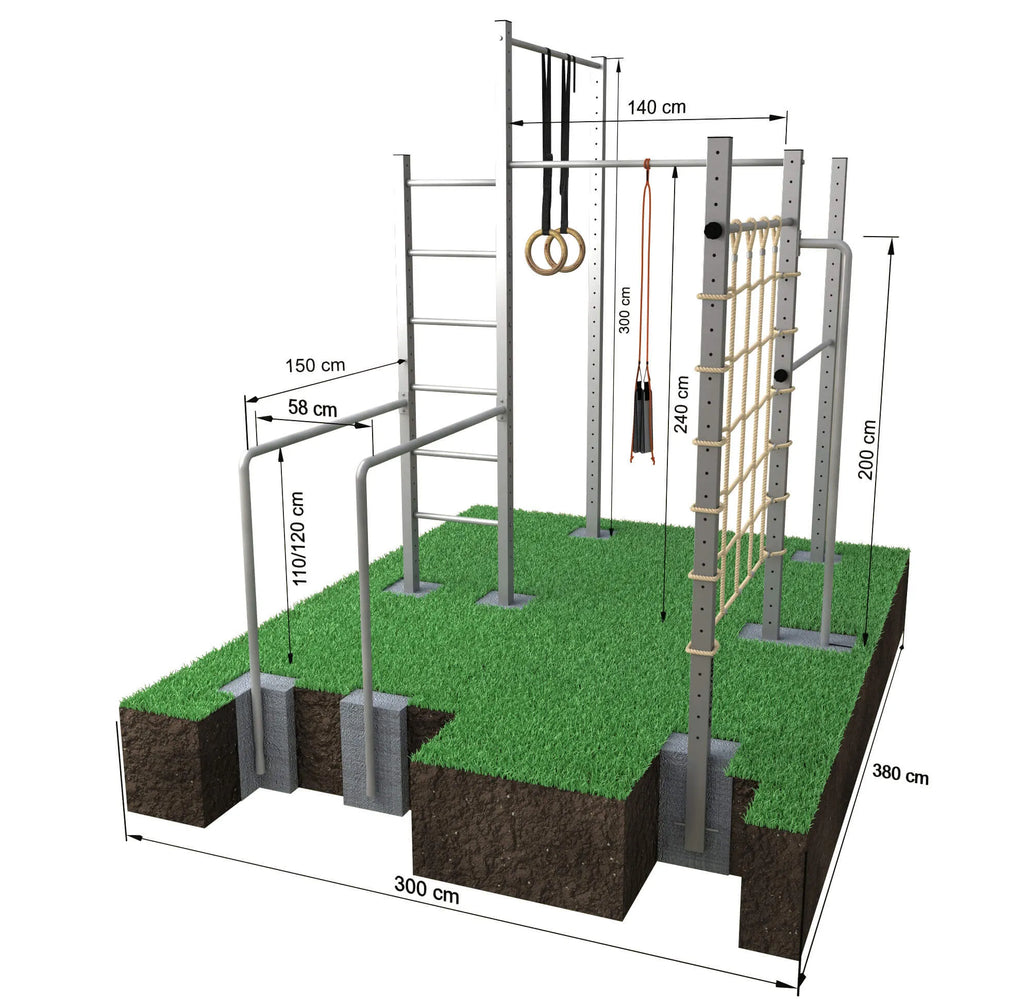

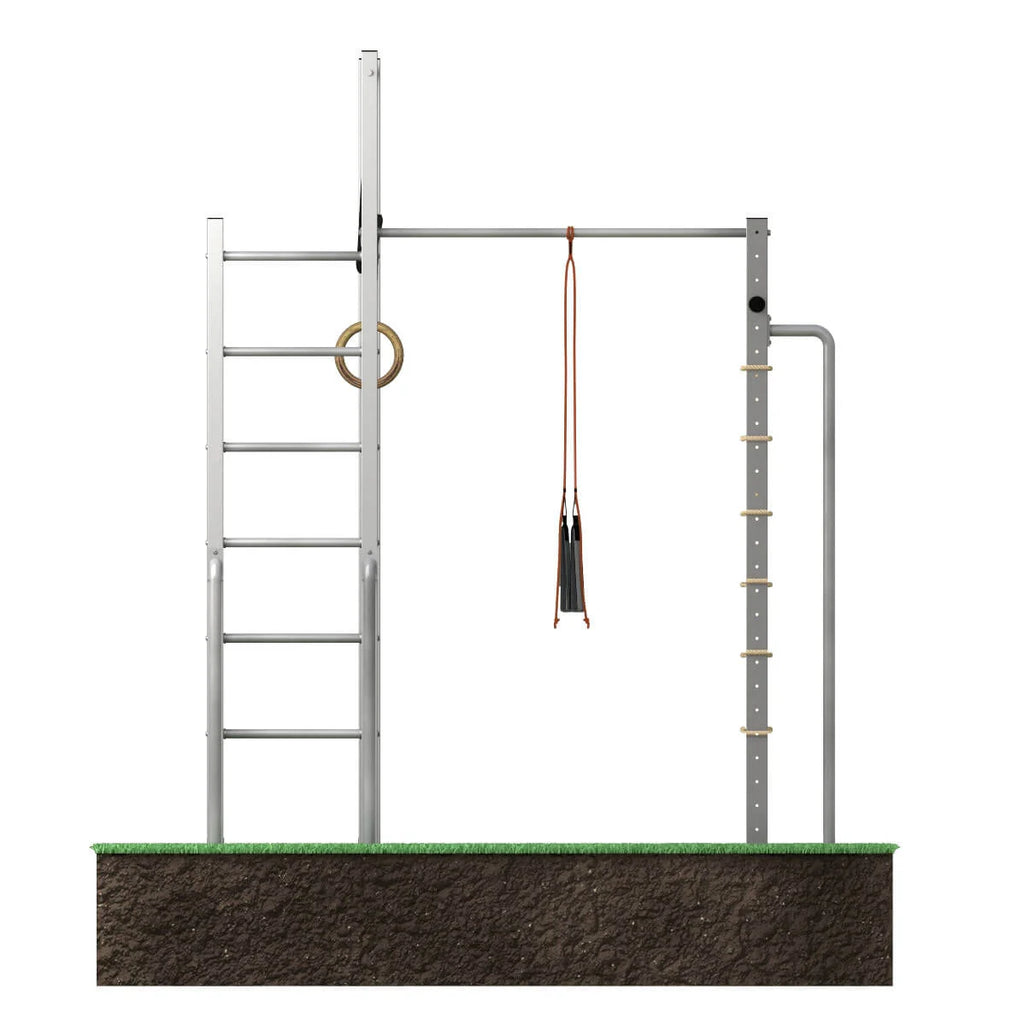

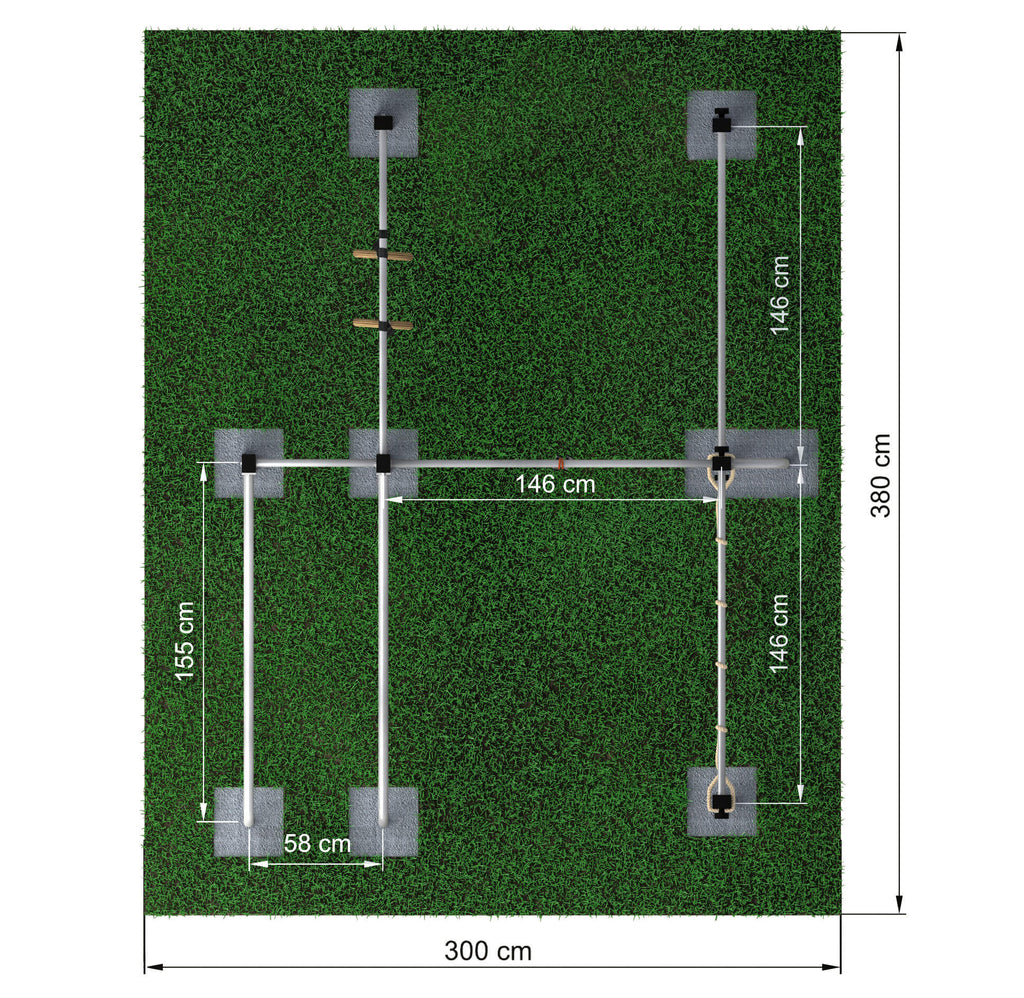

Construction sketch

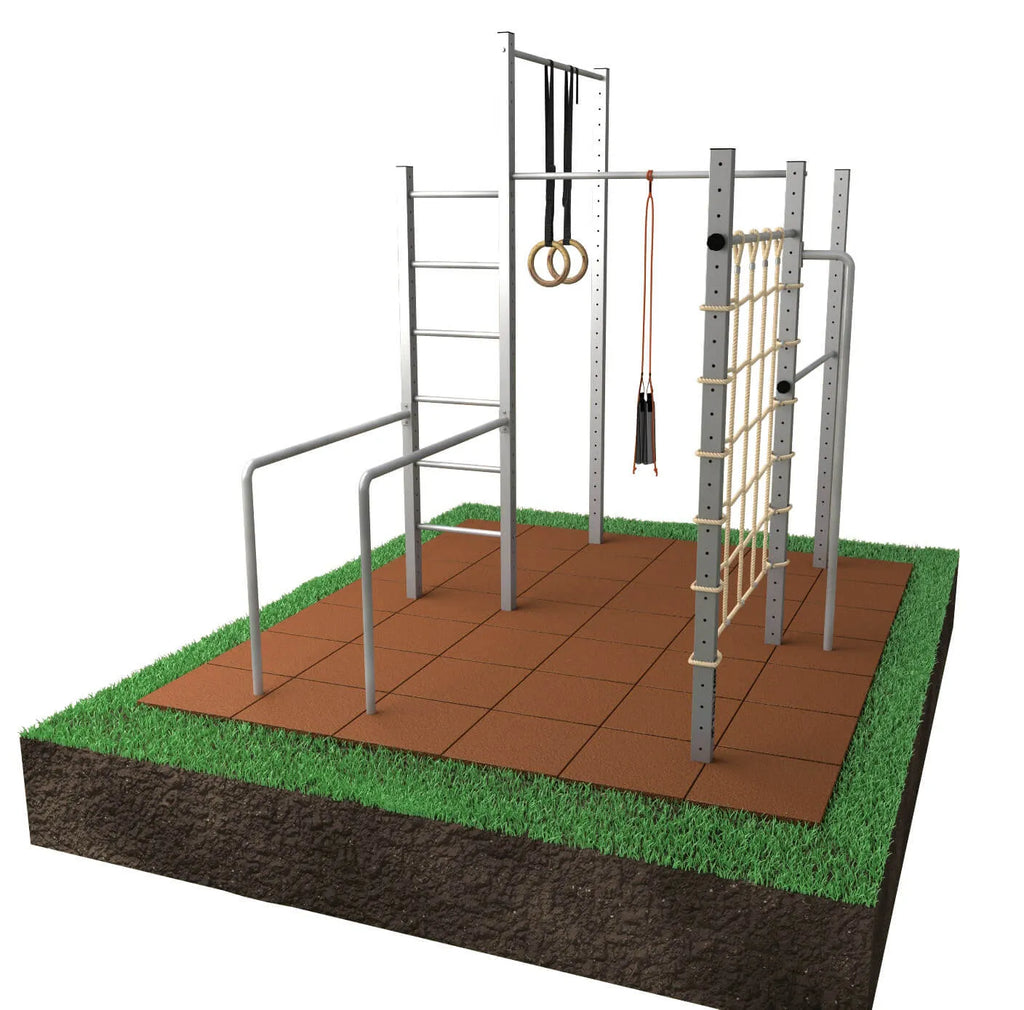

Floor design with fall protection panels
Use of threaded rods
Technical data
| Weight | 175,000,000 kg |
|---|---|
| rung ladder |
with rung ladder |
| Dip bars |
with dip bars in length 150 cm, height 110 cm or 120 cm mountable, diameter 43 mm |
| 3 meter special height |
a bar in special height 300 cm for gymnastic rings |
|
Gymnastic bar height
From 3-year-old toddlers to adults, our gymnastics bars always fit. Adjustable bar heights standard version: 90, 110, 130, 150, 170 cm |
Gymnastic bar adjustable in 9 cm increments between 15 and 240 cm (optionally 300 cm) |
| recommended floor space |
310 x 430 cm |
| Post dimensions and wall thickness |
80 x 60 x 3 mm |
| Human Flag Pole |
Human flag included |
| Dip bar dimensions |
Length 150 cm, height 110 cm or 120 cm, diameter 43 mm |
| Load per element |
up to 150 kg per training element |
| Design of the gymnastic bars |
made of ground V2A stainless steel, diameter 33.7 mm, wall thickness 2.5 mm, length 140 cm |
| Rung ladder dimensions |
Width 52 cm, diameter 30 mm, consisting of 6 rungs individually adjustable |
| Floor space according to DIN EN 16630 when installed in public areas |
750 x 600 cm – 45 sqm |
| Brands |
TOLYMP |
