Description

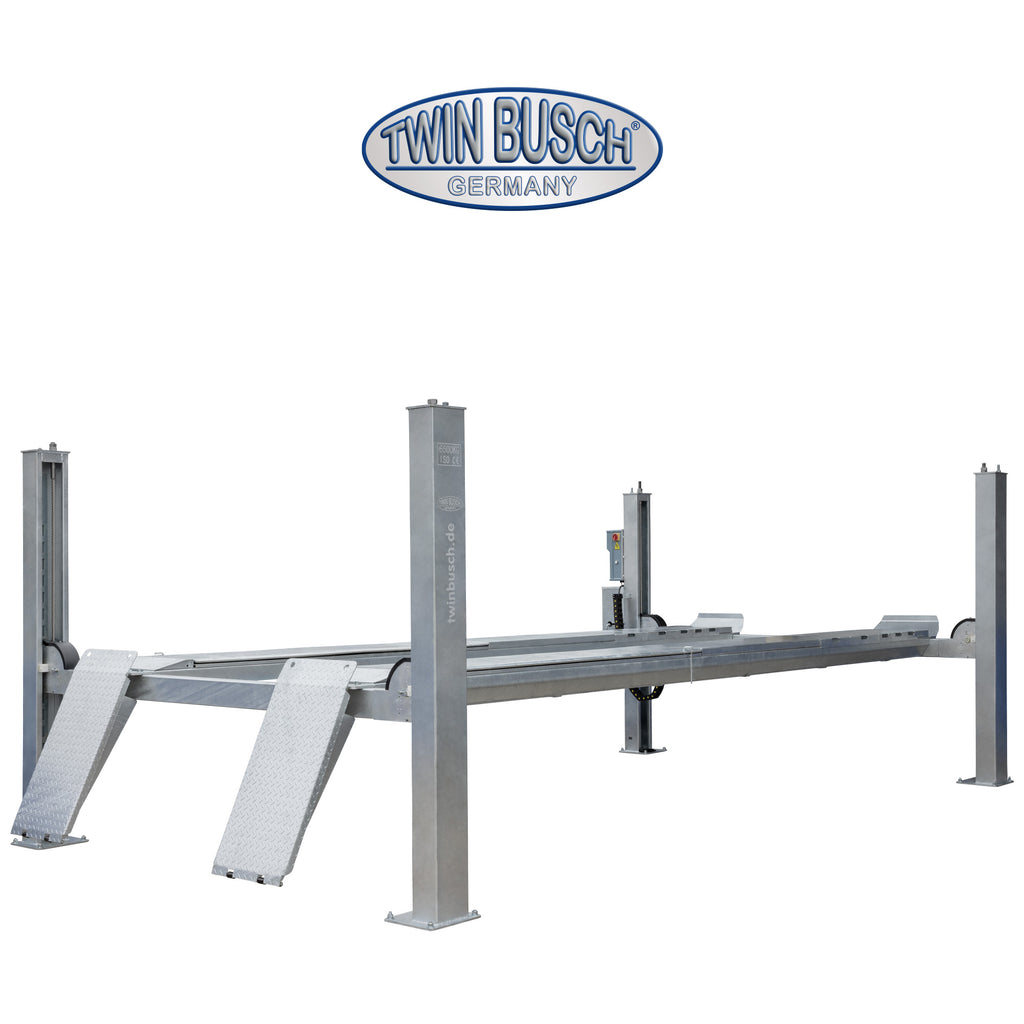

Electro-hydraulic 4-post lift with automatic release of the safety latches.

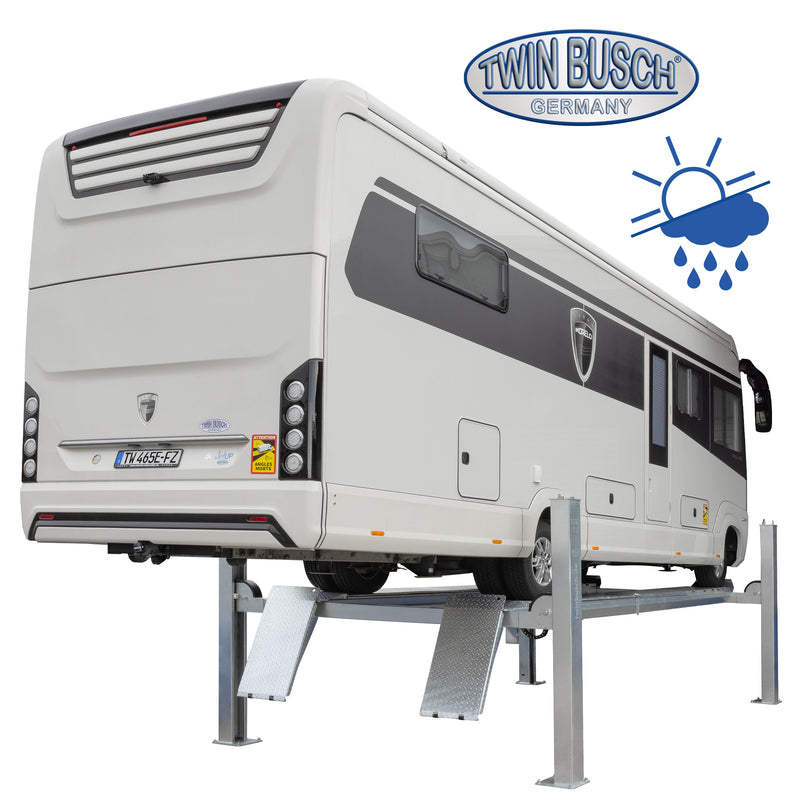

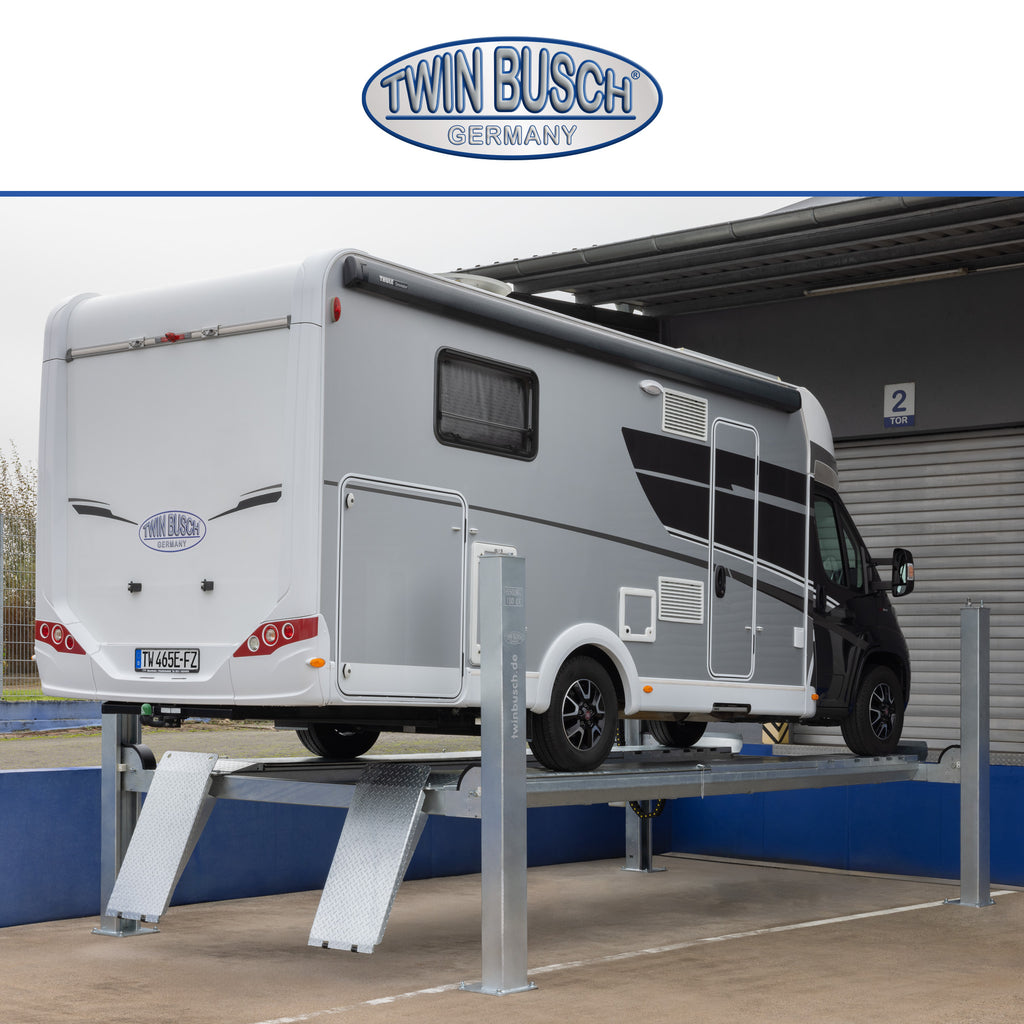

The TW465E-FZ is specifically designed for outdoor use. It is fully galvanized, providing optimal protection against corrosion. It is ideally suited as a vehicle reception or wheel alignment lift. With a lifting capacity of 6500 kg, it can lift everything from cars to vans.
For outdoor use, we offer a conversion kit TW465E-MKA as an option.
By converting or installing the conversion kit to a mobile control unit, the electrical components and motor can be stored in a dry environment, thus making the TW465E-FZ usable outdoors.
Special features
- Top-quality workmanship with CE certificate for UVV approval
- Production after ISO 9001
- 6500 kg Lifting capacity
- Automatic safety locking and unlocking
- IP 54 control box with 24V control unit
- 24V limit switch
- Hydraulic overload valve
- Vehicle roll-off protection
- Detent positions across the entire stroke height
- slack rope and rope break safety device
- Sliding panels
- NEW: Includes engine cover
(Stylish design, protection against dust and noise reduction) - Acoustic warning device
Technical data
A notice:
This product requires a higher mains voltage for proper operation and is not equipped with a standard two-prong plug. Installation of non-plug-in devices must be carried out by the respective network operator or a registered specialist company, who can also assist you in obtaining any necessary approval from the network operator for the installation of the device.
TW465E-FZ - Overview
Hot-dip galvanized
The entire construction, including bolts and screws, is hot-dip galvanized and therefore optimally protected against corrosion.

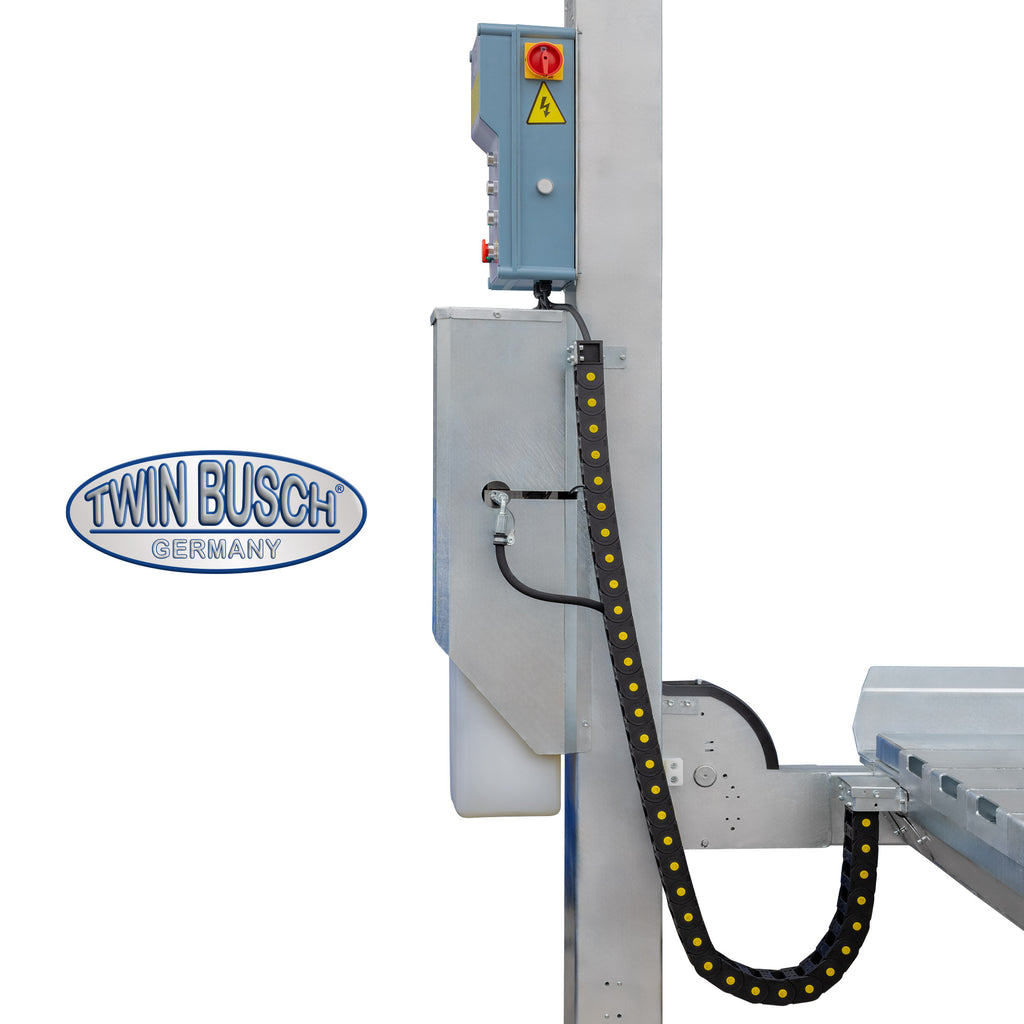

control unit
The convenient control unit (protection class IP 54, 24 V control voltage) is equipped with a limit switch for limiting the stroke height and an automatic safety device for safe working.
electric motor
Powerful, industrial-grade electric motor, protected behind a robust motor cover.
Unlocking
Automatic unlocking of the safety latches via safety release.
Access ramps
Flexible, wide and extra-long ramps allow for effortless access to the lifting platform and are therefore also ideal for vans.
Roll-off protection
Vehicle roll-off protection devices prevent the vehicle from rolling off the ground, thus ensuring additional safety.
insert plates
The 4-post lift is equipped with insert plates that increase the versatility of the lift and allow for quick and precise positioning of optional accessories, such as turntables.
Accesories TW465E-MKA
Conversion kit TW465E-MKA to a mobile control unit for outdoor use to TW465E-FZ.

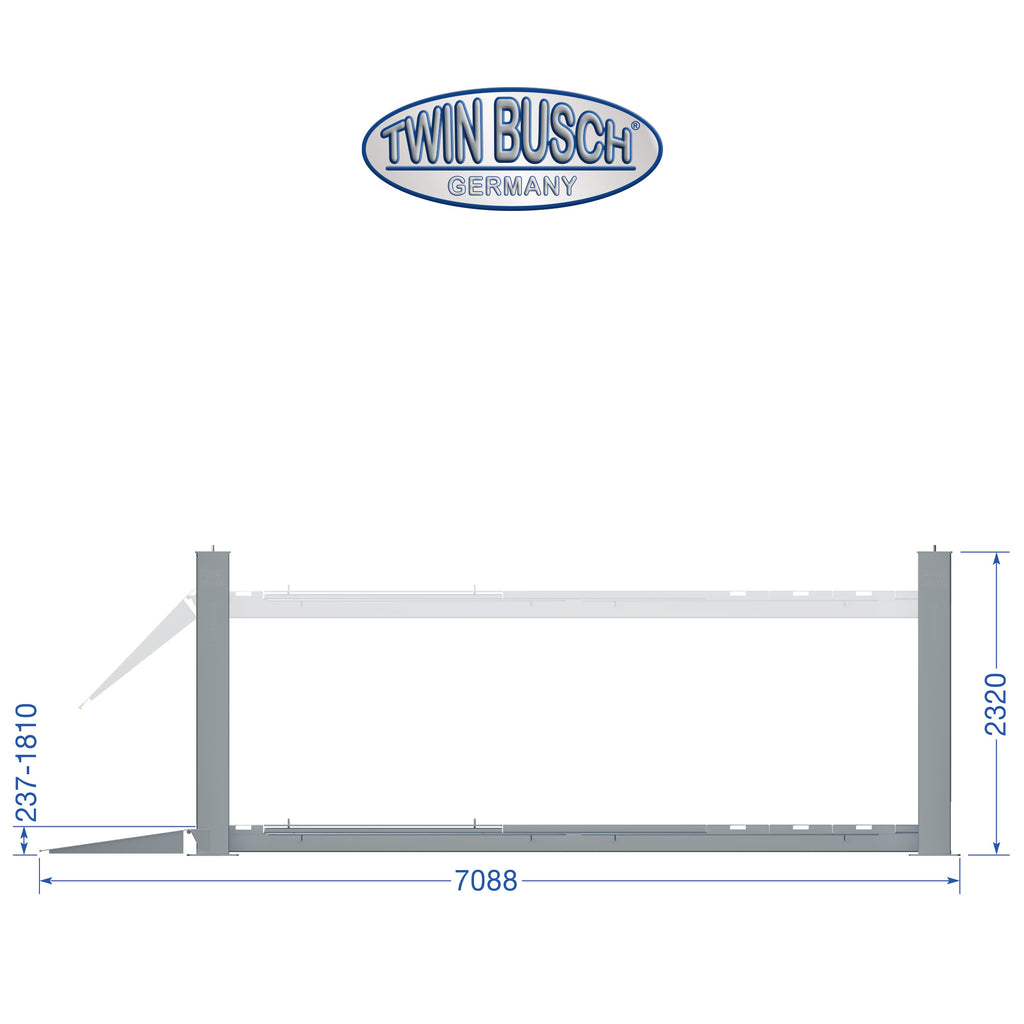

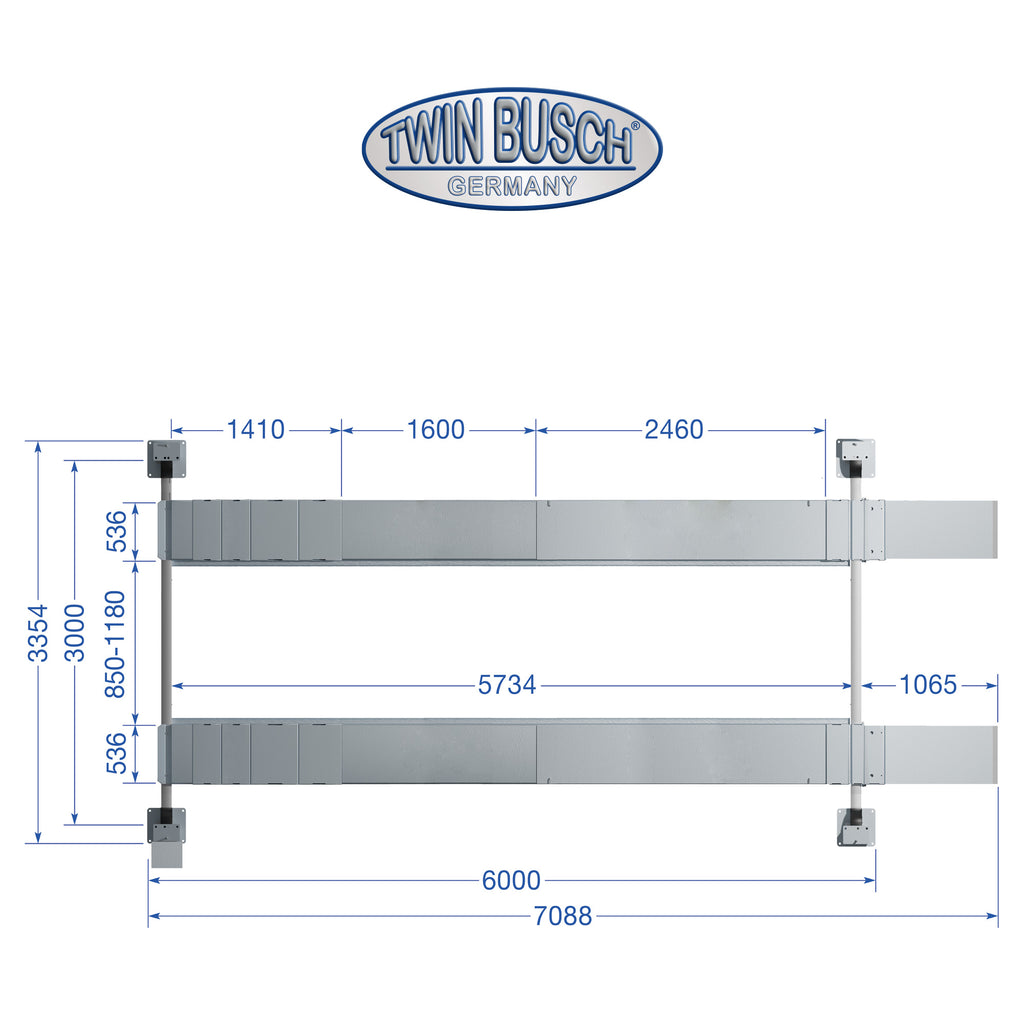

Product dimensions
Scope of delivery
- Lifting platform including motor unit
- German operating and assembly instructions
- Inspection log and CE certificate for UVV acceptance
- 16 x Heavy-duty anchors M16 (16 mm drill bit required)
- Oil not included - can be ordered separately (capacity: 12L)
- Vehicles not included in the scope of delivery
