Description

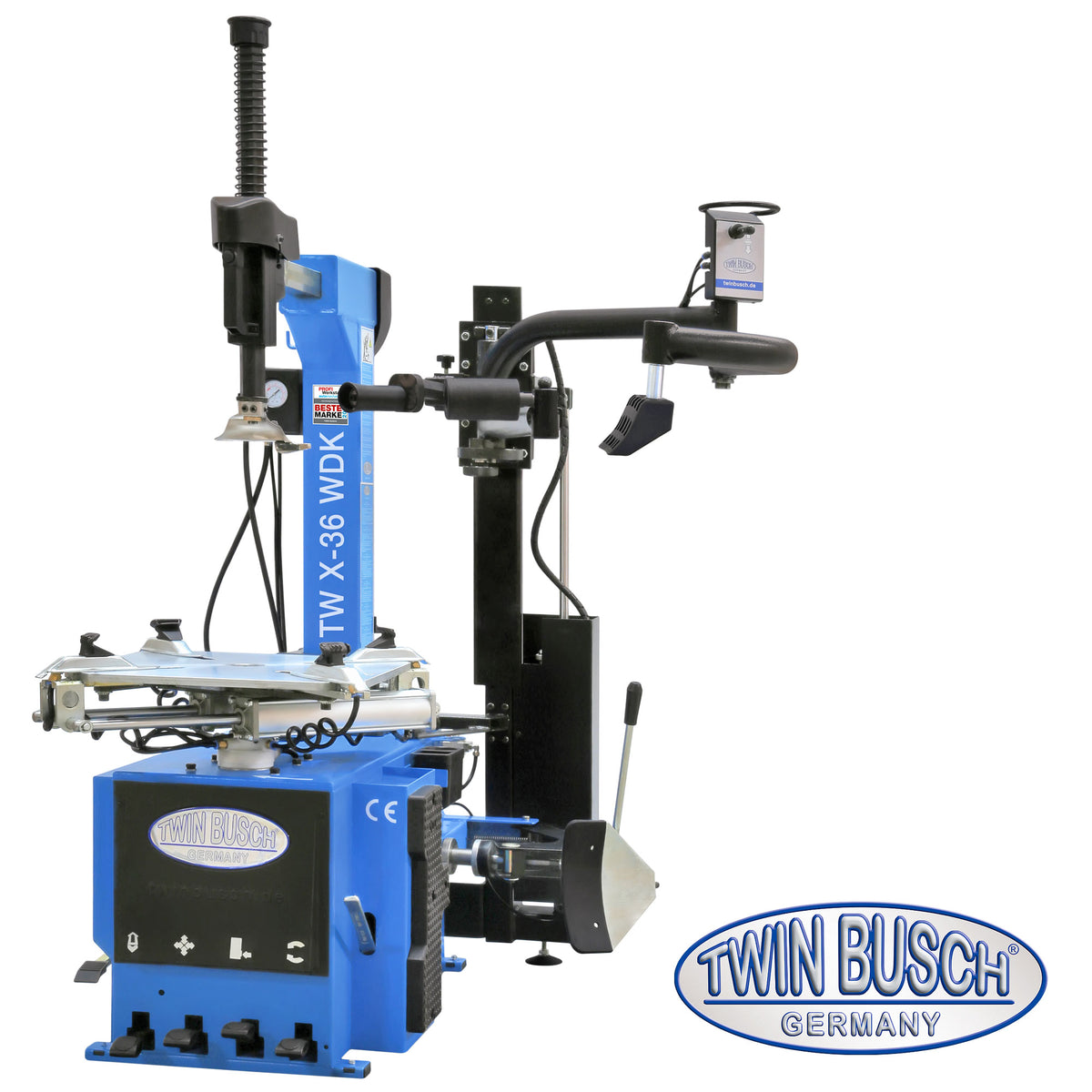

TWX-36WDK 2 Speed with WDK certificate!
Tire mounting machine with pneumatic tiltable mounting arm and built-in air booster.
For standard, Low-profile, UHP and run-flat tires.
TW X-36 WDK with auxiliary mounting arm. The TW X-36 WDK is a professional-grade tire mounting machine, tested according to the strictest WDK guidelines.
The TWX-36WDK features many additional features, such as the auxiliary mounting arm with 2 bead breaker rollers, specially shaped bead breaker, extra strong tire bead breaker, bead breaker limiter, 2 speed rotation (7 and 14 rpm), lockable bead breaker, bead breaker chain, rim protection and a WDK certified mounting iron.
The TWX-36WDK is a professional and careful disassembly and assembly guaranteed.
Special features
- With WDK certificate
- Excellent build quality
- Production after ISO 9001
- 2 Speed rotation speed (7 and 14 rpm)
- Rearward tilting mounting arm
- Massive construction
- Rim and tire-friendly mounting according to WDK guidelines
- Pneumatic locking of the mounting head
- Powerful side-mounted pressure cylinder (3000 kg)
- Self-centering 4-claw clamping system
- Large clamping range for cars and small vans, from 12" (305 mm) outside to 26" (661 mm) inside.
- Built-in air booster in the clamping jaws
- Replaceable plastic glides for the mounting head to protect the rims.
- Powerful electric motor for forward and reverse operation
- Clamping jaws made of special steel
- High-quality control block for sensitive tensioning with stop function
- Internal parts made of stainless steel (advantage: no rust)
Technical data
A notice:
This product requires a higher mains voltage for proper operation and is not equipped with a standard two-prong plug. Installation of non-plug-in devices must be carried out by the respective network operator or a registered specialist company, who can also assist you in obtaining any necessary approval from the network operator for the installation of the device.
TWX-36WDK - Overview
Load 3D model
Load 3D model

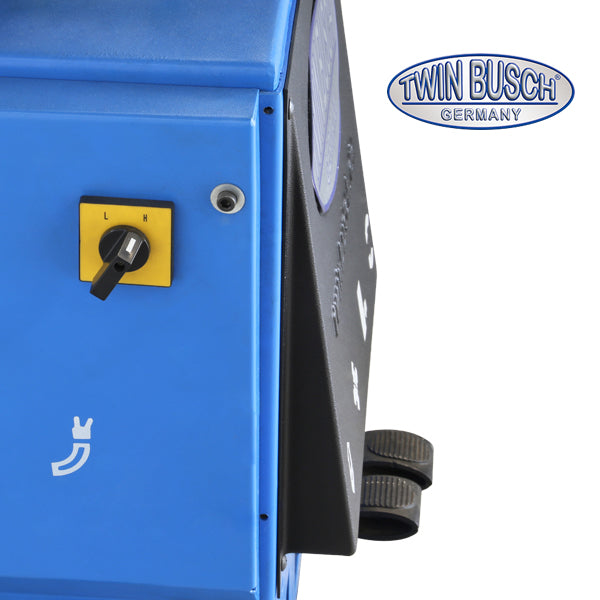

2-Speed
The TWX-36WDK features a 2-speed rotation speed of 7 and 14 rpm. These settings allow for precise and efficient mounting and dismounting of tires.
clamping jaws
Self-centering 4-jaw clamping system with a large clamping range from 12" (305 mm) outer diameter to 26" (661 mm) inner diameter for cars and light commercial vehicles, made of special steel for high stability and durability. The integrated air booster in the clamping jaws ensures efficient and powerful clamping force during tire mounting.
pressure cylinder
A powerful side-mounted bead breaker cylinder with bead breaker limiter and a bead breaker force of 3000 kg ensures efficient and powerful bead breaking of tires.
Monday head

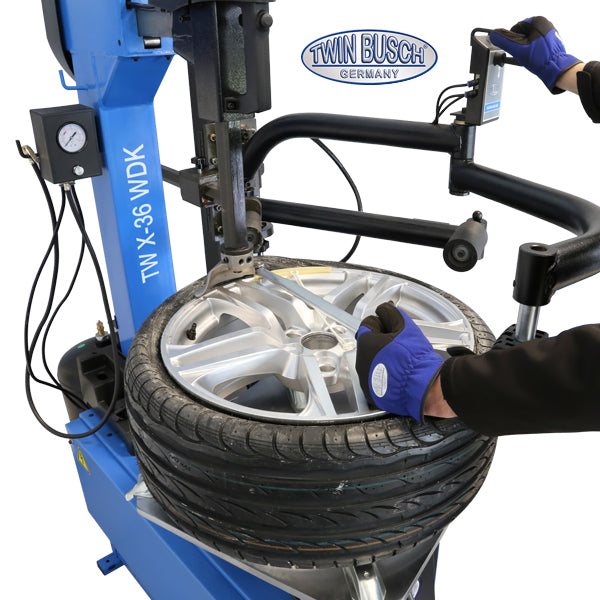

The specially shaped mounting head ensures precise and secure tire mounting. With replaceable plastic glides, it protects the rims from damage and adapts to different rim types to guarantee quick and efficient tire mounting.
Mounting arm 1
The auxiliary assembly arm is equipped with two hold-down rollers and a special push-down device.
Mounting arm 2
The pneumatically tiltable mounting arm with automatic distance control ensures a distance of 2-3 mm, thus enabling gentle mounting of the rim.
tire inflator
Comfortable and easy-to-use tire inflator for simple and precise tire inflation.
pedals
Five conveniently operable foot pedals enable intuitive and ergonomic operation of the tilting arm, direction of rotation, clamping jaws, tire inflator and tire bead breaker functions.
Accesories TW1530MP
The original TWIN BUSCH tire mounting wax TW1530MP makes mounting easier and supports subsequent dismounting.
Product dimensions

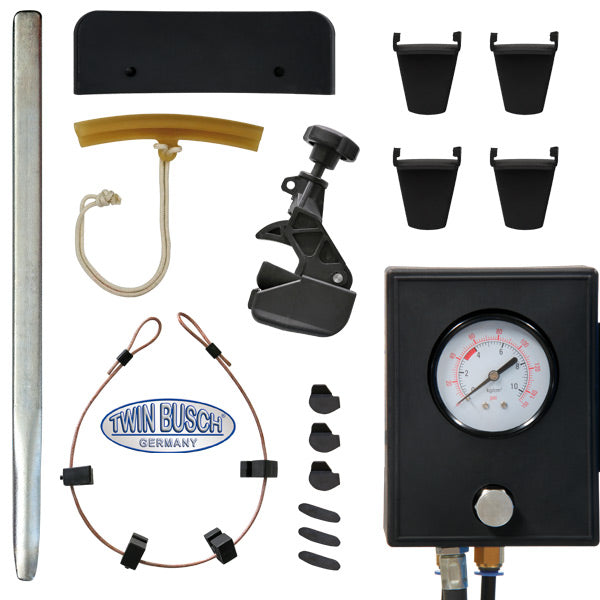

Scope of delivery
- Tire mounting machine with maintenance unit
- Tire inflator and tire iron according to WDK specifications
- Rim protection
- bead depressor lockable
- Bead depressor chain
- Pressure limiter
- Plastic protective jaws for clamping jaws (4 pcs.)
- 3 sets of plastic glides for mounting head (alloy wheels)
- User manual
- Online product video
- Online assembly video
- FREE online e-learning videos
