Description

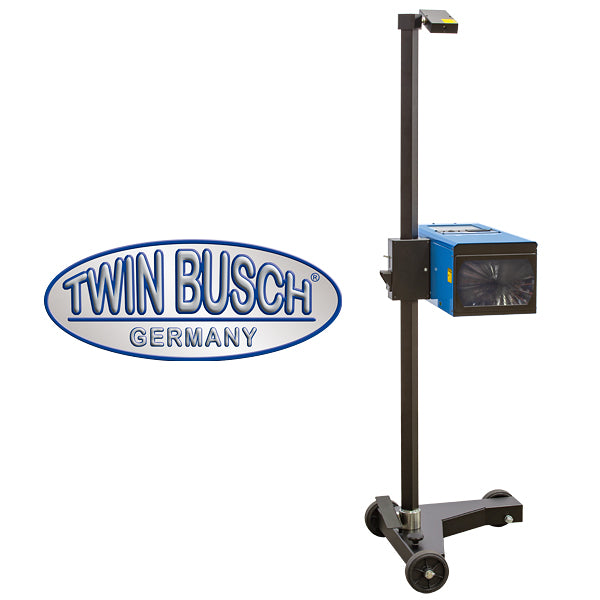

Our TWSWE-A-PRO complies with the latest guidelines for checking headlight alignment.
It is equipped with a handwheel with markings, allowing for easy adjustment and calibration of the main and fog lights. The device also features a digital lux meter, laser sight, and... including type approval by TÜV (with type approval number TP).
The TWSWE-A-PRO offers the following advantages over the TWSWE-A:
It has a laser sight, laser pointer, a measuring scale on the pole, a foot pedal with a rotating function for the pole, and a horizontal and vertical adjustment scale.
The TWSWE-A-PRO is suitable for LED lights, full LED lights, and assistance systems.
It also has a spirit level and an adjustable axis (tilt angle).
Maximum vehicle headlight height: 1.20 m
Special features
- Officially approved with type approval by TÜV (with type approval number TP)
- For all vehicle categories such as cars, commercial vehicles and two-wheelers
- Laser thread sight for precise alignment and positioning
- Pole with measuring scale for precise height positioning
- 2 height-adjustable axles
- Laser pointer for precisely determining the headlight center
- Bar with foot pedal (rotatable)
- Suitable for all light sources such as incandescent, halogen, xenon, LED
- Adjustable axis tilt angle
- spirit level
- One-hand adjustable light box with automatic locking mechanism
- Integrated lux meter for measuring light intensity
- Optional accessories:
Protective cover against dust and dirt
Technical data
TWSWE-A-PRO - Overview
light bulbs
Suitable for all light sources such as incandescent, halogen, xenon, LED light, full LED light as well as assistance systems.

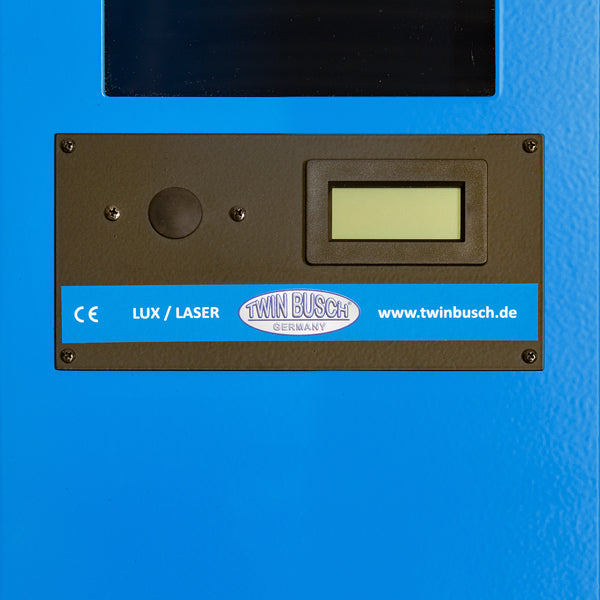

Lux meter
An integrated digital lux meter ensures precise measurement of light intensity directly on the headlight aiming device. The integrated laser pointer serves to accurately determine the headlight center and supports precise alignment.

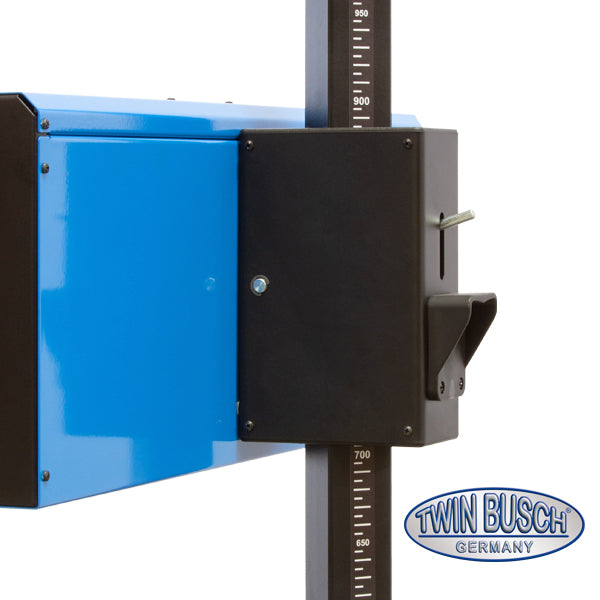

One-hand adjustable light box
The light box, which can be adjusted with one hand, features an automatic locking mechanism.
handwheel
The TWSWE-A-PRO is equipped with a handwheel with markings, which allows for easy adjustment and precise fine-tuning of main and fog lights.
Laser sight
The laser sight is used for the precise alignment of the vehicle in front of the headlight aiming device.

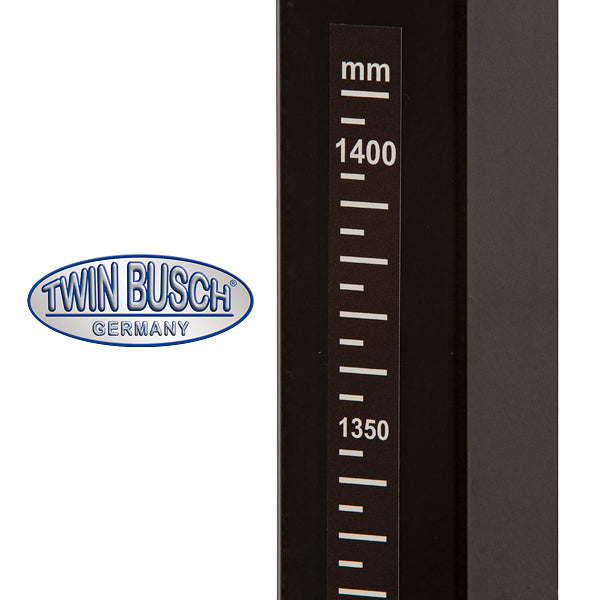

Measuring scale
The integrated measuring scale on the pole ensures precise height adjustment.
foot pedal
The pole can be rotated via a foot pedal, thus allowing for convenient alignment.
Flexible positioning
Three wheels allow for flexible positioning and easy maneuvering of the TWSWE-A-PRO.
Scope of delivery
- Headlight aiming device
