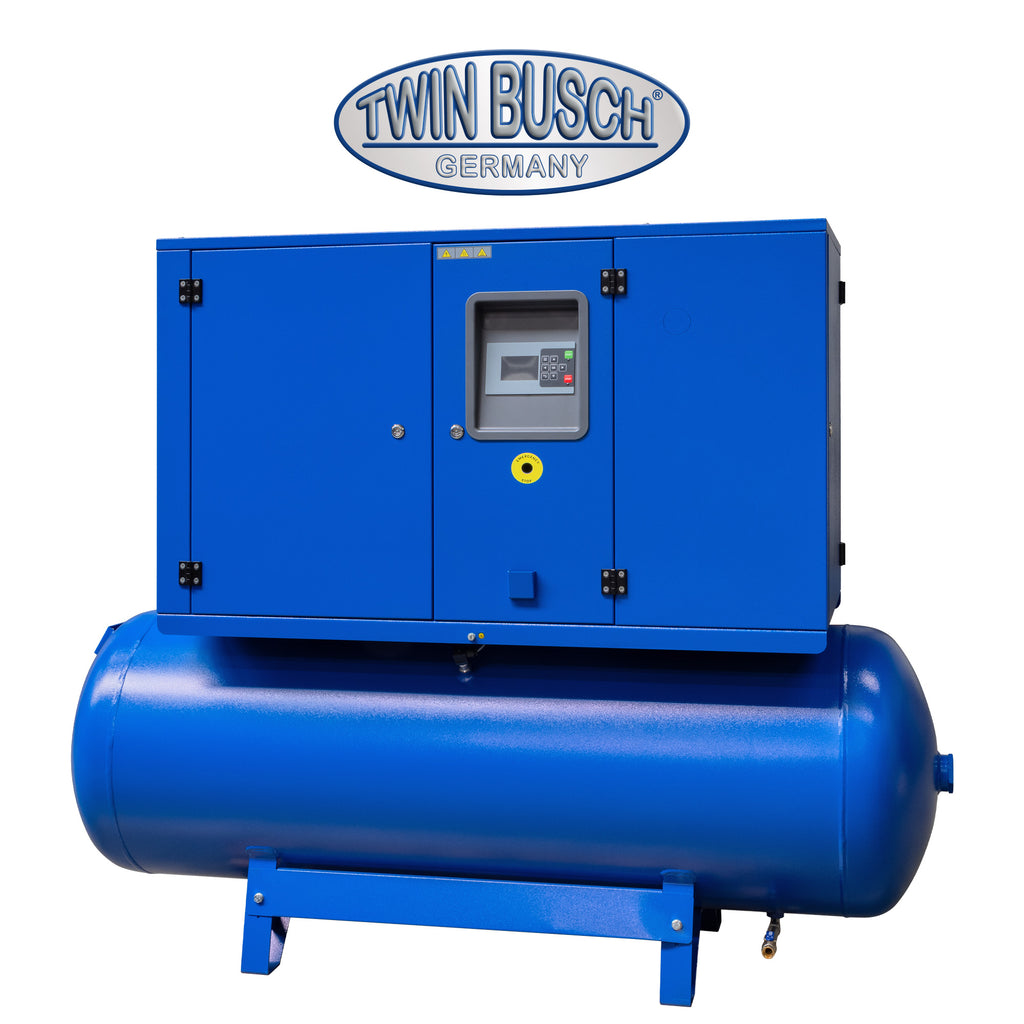

Horizontal screw compressor 500 L - TWKL-500S

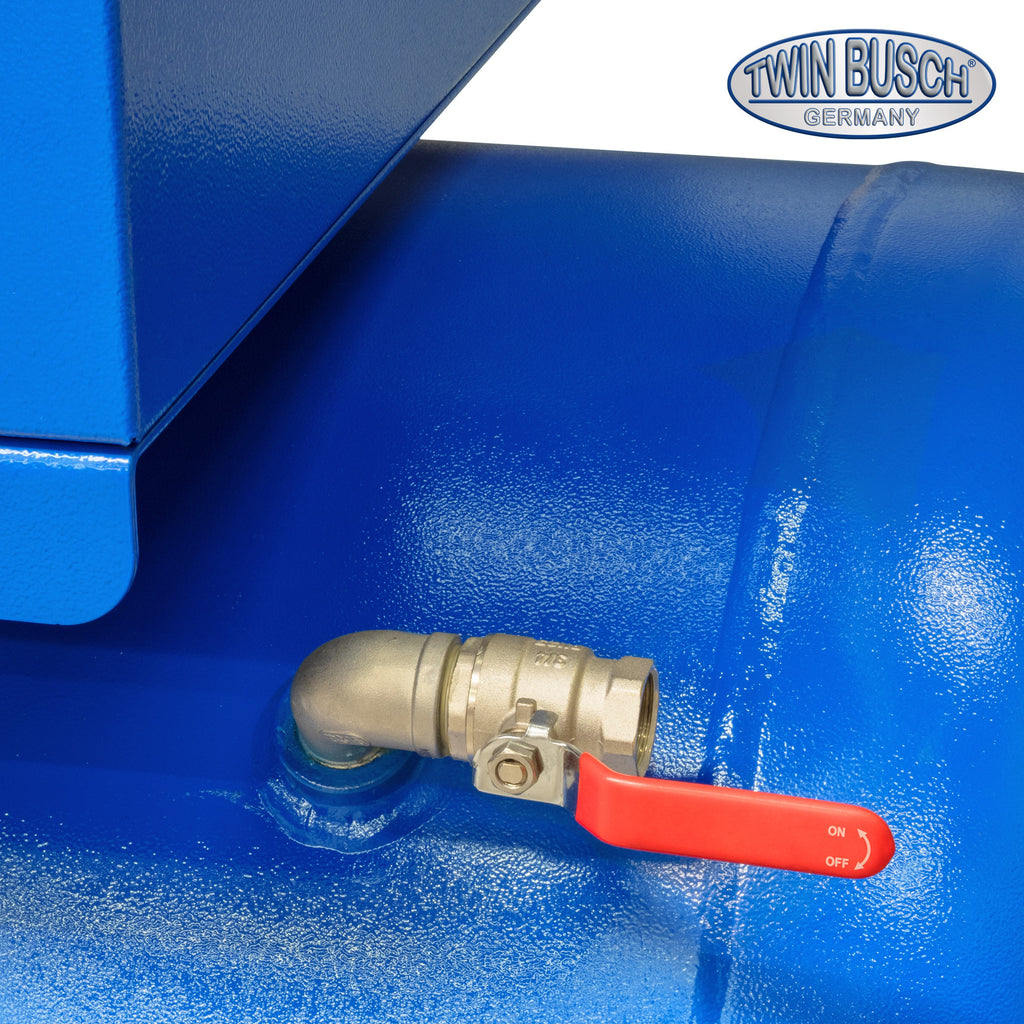

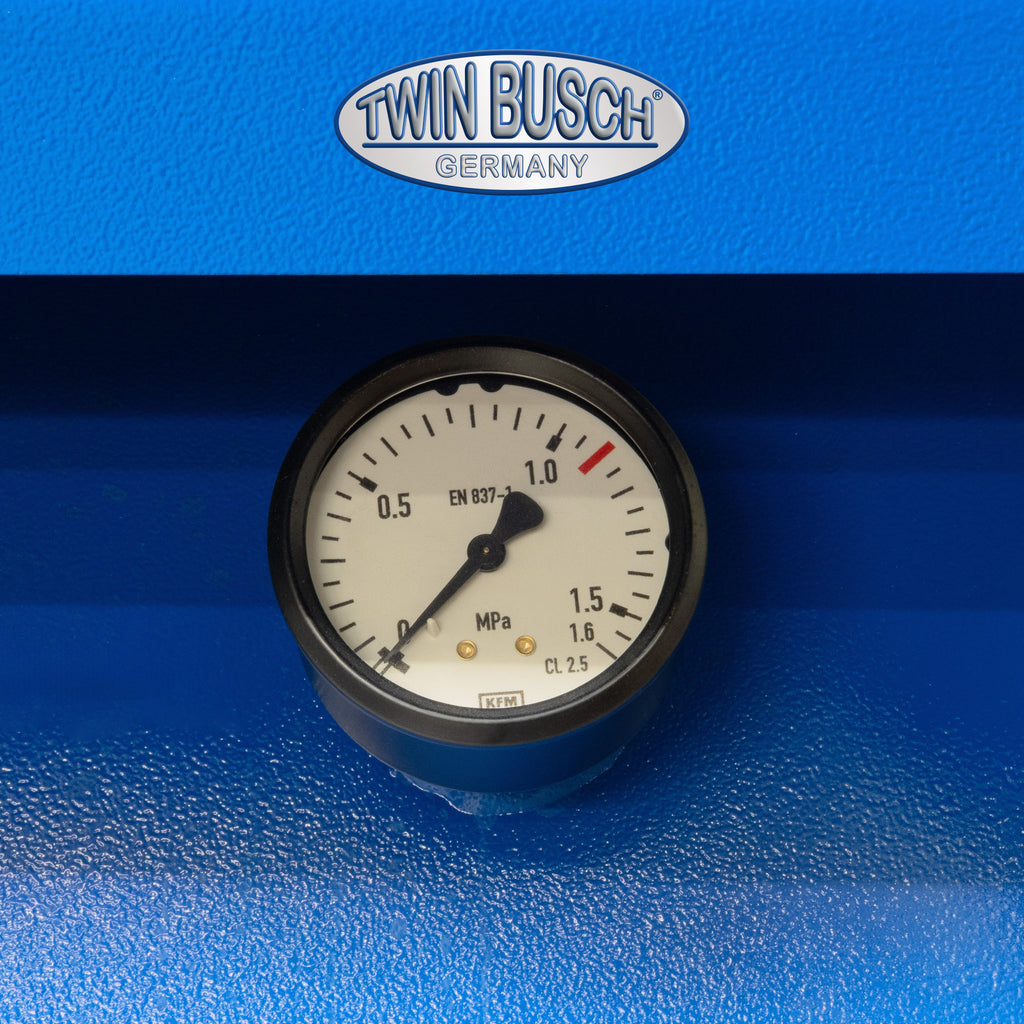

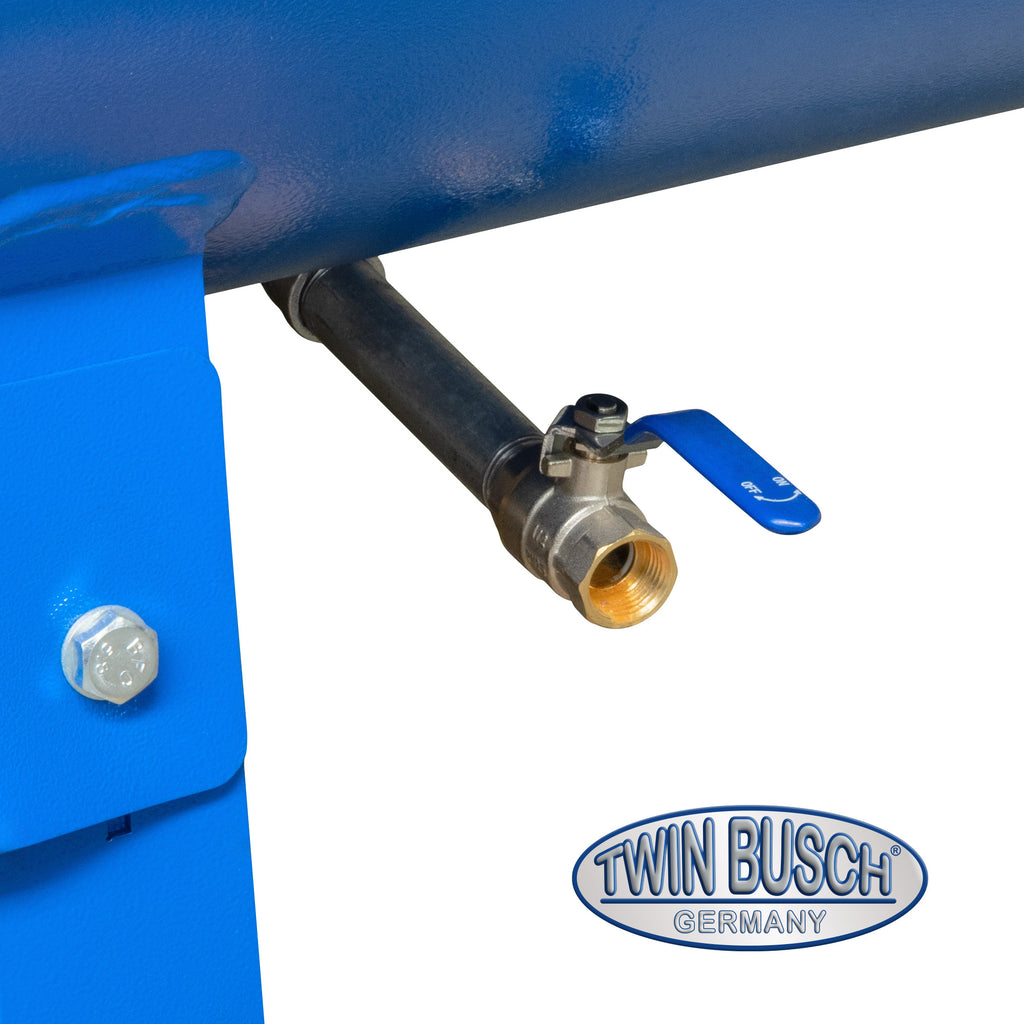

Fully equipped with check valve, adjustable pressure switch with ON/OFF switch, including motor protection and start-up relief, safety valve, pressure gauge, ball valve and condensate drain, including test certificates for boilers .
Special features
- screw compressor
- 500-liter boiler

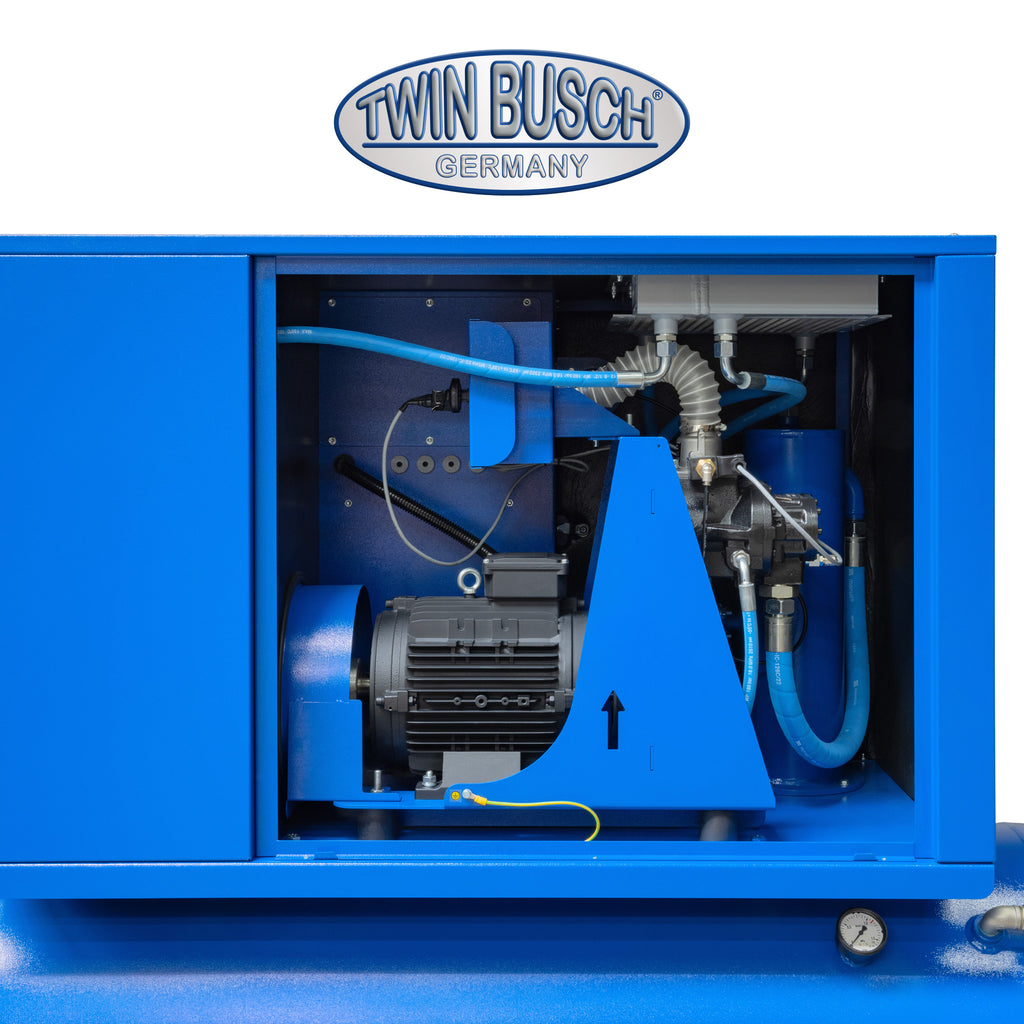

- Electric motor with 7.5 kW 400 V

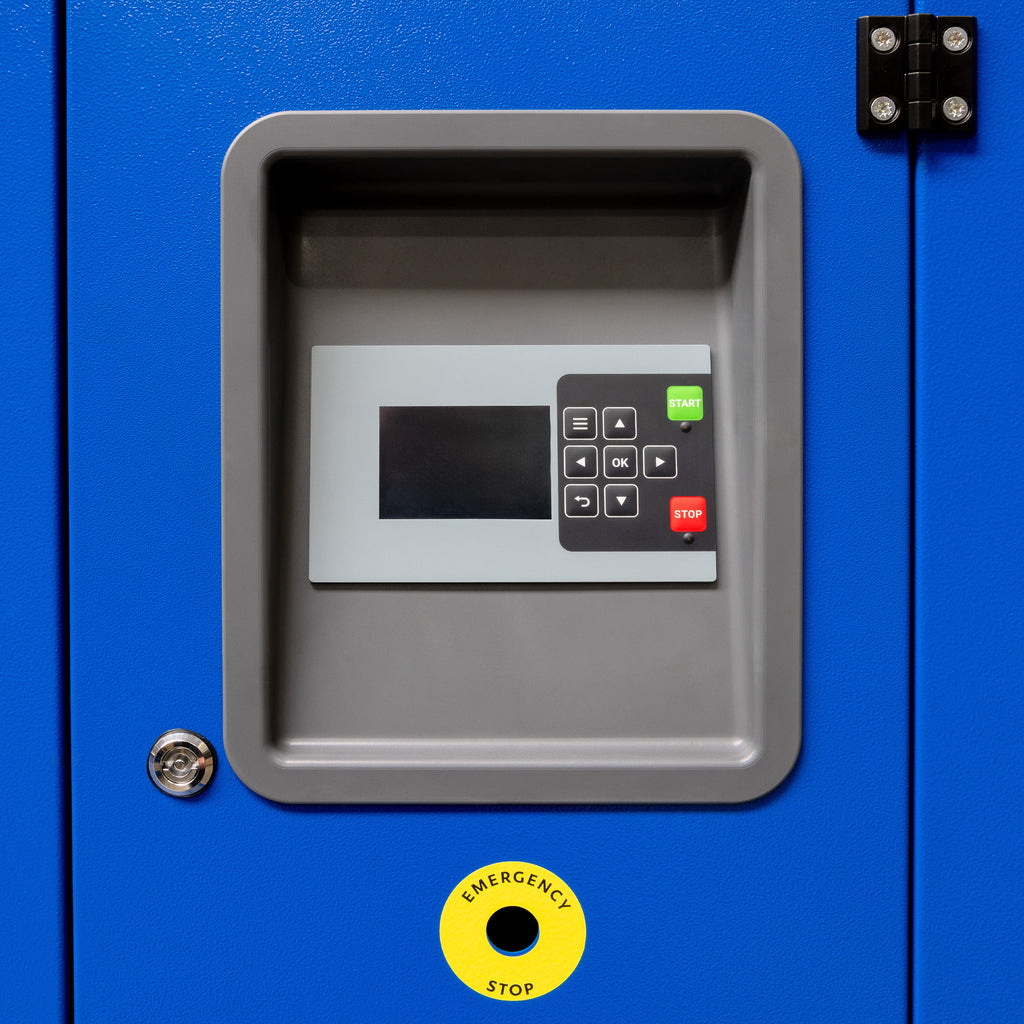

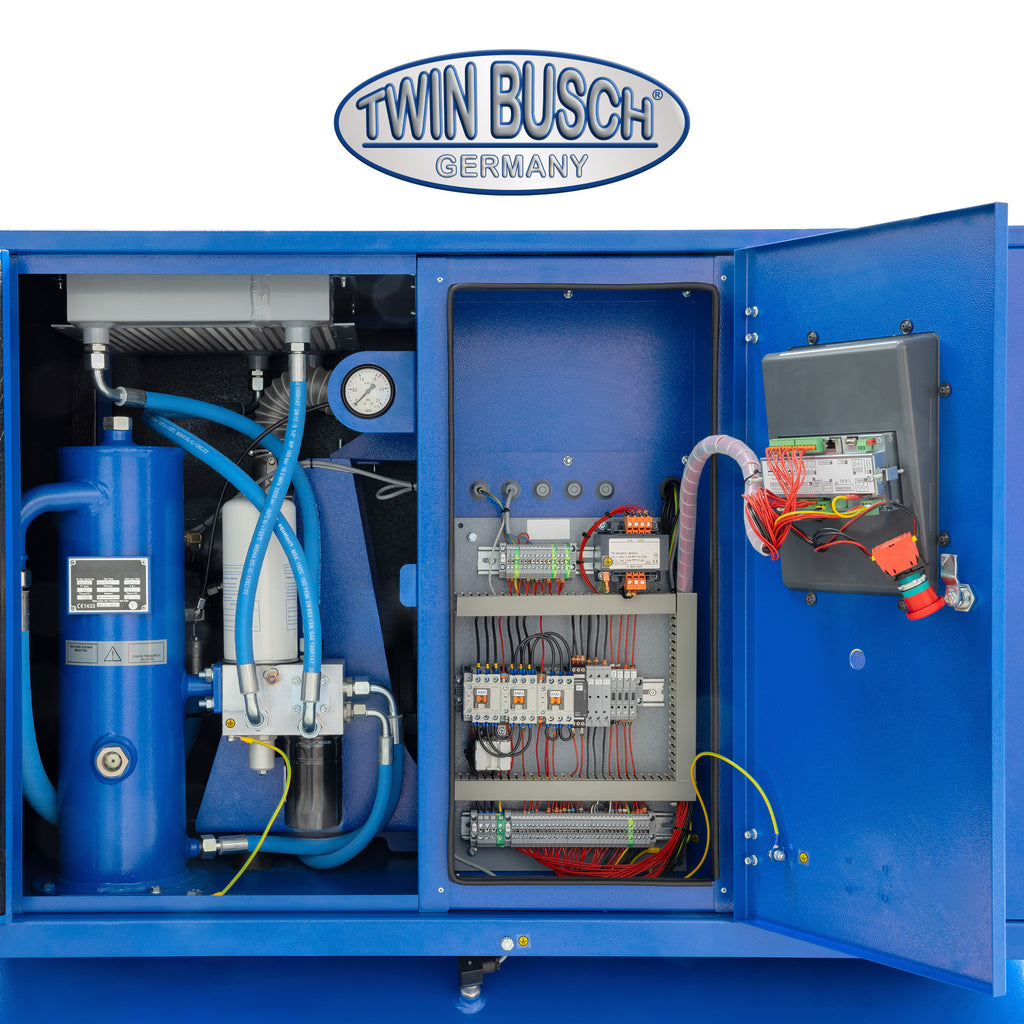

- Electrical control cabinet (IP 54) with pressure sensor
- Effective delivery rate 1.13 m3/min
- Protection: C32
- Working pressure: 10 bar
- Dimensions: 1912x660x1560 mm
- Sound level dB(A) 72
- Compressed air connection G 3/4"
- Ambient temperature (°C) +5 to +40
- Compressed air temperature (°C) approx. 10 degrees above ambient temperature
- Weight: 370 kg
A notice:
This product requires a higher mains voltage for proper operation and is not equipped with a standard two-prong plug. Installation of non-plug-in devices must be carried out by the respective network operator or a registered specialist company, who can also assist you in obtaining any necessary approval from the network operator for the installation of the device.
Scope of delivery
- screw compressor
- Test certificates for boilers
