Description

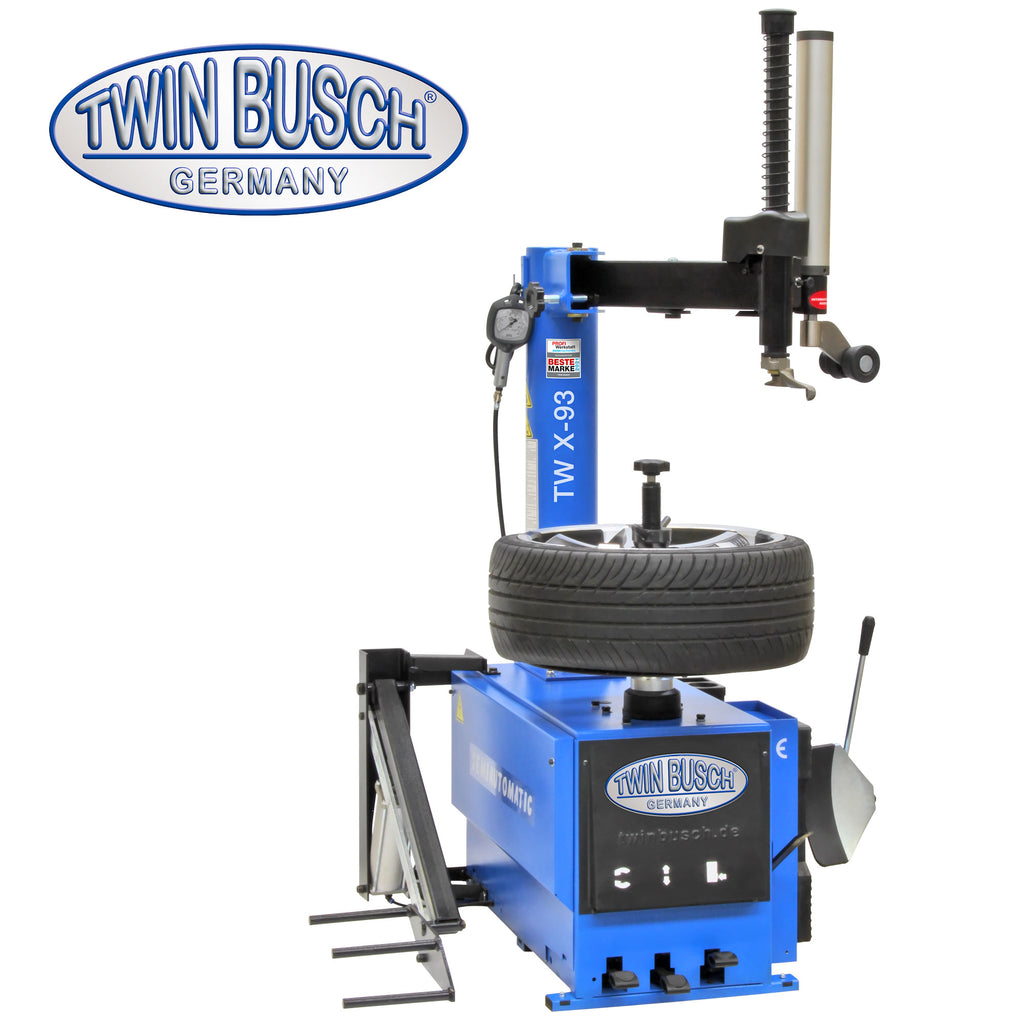

Semi-automatic tire mounting machine - TWX-93
Top tire mounting machine with innovative clamping system
Ideal for sensitive wheels such as aluminum wheel clamping via center hole with centering cone (4 pcs. included) and quick locking via a quick-release system.
NEW: Bead press and edge protector worth €46.70 FREE Join us!
Special features
- Excellent build quality
- Production after ISO 9001
- Wheel clamping via center hole with centering cone (4 pieces included)
- The mounting shaft (with trapezoidal thread) is locked into the base via a bayonet system.
- 1 auxiliary mounting arm for professional use
- Wheel lifter for fast and convenient work
- Side-swivel mounting head
- Pneumatic locking of the mounting head in height
- The clamping nut is made of high-strength steel.
- Large clamping range
- Powerful side-mounted pressure cylinder (2500 kg)
- Powerful electric motor for forward and reverse operation
- Internal parts made of stainless steel (advantage: no rust)
Technical data
A notice:
This product requires a higher mains voltage for proper operation and is not equipped with a standard two-prong plug. Installation of non-plug-in devices must be carried out by the respective network operator or a registered specialist company, who can also assist you in obtaining any necessary approval from the network operator for the installation of the device.
TWX-93 - Overview
Load 3D model
Load 3D model
Wheel tension
Wheel clamping is achieved via the central hole with centering cone and can be quickly locked using a quick-release system, allowing for a wide clamping range. The mounting shaft (with trapezoidal thread) is locked into the base via a bayonet system.
pressure cylinder
Powerful side-mounted bead breaker cylinder with a bead breaking force of 2500 kg for efficient and powerful bead breaking of tires.
Monday head
The mounting head ensures precise and secure tire installation. With replaceable plastic glides, it protects the rims from damage and adapts to different rim types to guarantee quick and efficient tire mounting.
Auxiliary mounting arm
The auxiliary mounting arm can be swivelled laterally and has a bead roller.
Maintenance unit
Industrial maintenance unit with pressure reducer, water separator and air lubricator.
tire inflator
Comfortable and easy-to-use tire inflator for simple and precise tire inflation.
Wheel lifter
The wheel lifter enables fast and convenient work.

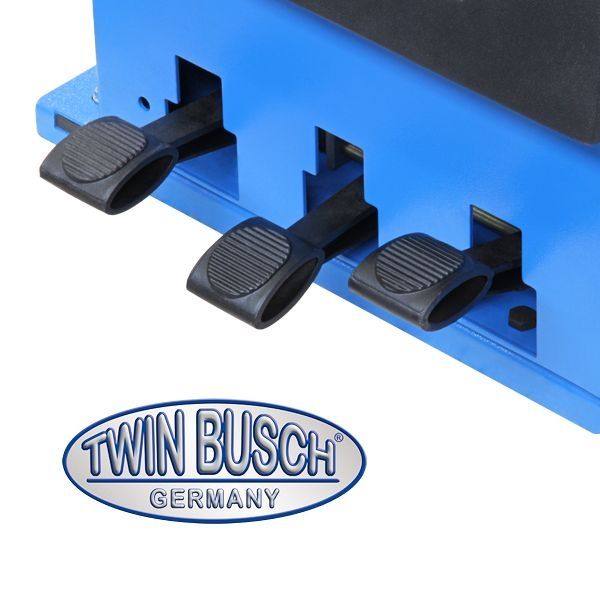

pedals
Three easily operable foot pedals enable intuitive and ergonomic operation of the rotation direction, lifting and tire breaker functions.
Components
High-quality control block with STOP function, equipped with low-wear stainless steel components (rustproof) and a quick-release valve for reliable and long-lasting performance.
Accesories TW1530MP
The original TWIN BUSCH tire mounting wax TW1530MP makes mounting easier and supports subsequent dismounting.
Accesories TWX-93H
The TWX-93H auxiliary mounting arm serves as a second auxiliary mounting arm for your TWX-93.
Product dimensions

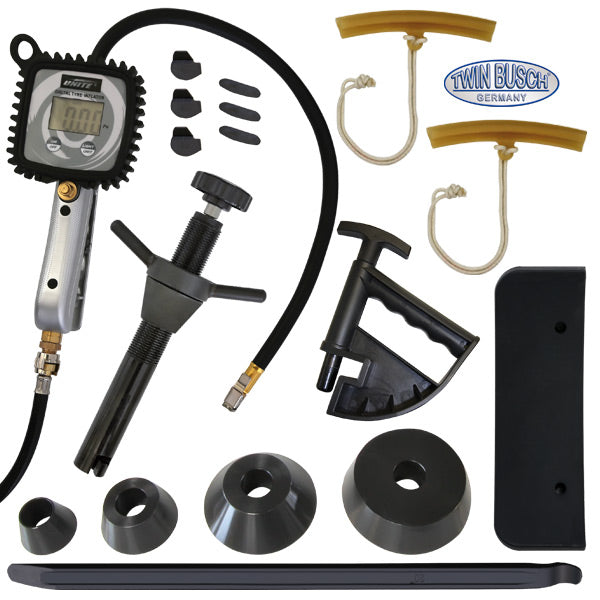

Scope of delivery
- Tire mounting machine with maintenance unit
- Tire inflator and tire iron
- Plastic protective jaws for clamping jaws (4 pcs.)
- Bead press
- Edge protection (2-piece)
- 3 sets of plastic glides for mounting head (for the protection of alloy wheels)
- Scooter board optional
- German operating and assembly instructions
- Online product video
- Online assembly video
- FREE online e-learning videos
- Tire and rim not included in the scope of delivery
