Description

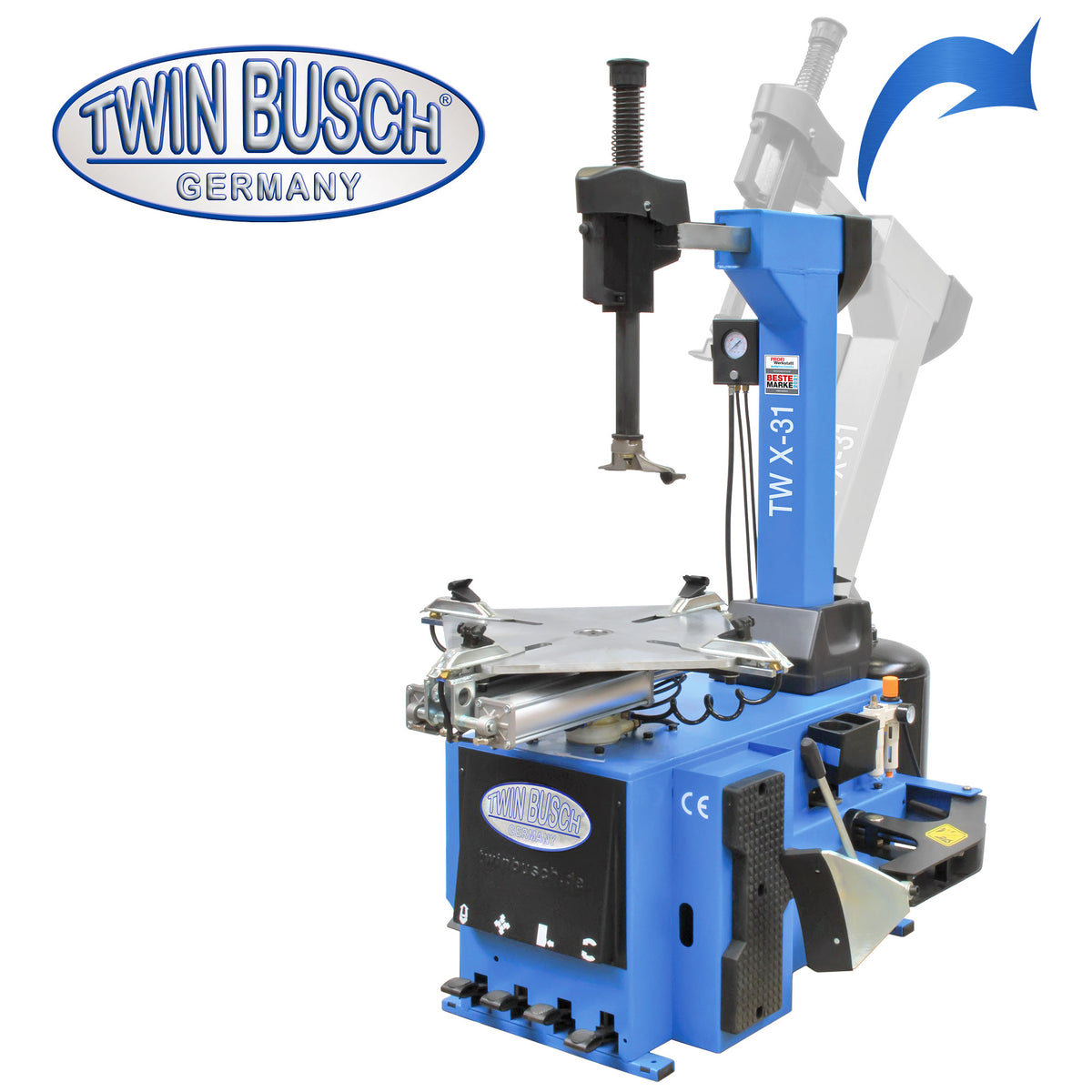

SEMI-AUTOMATIC with pneumatic tilting mounting arm TWX-31
Tire mounting machine with pneumatic tiltable mounting arm and built-in air booster. For standard and Low-profile tires.
The TWX-31 can be retrofitted at any time with an auxiliary mounting arm (TWX-31H) (becoming TWX-36) and is therefore also suitable for run-flat tires.
NEW: Bead press and edge protector worth €46.70 FREE Join us!
Special features
- Excellent build quality
- Production after ISO 9001
- Rearward tilting mounting arm
- Massive construction
- Rim-friendly installation
- Pneumatic locking of the mounting head
- Powerful side-mounted pressure cylinder (2500 kg)
- Self-centering 4-claw clamping system
- Large clamping range for cars and small vans, from 12” (305 mm) outside to 26” (661 mm) inside
- Built-in air booster in the clamping jaws
- Replaceable plastic glides for the mounting head to protect the rims.
- Powerful electric motor for forward and reverse operation
- Clamping jaws made of special steel
- High-quality control block for sensitive tensioning with stop function
- Internal parts made of stainless steel (advantage: no rust)
- Upgradeable with auxiliary mounting arms of the TW X-36
Technical data
A notice:
This product requires a higher mains voltage for proper operation and is not equipped with a standard two-prong plug. Installation of non-plug-in devices must be carried out by the respective network operator or a registered specialist company, who can also assist you in obtaining any necessary approval from the network operator for the installation of the device.
TWX-31 - Overview
Load 3D model
Load 3D model

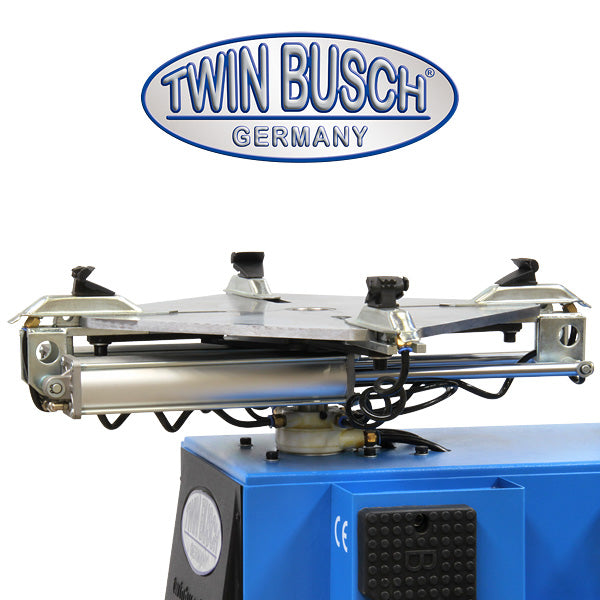

clamping jaws
Self-centering 4-jaw clamping system with a large clamping range from 12" (305 mm) outer diameter to 26" (661 mm) inner diameter for cars and light commercial vehicles, made of special steel for high stability and durability. The integrated air booster in the clamping jaws ensures efficient and powerful clamping force during tire mounting.
pressure cylinder
Powerful side-mounted bead breaker cylinder with a bead breaking force of 2500 kg for efficient and powerful bead breaking of tires.
Monday head
The mounting head ensures precise and secure tire installation. With replaceable plastic glides, it protects the rims from damage and adapts to different rim types to guarantee quick and efficient tire mounting.

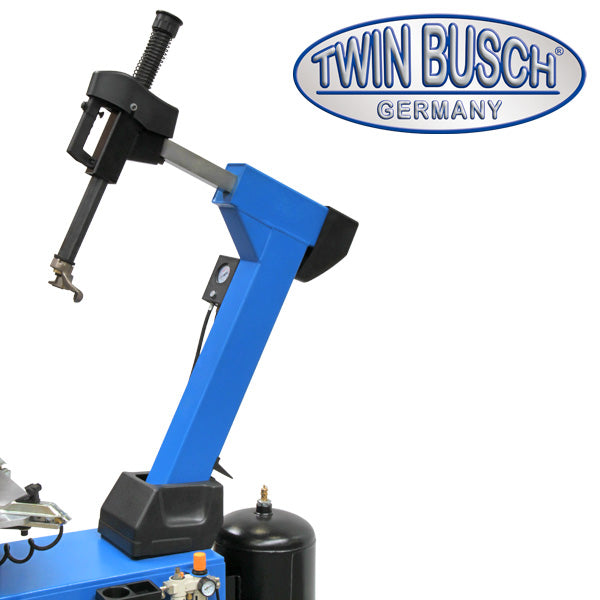

Mounting arm
The pneumatically tiltable mounting arm with automatic distance control ensures a distance of 2-3 mm, thus enabling gentle mounting of the rim.
Maintenance unit
Industrial maintenance unit with pressure reducer, water separator and air lubricator.
tire inflator
Comfortable and easy-to-use tire inflator for simple and precise tire inflation.
air tank
The air tank enables uninterrupted use of the assembly machine by providing sufficient air pressure for the assembly arm, the pedals and the air booster built into the clamping jaws.

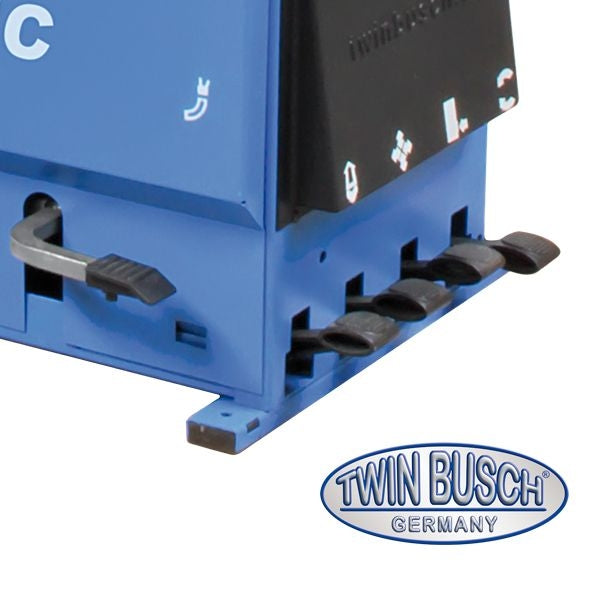

pedals
Five conveniently operable foot pedals enable intuitive and ergonomic operation of the tilting arm, direction of rotation, clamping jaws, tire inflator and tire bead breaker functions.
Components
High-quality control block with STOP function, equipped with low-wear stainless steel components (rustproof) and a quick-release valve for reliable and long-lasting performance.
Accesories TW1530MP
The original TWIN BUSCH tire mounting wax TW1530MP makes mounting easier and supports subsequent dismounting.

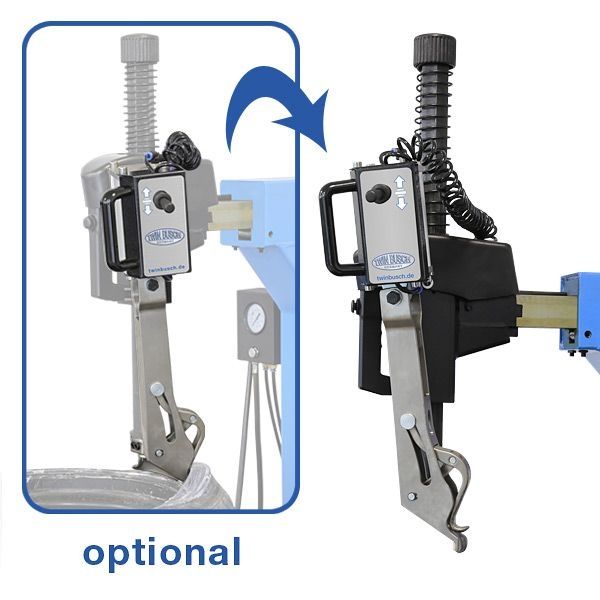

Accesories TWX-31H
The TWX-31H auxiliary mounting arm serves as an auxiliary mounting arm for your TWX-31. The auxiliary arm has a bead roller, a low-pressure roller, a plate, and a centering cone.

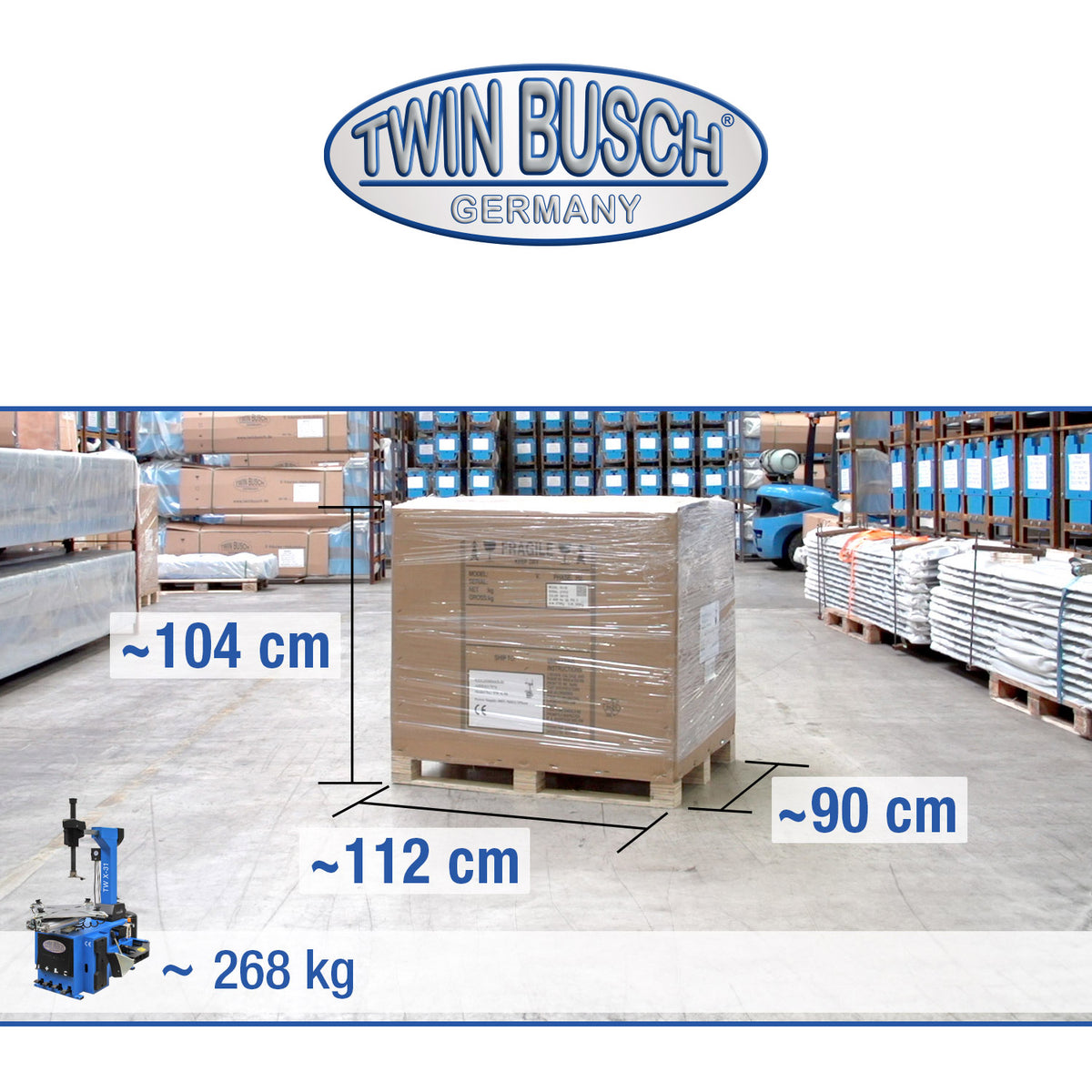

Product dimensions

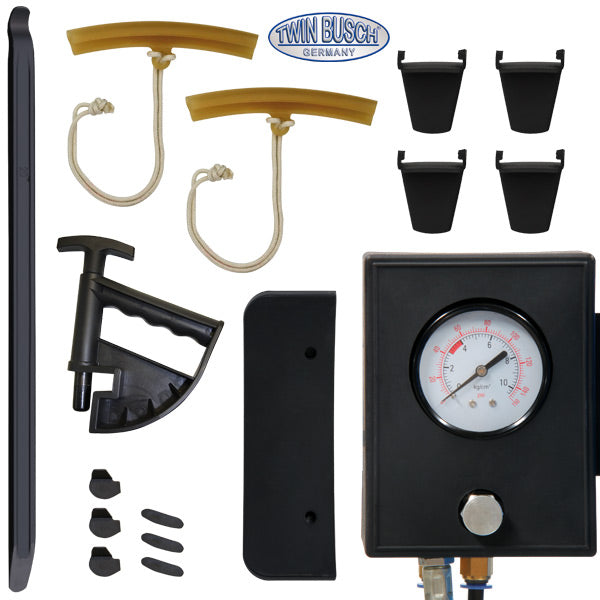

Scope of delivery
- Tire mounting machine with maintenance unit
- Tire inflator and tire iron
- Bead press
- Edge protection (2-piece)
- Plastic protective jaws for clamping jaws (4 pcs.)
- 3rd sentence Plastic glides for mounting head (alloy wheels)
- German operating and assembly instructions
- Online product video
- Online assembly video
- FREE online e-learning videos
