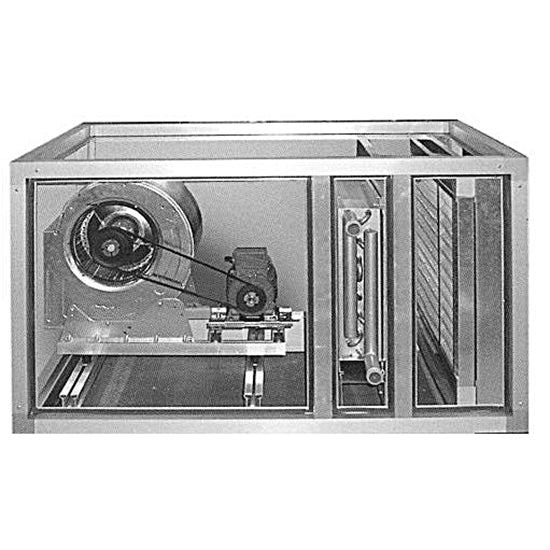

Structure made of aluminum profiles. Double-walled panels made of plastic-coated zinc sheet, heat and sound insulated by internal polyurethane insulation. Removable panel on the drive side. Double-sided intake radial fan. Three-phase motor: 400/3/50 IP 55, 2 speeds, tension pulley for drive belt. Drive by belt and pulleys, dynamically insulated by means of elastic suspension. Water heat exchanger, copper-aluminum type. Synthetic pleated filter, 85% gravimetric efficiency (G3).
Technical data
Net width (mm): 2009
Net length (mm): 1350
Net height (mm): 1200
Weight (kg): 220.00
Connection type: electrical
Volts (V): 380-415
Frequency (Hz):
50
Phase: 3F+N
Total electrical power (kW): 1,400/4,100
